Be quiet! BL094 Fan 120×120×25 SilentWings 4 PWM High-Speed
|
21,74 EUR |
|
|
( 25,87 EUR incl. VAT ) ≈ £18.20 | ≈ $23.89 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1205806 |
| Mfg Part No: | BL094 |
| UPC/EAN: | 4260052188866 |
| Weight: | 0.35 kg |
| Type: | CPNT |
Product information for Be quiet! BL094:
Applications
This fan is specifically designed for applications requiring high air pressure values, such as cooling systems with radiators or heatsinks. It is particularly suitable for high-end PC builds and advanced gaming systems, where efficient heat dissipation is required alongside low noise levels. The construction with a small gap between the fan edge and frame ensures maximum airflow and minimizes air turbulence, increasing efficiency.
Features and Equipment in Detail

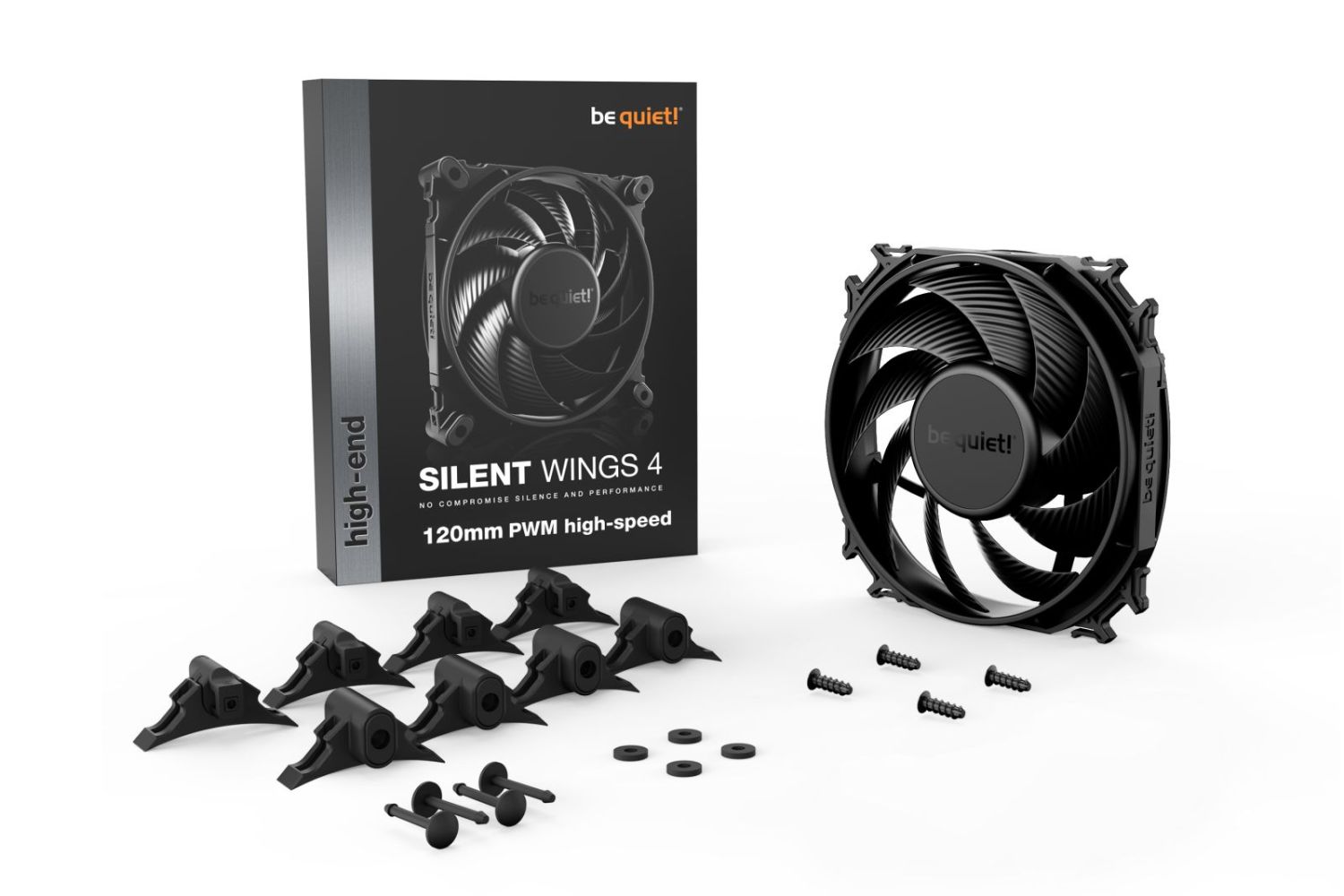

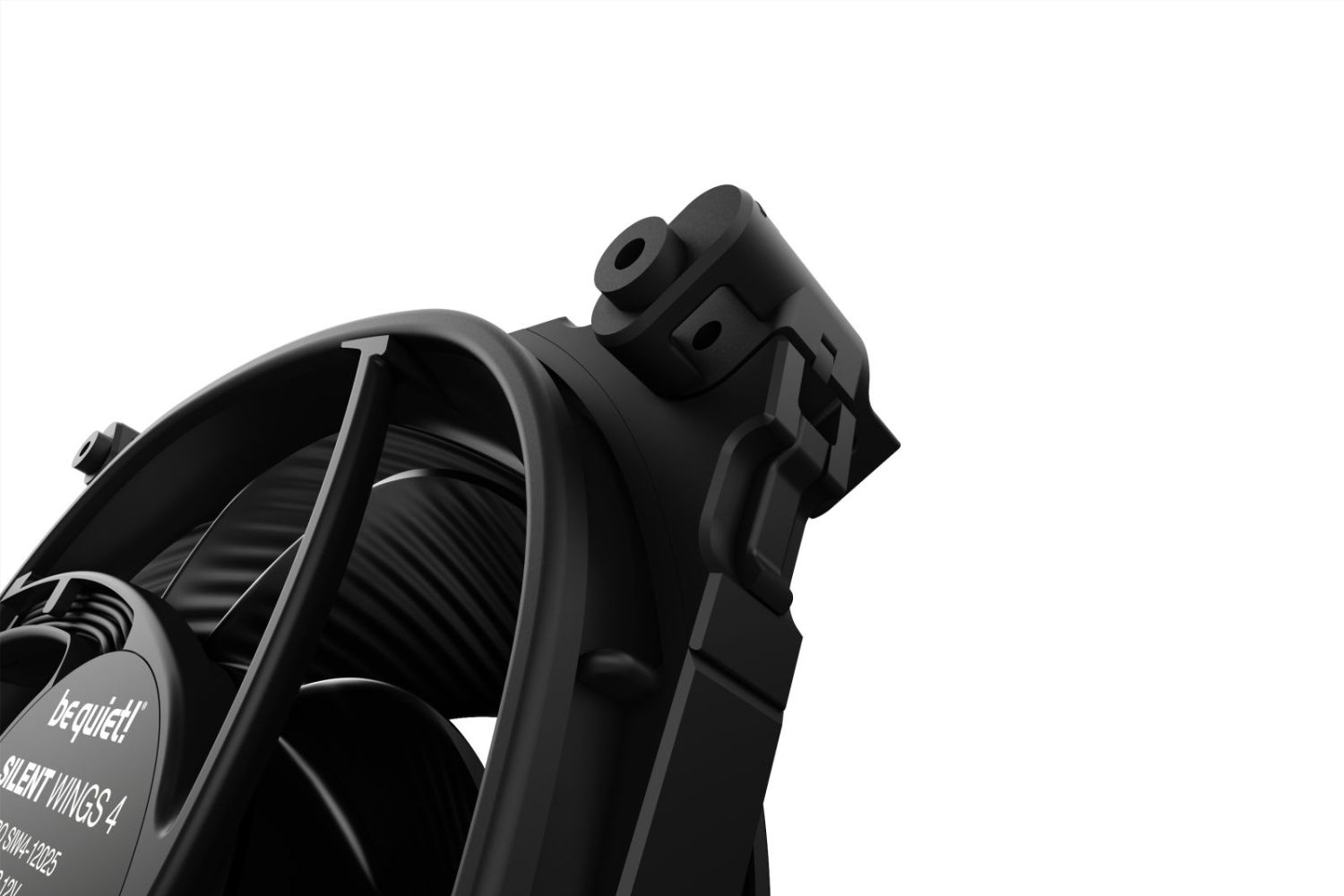

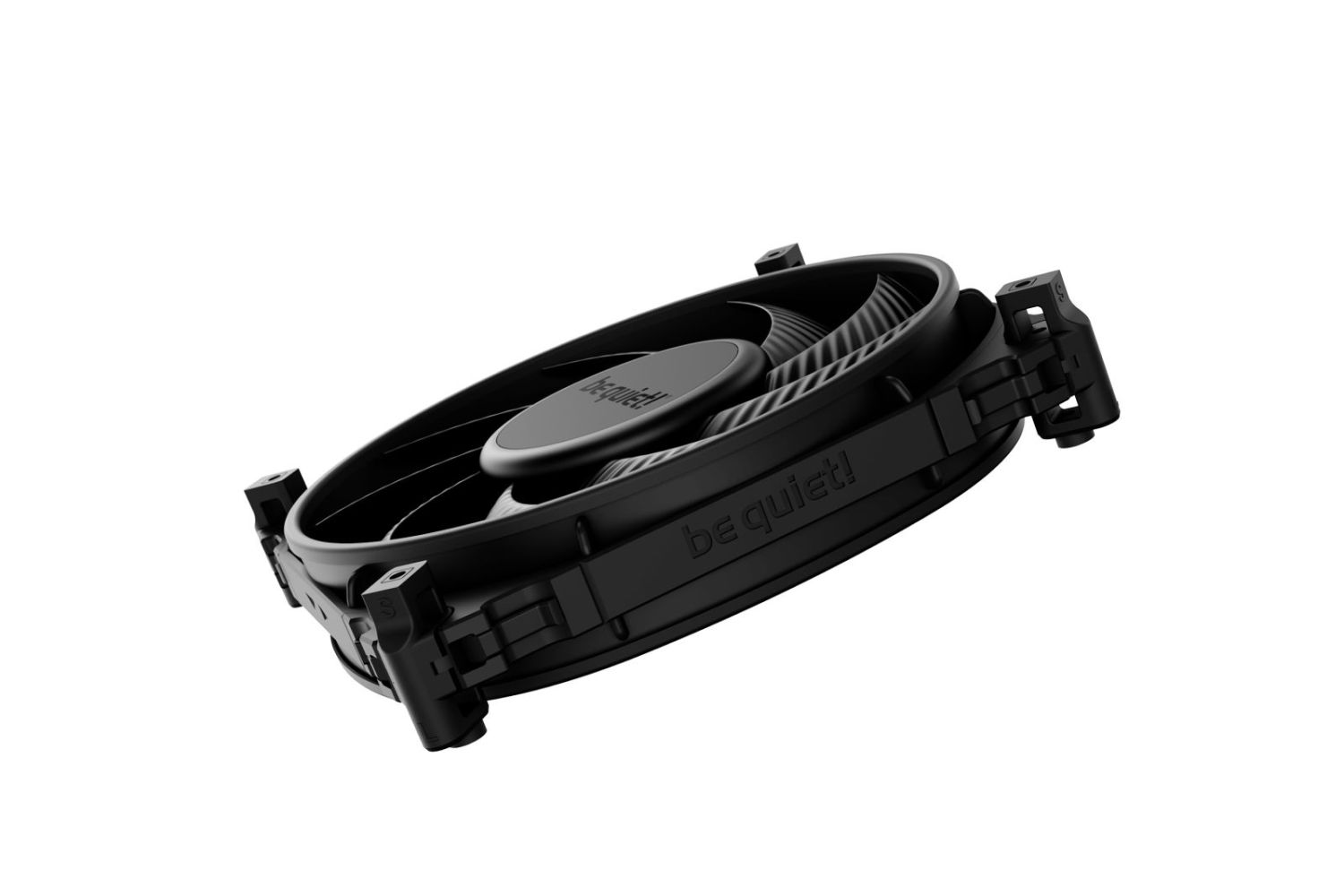

The fan features a 6-pole motor technology that reduces power consumption and vibrations. The fan blades are designed to optimally direct airflow onto radiators and heatsinks. Mounting is possible via two different methods: an anti-vibration mounting with rubber elements and push-pins, or an alternative screw mounting. The rubber elements are internally labeled and can be installed in two positions: in the L" direction, they create a 1 mm gap between the case and fan frame, enabling maximum decoupling and reduced vibrations. In the "S direction, the elements sit flush, allowing for a more compact installation. The included mounting components consist of 4 screws and 4 clips for installation.
Technology Explained Simply
The fluid dynamic bearing (FDB) ensures a particularly long service life and low friction, resulting in stable operation and low noise. PWM control allows precise adjustment of rotational speed according to current load, enabling the fan to run quieter at low loads and only reach maximum speed when high heat dissipation is required. The voltage range of 5 to 13.2 V makes the fan compatible with various power supplies, with a nominal voltage of 12 V. The cable length is 0.5 m, sufficient for most standard PC cases.
Compatibility and Accessories
The fan is designed for use in computer cases, radiators, and heatsinks. It features a 4-pin connector that can be connected to most modern motherboards and power supplies. The mounting options with anti-vibration mounting and screws allow for flexible installation in various case configurations. The included mounting components are sufficient for standard installation.
Installation and Mounting
Mounting can be done either via the anti-vibration mounting with push-pins or using the included screws. For anti-vibration mounting, the rubber elements are inserted into the designated holders, with positioning (L" or "S) chosen according to the desired decoupling. The push-pins are then inserted into the case holes, and the fan is placed on top. Alternatively, the included screws can be used to directly screw the fan into place. Installation is simple and requires no additional tools.
Operational Advantages
The fan offers an excellent combination of high air pressure performance and low noise level, making it particularly suitable for systems with high thermal demands. The long service life of up to 300,000 hours at 25 °C reduces maintenance requirements. PWM control enables intelligent speed adjustment, allowing the fan to run quieter at idle and only reach maximum performance when needed. The anti-vibration mounting minimizes noise caused by mechanical vibrations. The black color and high-quality design blend seamlessly into modern PC builds.
Certification
The fan complies with certifications CE, ROHS, RU, UKCA, TÜV, and WEEE, confirming conformity with European and international safety and environmental standards. The warranty is 5 years for end consumers, provided the purchase was made from an authorized be quiet! dealer and a purchase receipt is presented. The warranty is void in case of tampering, structural modifications, or damage caused by external mechanical forces.
Product Color and Design

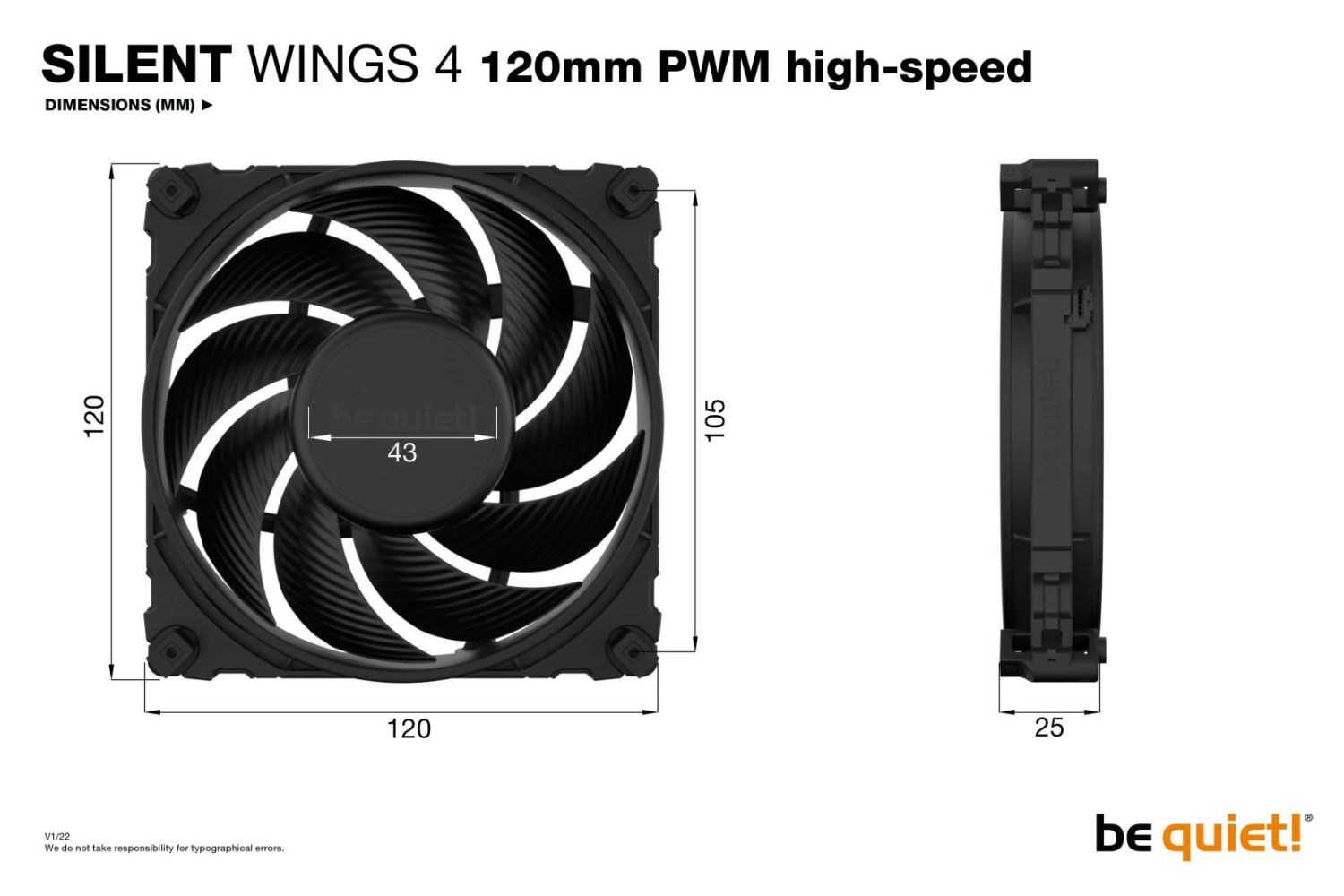

The fan is black and features a high-quality design with an all-black appearance. The fan blades and housing are in a uniform color tone, creating an aesthetically pleasing look. Dimensions are 120 mm (width) × 120 mm (depth) × 25 mm (height), and the weight is 190 g. The cable length is 0.5 m.
Certifications
CE, ROHS, RU, UKCA, TÜV, WEEE
Warranty
5-year manufacturer warranty for end consumers (only for first purchase from authorized dealer, purchase receipt required). Warranty void in case of tampering, structural modifications, or external mechanical damage.
Certifications
CE, ROHS, RU, UKCA, TÜV, WEEE
Warranty
5-year manufacturer warranty for end consumers (only for first purchase from authorized dealer, purchase receipt required). Warranty void in case of tampering, structural modifications, or external mechanical damage.
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Display type | Not applicable |
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
| Illumination LED | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Products per shipping (inner) case | 40 pc(s) |
| Shipping (inner) case width | 38.7 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case height | 37.5 cm |
| Shipping (inner) case gross weight | 15 kg |
| Other features | |
| Country of origin | China |
| Packaging content | |
| Number of screws | 4 |
| Number of clips | 4 |
| Screws included | |
| Performance | |
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Rotational speed (max) | 2500 RPM |
| Noise level (high speed) | 31.2 dB |
| Maximum airflow | 76.7 cfm |
| Airflow | 130.31 m³/h |
| Maximum air pressure | 3.96 mmH2O |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 300000 h |
| Pulse-width modulation (PWM) support | |
| Power | |
| Power consumption (typical) | 2.4 W |
| Voltage | 5 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.2 A |
| Maximum current | 0.22 A |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 190 g |
| Cable length | 0.5 m |
| Package width | 141 mm |
| Package depth | 192 mm |
| Package height | 31 mm |
| Package weight | 346 g |
