Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM

Your rating:
Average rating
product review for Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM
( 5 / 5 ) 1 ratings
Be quiet! BL093
This image may differ from the desired article.
Be quiet! BL093Be quiet! BL093Be quiet! BL093Be quiet! BL093Be quiet! BL093
21,73 EUR 21,78 EUR
( 25,86 EUR incl. VAT )
≈ £18.19  |  ≈ $23.88
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >100 pieces
1x Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM
Datasheet:file_download Download
Lieske Part No.:2019492
Mfg Part No: BL093
UPC/EAN: 4260052188859
Weight:0.35 kg
Type:CPNT

Product information for Be quiet! BL093:

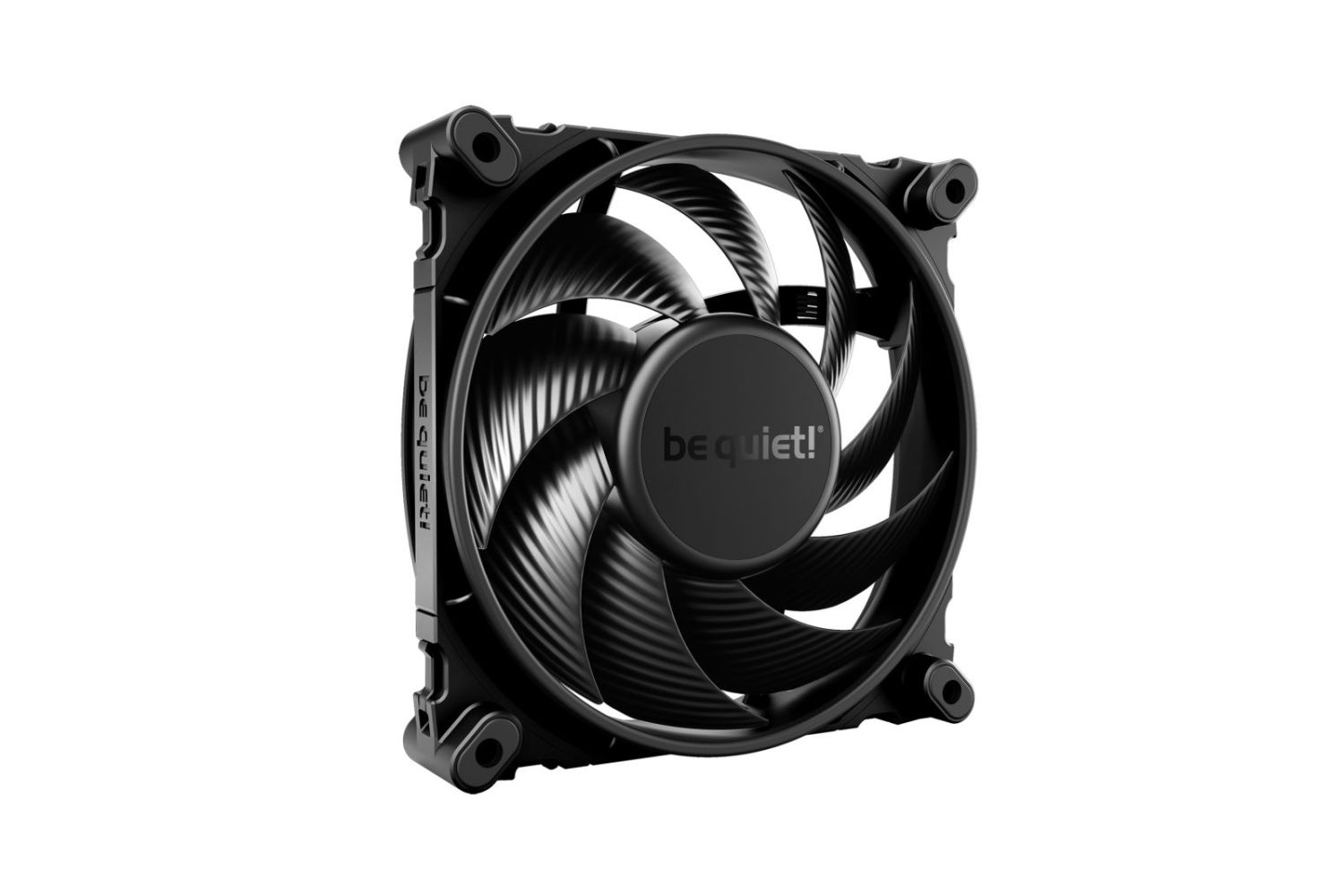

The be quiet! SilentWings 4 120mm PWM fan (type CPNT, manufacturer number BL093) is a computer case-compatible fan designed for use in PC cases, radiators, and heatsinks. It features an optimized fan geometry and a fluid dynamic bearing (FDB) that ensures a high service life of up to 300,000 operating hours. The fan has a 4-pin connector that supports pulse width modulation (PWM), allowing the rotational speed to be adjusted according to the specific cooling requirements. The maximum rotational speed is 1600 rpm, achieving an airflow of 82.74 m³/h (48.7 cfm) at full speed. The maximum air pressure is 1.79 mmH2O, making it suitable for applications with increased resistance, such as in radiators. The noise level at maximum speed is 18.9 dB(A), enabling very quiet operation even under load. The nominal voltage is 12 V, with an operating voltage range between 5 V and 13.2 V. The power consumption in standard operation is 1.44 W at a nominal current of 0.12 A. The fan measures 120 mm (width) × 120 mm (depth) × 25 mm (height) and weighs 190 g. The cable has a length of 0.5 m.

Applications

The fan is primarily designed for use in computer cases, particularly in high-end PC builds and advanced gaming systems. It is also suitable for heatsinks and radiators where high air pressure and low noise emission are required. The optimized fan blades and the small gap between the frame and blade ends ensure maximum performance with minimal air resistance. The construction with a funnel-shaped outlet in the frame increases air pressure and improves efficiency in cooling heat conductors.

Features and Equipment in Detail

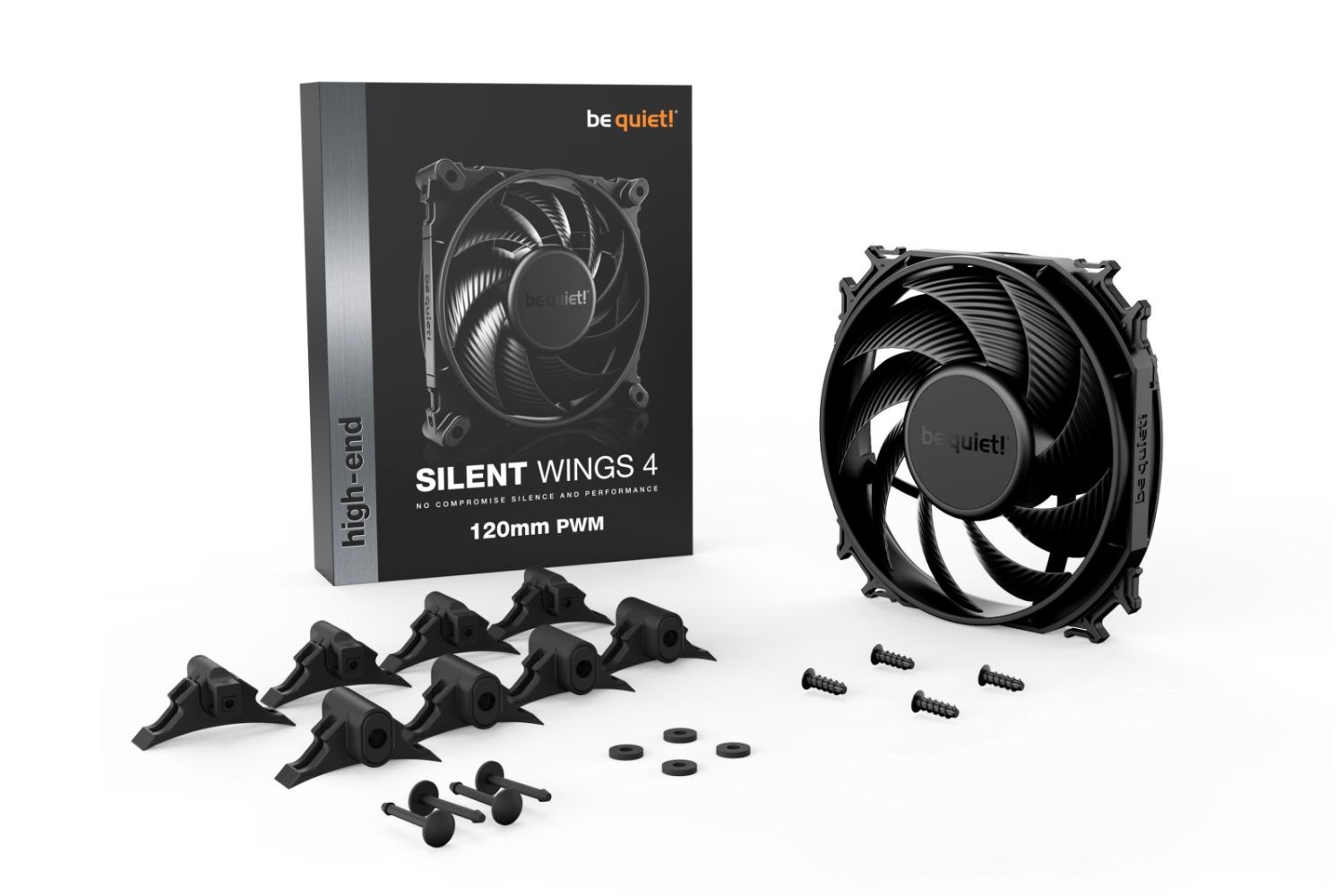

The fan features a fluid dynamic bearing (FDB), which ensures a long service life and low vibrations. The 6-pole motor construction reduces power consumption and vibrations during operation. Mounting is possible via two different methods: either using the included hard plastic clip elements with push pins or via screws. The anti-vibration mounting elements are internally labeled and can be installed in two positions: in the L" position, a 1 mm air gap between the case and fan frame creates maximum decoupling, while the "S position allows for a flush fit. The delivery includes 4 screws and 4 clips for mounting.

Technology Explained Simply

Pulse width modulation (PWM) enables precise control of the fan speed via the motherboard, allowing cooling performance to be dynamically adjusted to the system temperature. The fluid dynamic bearing (FDB) reduces friction and vibrations, resulting in a longer service life and quieter operation. The optimized fan blades and the small gap between the frame and blade ends ensure efficient airflow and maximize air pressure, which is particularly beneficial for cooling radiators or dense heatsinks. The cable length of 0.5 m allows for flexible placement within the case.

Compatibility and Accessories

The fan is designed for standard PC cases and heatsinks. The 4-pin connector is compatible with modern motherboards that support PWM control. The included mounting elements (hard plastic clips and screws) allow for flexible installation. The accessory list in the datasheet also mentions a SATA multi-voltage adapter, which is not part of this product.

Mounting and Installation

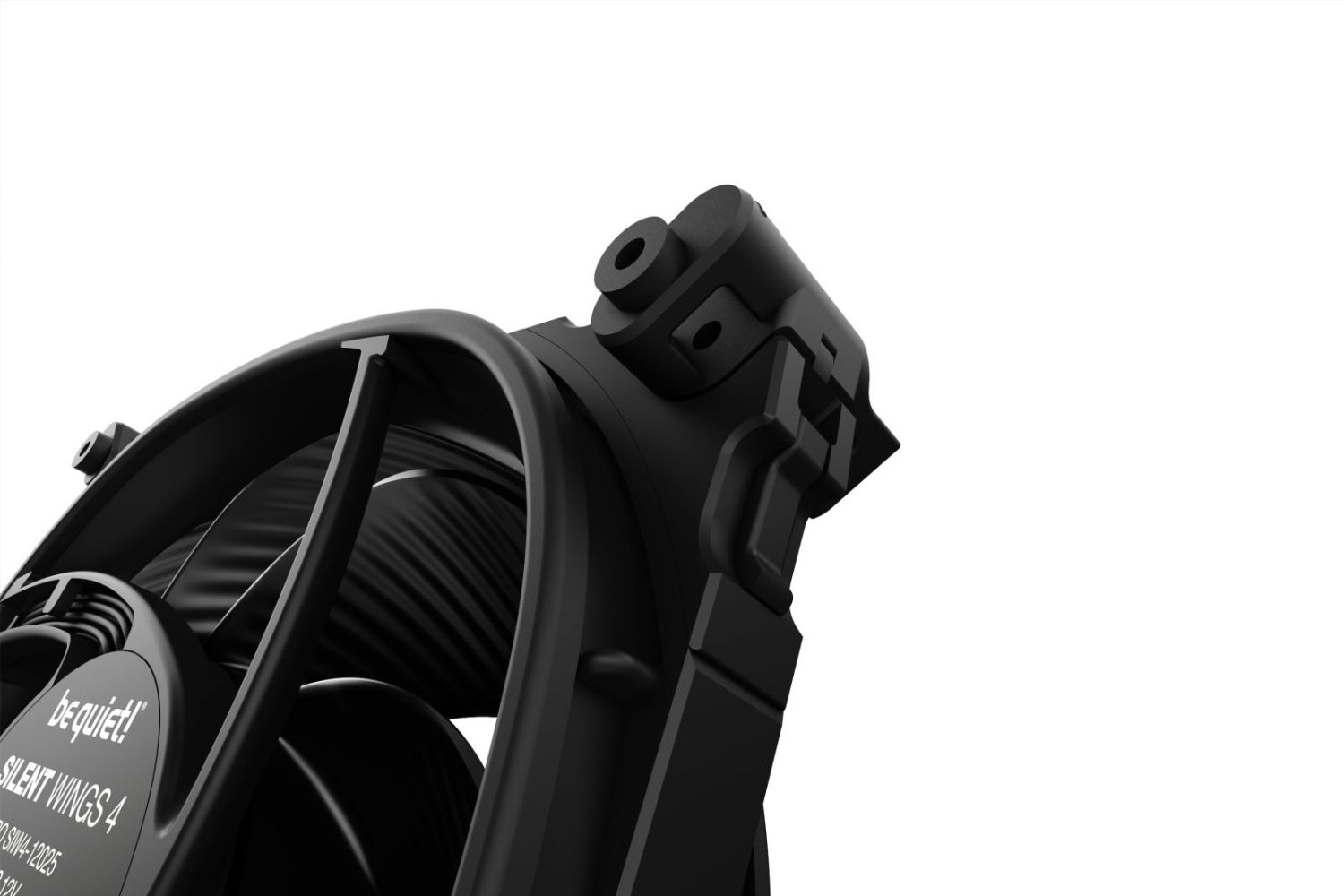

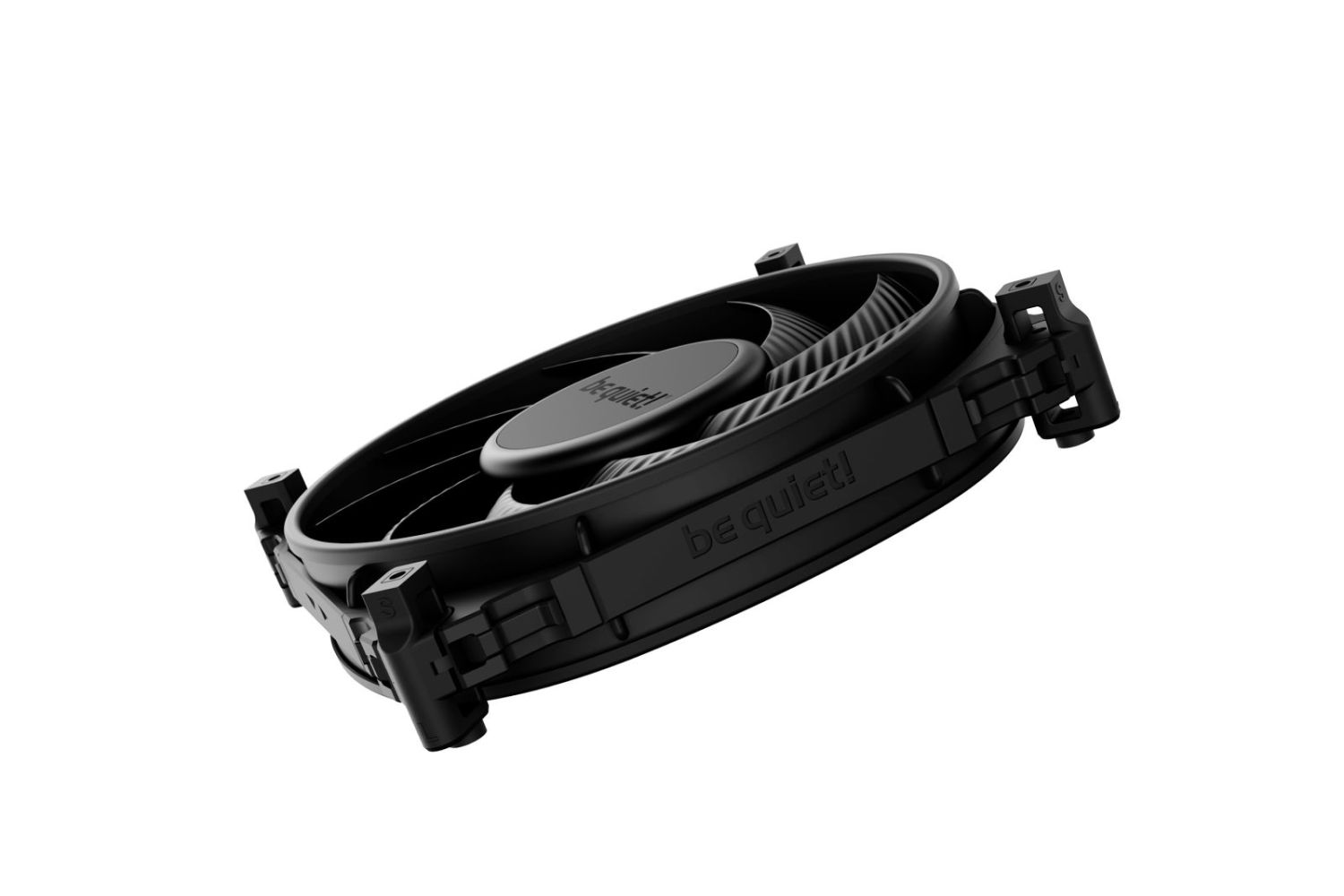

Mounting is done either using the included hard plastic clips with push pins or via screws. For clip mounting, the plastic element is inserted from above onto the snap connector and then secured with the push pins. To remove, press the latching noses on the right and left sides downward and pull the mounting element upward. Screw mounting is done directly through the pre-drilled holes in the case. The anti-vibration elements can be installed in either L" or "S position as needed to minimize vibrations or achieve a flush fit.

Operational Advantages

The fan offers an excellent combination of high air pressure performance and low noise level. PWM control enables intelligent adjustment of rotational speed according to system load, allowing the fan to operate very quietly at idle. The fluid dynamic bearing ensures a long service life and minimizes vibrations. The mounting options provide flexibility during installation, and the anti-vibration elements reduce noise caused by mechanical vibrations. The black color design and high-quality appearance integrate well into modern PC systems.

Certifications

The fan complies with CE, RoHS, RU, UKCA, TÜV, and WEEE certifications, confirming conformity with European and international safety and environmental standards. The warranty is 5 years for end consumers, provided the purchase is made from an authorized be quiet! dealer and the purchase receipt is presented. Any modifications or structural changes will void the warranty.

Product Type, Core Function, Technology, Standard

The product is a fan for use in computer cases, radiators, and heatsinks. The core function is air circulation for cooling electronic components. The technology is based on a fluid dynamic bearing (FDB) and PWM control. The standard includes CE, RoHS, WEEE, UKCA, TÜV, and RU.

Design
Product colourBlack
Fan connector4-pin
CertificationCE / ROHS / RU / UKCA / TÜV / WEEE
Logistics data
Harmonized System (HS) code84733080
Products per shipping (inner) case40 pc(s)
Shipping (inner) case width38.7 cm
Shipping (inner) case length43.2 cm
Shipping (inner) case height37.5 cm
Shipping (inner) case gross weight14.9 kg
Other features
Country of originChina
Packaging content
Number of screws4
Number of clips4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter12 cm
Rotational speed (max)1600 RPM
Noise level (high speed)18.9 dB
Maximum airflow48.7 cfm
Airflow82.74 m³/h
Maximum air pressure1.79 mmH2O
Bearing typeFluid Dynamic Bearing (FDB)
Quantity per pack1 pc(s)
Mean time between failures (MTBF)300000 h
Pulse-width modulation (PWM) supportYes
Power
Power consumption (typical)1.44 W
Voltage5 - 13.2 V
Rated voltage12 V
Rated current0.12 A
Maximum current0.13 A
Technical details
Compliance certificatesCE, RoHS, WEEE
Weight & dimensions

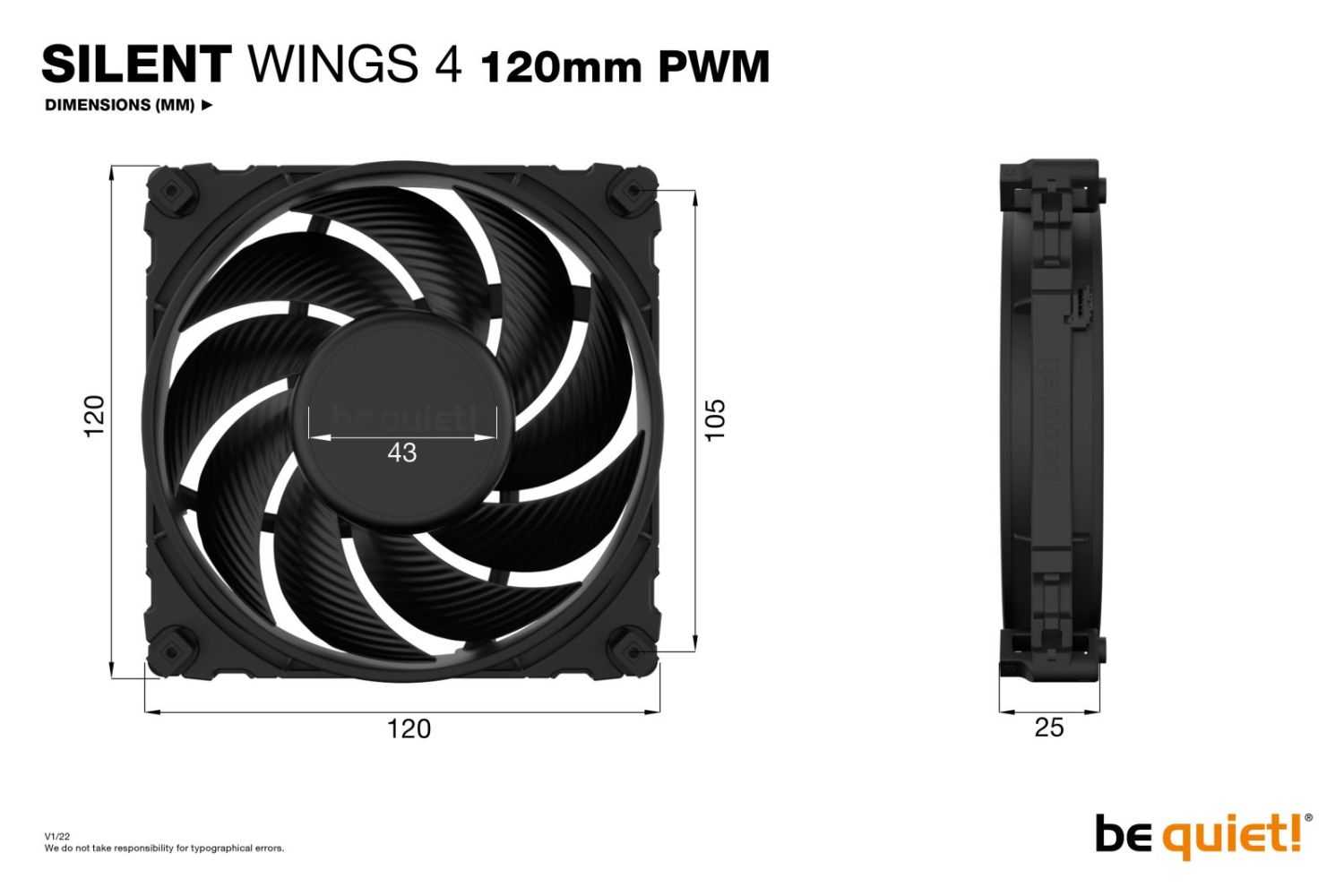

Width120 mm
Depth120 mm
Height25 mm
Weight190 g
Cable length0.5 m
Package width141 mm
Package depth192 mm
Package height31 mm
Package weight343 g


Product data sheet
Datasheet for Be quiet! BL093, EAN: 4260052188859

Questions & answers

What is the delivery time of Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM ?

The article Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Be quiet! BL093 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM always at the best possible price. We can give you a discount of 2% on Be quiet! BL093 Fan 120×120×25 SilentWings 4 PWM if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
