Barix 2005.9048 IO12 -
|
223,75 EUR |
|||||||||||
|
( 266,26 EUR incl. VAT ) ≈ £186.61 | ≈ $249.93 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 292718 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2005.9048 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
| Type: | IO12 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Data Acquisition and Control from BarixFurther products in category Data Acquisition and Control
All products of Barix
Product information for Barix 2005.9048:

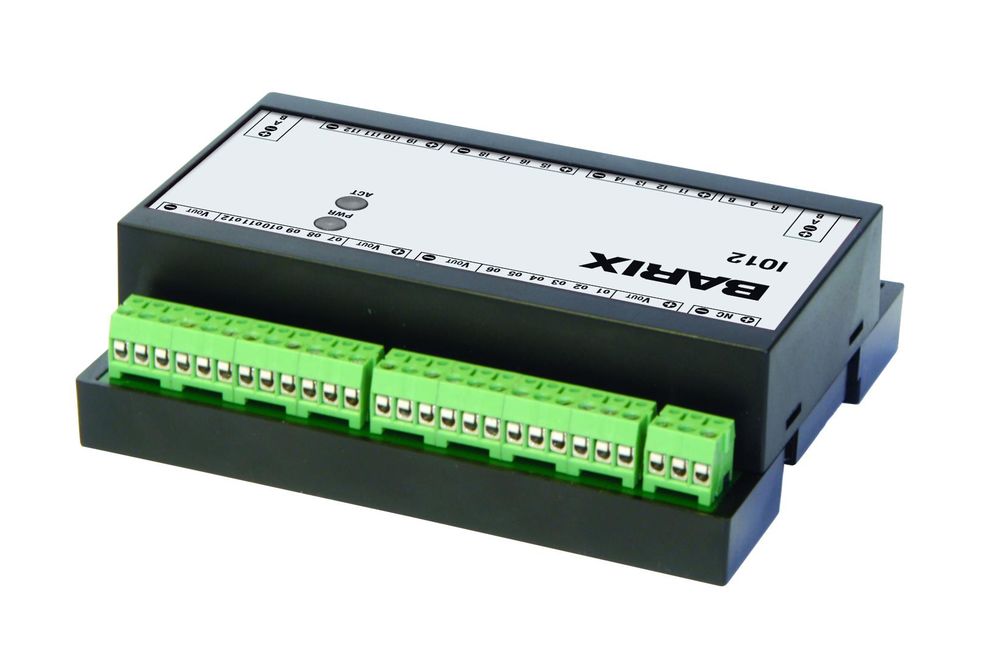

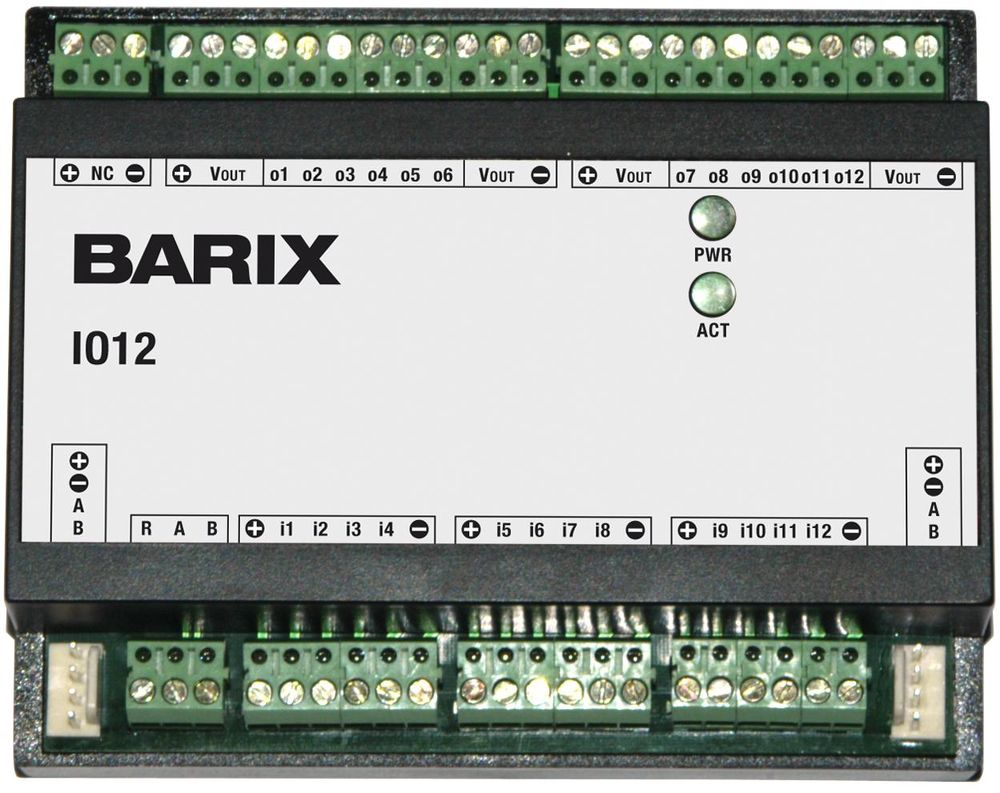

The Barix IO12 is an industrial I/O extension for DIN rail mounting, designed for communication with a host system via Modbus/RTU interface. The device serves data acquisition and control in automation environments and enables control of 12 outputs as well as querying of 12 inputs via serial commands. The IO12 is designed for use in industrial installations, particularly in systems for voice evacuation, where reliable and energy-efficient control is required.
Applications
The Barix IO12 is used in industrial control systems, particularly in voice evacuation systems, where it is employed to control relays and acquire signals from sensors or switches. The universal design allows integration into existing automation architectures that communicate via Modbus/RTU. DIN rail mounting facilitates installation in enclosures and enables compact placement alongside other control components.
Functions and Equipment in Detail
The device features 12 optically isolated inputs, ensuring galvanic isolation between the device and connected sensors or switches. This protects the IO12 from disturbances caused by voltage spikes or electrical interference. The 12 outputs are configured as current sourcing outputs, meaning they can supply current to the load when a signal is active. Control is performed via Modbus/RTU commands transmitted over the integrated RS-485 serial interface. This interface is suitable for industrial environments, offering high noise immunity and longer transmission distances.
Technology Explained Simply
The IO12 operates with a supply voltage range of 9 to 30 volts, allowing flexible adaptation to various industrial power supplies. The power-saving functions ensure that the device's active power remains low even when all relays are activated. This is particularly important in installations that operate over extended periods and require energy-efficient operation. Communication occurs via Modbus/RTU, a widely used protocol in automation technology, enabling easy integration into existing systems.
Compatibility and Accessories
The Barix IO12 is compatible with host systems supporting Modbus/RTU. Communication takes place via the RS-485 interface, which is standard in many industrial control systems.
Mounting and Installation
The IO12 is designed for DIN rail mounting, enabling quick and secure installation in enclosures. The connections for inputs and outputs are designed for interfacing with industrial sensors and actuators. The serial interface is connected to the host system via an RS-485 cable. Installation requires no special tools, and electrical connections are made using standard plug connectors.
Advantages in Operation
The IO12 provides a reliable and energy-efficient control solution for industrial applications. Optical isolation of the inputs increases noise immunity, while power-saving functions minimize energy consumption. Modbus/RTU compatibility enables easy integration into existing systems, and DIN rail mounting simplifies installation and maintenance. The device is developed for use in voice evacuation systems, where stable and low-maintenance control is required.
Applications
The Barix IO12 is used in industrial control systems, particularly in voice evacuation systems, where it is employed to control relays and acquire signals from sensors or switches. The universal design allows integration into existing automation architectures that communicate via Modbus/RTU. DIN rail mounting facilitates installation in enclosures and enables compact placement alongside other control components.
Functions and Equipment in Detail
The device features 12 optically isolated inputs, ensuring galvanic isolation between the device and connected sensors or switches. This protects the IO12 from disturbances caused by voltage spikes or electrical interference. The 12 outputs are configured as current sourcing outputs, meaning they can supply current to the load when a signal is active. Control is performed via Modbus/RTU commands transmitted over the integrated RS-485 serial interface. This interface is suitable for industrial environments, offering high noise immunity and longer transmission distances.
Technology Explained Simply
The IO12 operates with a supply voltage range of 9 to 30 volts, allowing flexible adaptation to various industrial power supplies. The power-saving functions ensure that the device's active power remains low even when all relays are activated. This is particularly important in installations that operate over extended periods and require energy-efficient operation. Communication occurs via Modbus/RTU, a widely used protocol in automation technology, enabling easy integration into existing systems.
Compatibility and Accessories
The Barix IO12 is compatible with host systems supporting Modbus/RTU. Communication takes place via the RS-485 interface, which is standard in many industrial control systems.
Mounting and Installation
The IO12 is designed for DIN rail mounting, enabling quick and secure installation in enclosures. The connections for inputs and outputs are designed for interfacing with industrial sensors and actuators. The serial interface is connected to the host system via an RS-485 cable. Installation requires no special tools, and electrical connections are made using standard plug connectors.
Advantages in Operation
The IO12 provides a reliable and energy-efficient control solution for industrial applications. Optical isolation of the inputs increases noise immunity, while power-saving functions minimize energy consumption. Modbus/RTU compatibility enables easy integration into existing systems, and DIN rail mounting simplifies installation and maintenance. The device is developed for use in voice evacuation systems, where stable and low-maintenance control is required.
| General | |
| Number of inputs | 12 |
| Power saving functions | |
Questions & answers
What is the delivery time of Barix 2005.9048 IO12 - ?
The article Barix 2005.9048 IO12 - is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Barix 2005.9048 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Barix 2005.9048 IO12 - always at the best possible price. We can give you a discount of 2% on Barix 2005.9048 IO12 - if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Barix 2005.9048 IO12 - we can offer you a price of 206,97 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
