Bals 895347 VARIABOX-S
|
476,88 EUR |
|
|
( 567,49 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 469363 |
|---|---|
| Mfg Part No: | 895347 |
| UPC/EAN: | 4024941322577 |
| Weight: | 0.12 kg |
Further CEE form connectors / combinations from BALSFurther products in category CEE form connectors / combinations
All products of BALS
Product information for BALS 895347:

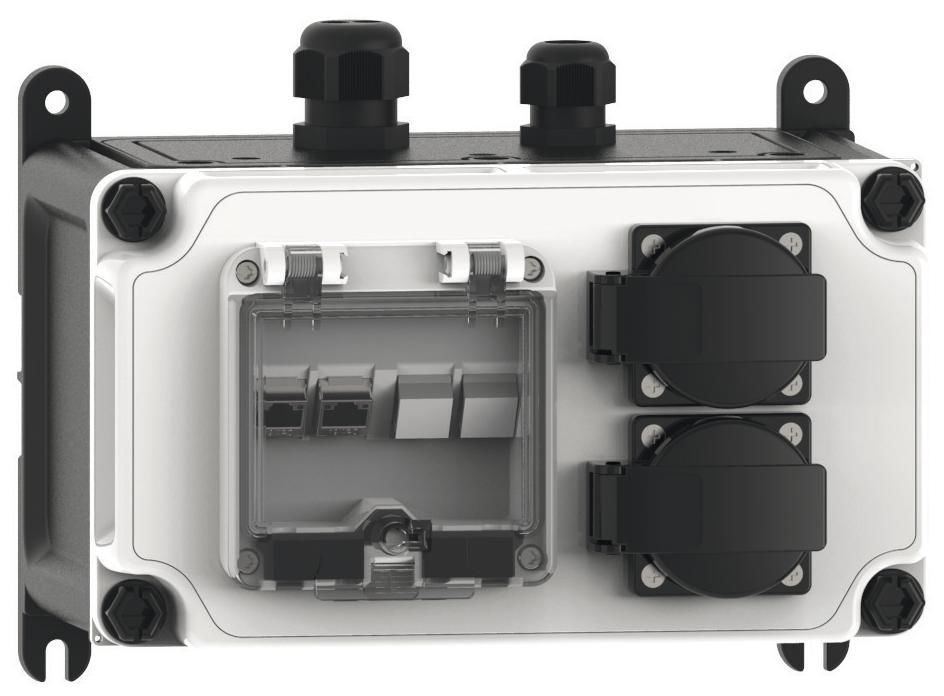

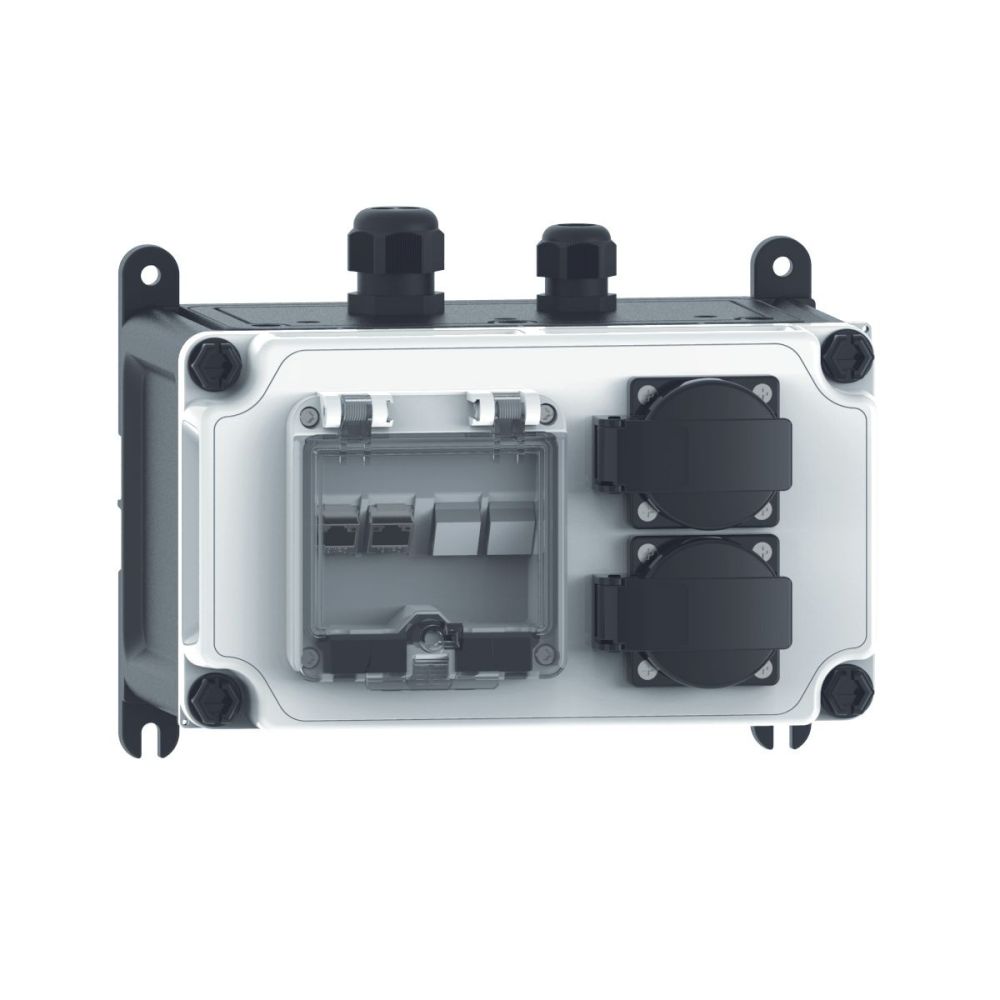

VARIABOX - S
Standard: DIN EN 61439-2
Protection class: IP54
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening
Upper part straight and hinged at the side
Cover screws captive
Device color: lower part of the housing black, similar to RAL 9017, upper part of the housing grey RAL 7035
Device height: 130 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 1
InA: 16
Equipment:
2 x earthed socket 16A 230V IP54 black
1 x data operating flap with 2 x RJ45 CAT 6a BTR
lockable with lock set type 58037
Securing/protective measure:
none
Cable entry/connection option:
1 x cable gland M20 top black
1 x cable gland M25 top
with multiple sealing insert 2x8 mm
1 x M20, 1 x M25 below
1 x terminal block 3 x 6 mm²
Additional information:
Wired and ready for connection.
Type: 895347
Standard: DIN EN 61439-2
Protection class: IP54
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening
Upper part straight and hinged at the side
Cover screws captive
Device color: lower part of the housing black, similar to RAL 9017, upper part of the housing grey RAL 7035
Device height: 130 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 1
InA: 16
Equipment:
2 x earthed socket 16A 230V IP54 black
1 x data operating flap with 2 x RJ45 CAT 6a BTR
lockable with lock set type 58037
Securing/protective measure:
none
Cable entry/connection option:
1 x cable gland M20 top black
1 x cable gland M25 top
with multiple sealing insert 2x8 mm
1 x M20, 1 x M25 below
1 x terminal block 3 x 6 mm²
Additional information:
Wired and ready for connection.
Type: 895347
Questions & answers
What is the delivery time of Bals 895347 VARIABOX-S?
The article Bals 895347 VARIABOX-S is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 895347 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 895347 VARIABOX-S always at the best possible price. We can give you a discount of 2% on Bals 895347 VARIABOX-S if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
