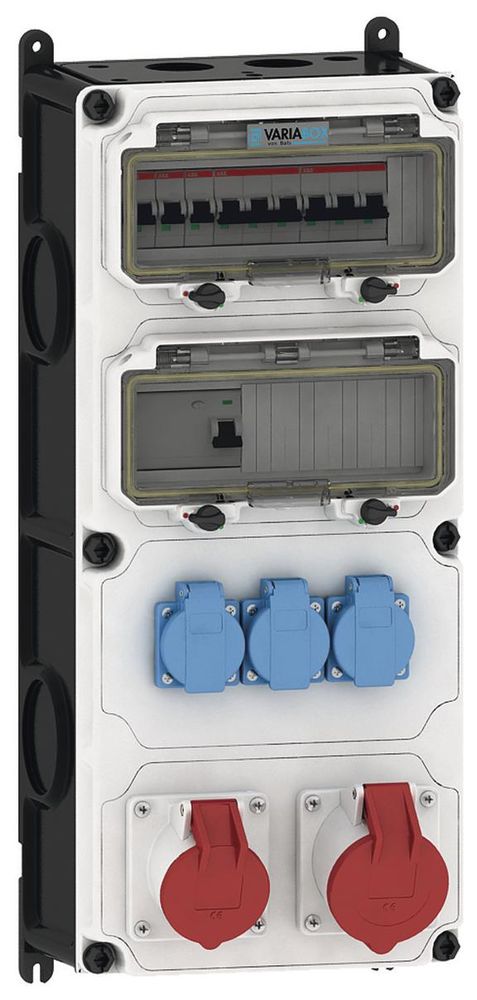

Bals 893562 VARIABOX-XL Plus IP54 3xStd. CEE16/32A TE 3C16 1p C16/32 3p Fi63 all.
|
2.310,66 EUR |
|
|
( 2.749,69 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 110080 |
|---|---|
| Mfg Part No: | 893562 |
| UPC/EAN: | 4024941862714 |
| Weight: | 0.12 kg |
Product information for BALS 893562:
Standard: DIN EN 61439-3
Protection class: IP54
Housing:
high-quality, impact-resistant plastic housing (PBT)
high chemical resistance
sealable, with external and internal fastening
top section straight and hinged at the side
Protection mounted on a pull-out mounting rail
cover screws cannot be lost, protection elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower housing section black similar to RAL 9017, upper housing section grey RAL 7035
Device height: 520 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 0.65
InA: 63
Equipment:
3 x earthed socket 16A 230V IP54 blue
1 x CEE socket 16A 400V 5p 6h glv/Ni TE IP54 inclined
1 x CEE socket 32A 400V 5p 6h glv/Ni TE IP54 inclined
Fuse protection/protective measure:
3 x C-automatic 16A 1p
1 x C-automatic 16A 3p
1 x C-automatic 32A 3p
1 x FI-switch 63/0.03A 4p all-current sensitive type B
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: VARIABOX - XL Plus
