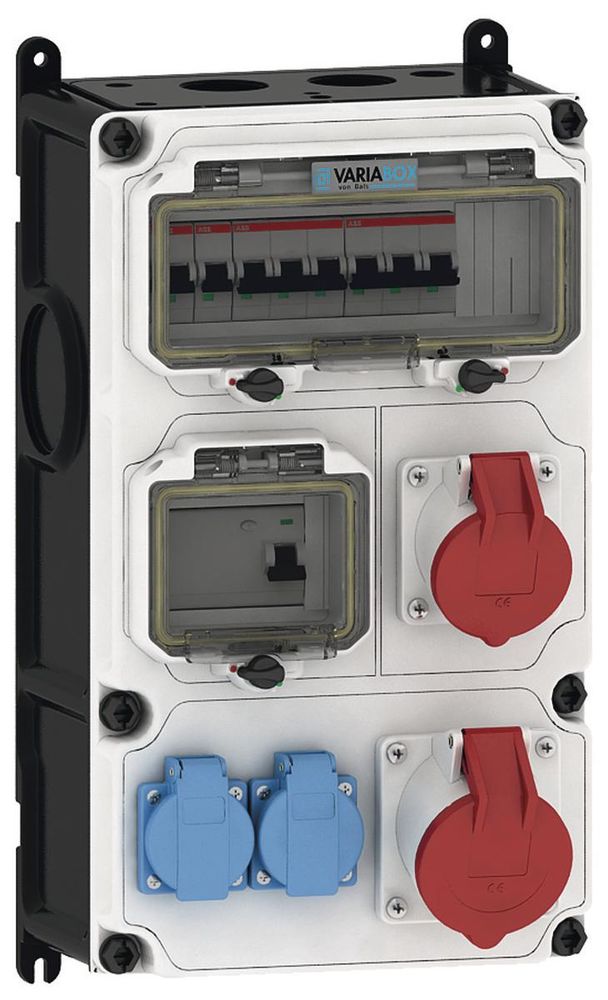

Bals 893552 VARIABOX-L IP44 2x socket 1CEE16/32A 2C16 1p 1C16/32 3p Fi63 all.
|
2.214,23 EUR |
|
|
( 2.634,93 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 469456 |
|---|---|
| Mfg Part No: | 893552 |
| UPC/EAN: | 4024941853408 |
| Weight: | 0.12 kg |
Product information for BALS 893552:
Standard: DIN EN 61439-3
Protection class: IP44
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening,
top section straight and hinged at the side,
protection mounted on a pull-out mounting rail,
cover screws captive, protection elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower housing section black, similar to RAL 9017, upper housing section grey RAL 7035
Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 0.58
InA: 63
Equipment:
2 x earthed socket 16A 230V IP44 blue
1 x CEE socket 16A 400V 5p 6h IP44 inclined
1 x CEE socket 32A 400V 5p 6h IP44 inclined
Fuse protection/protective measure:
2 x C-automatic 16A 1p
1 x C-automatic 16A 3p
1 x C-automatic 32A 3p
1 x FI-switch 63/0.03A 4p all-current sensitive type B
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
Additional information:
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Wired ready for connection.
Type: 893552
