Bals VARIABOX - L VARIABOX-L
|
1.901,39 EUR |
|
|
( 2.262,65 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 110085 |
|---|---|
| Mfg Part No: | 891664 |
| UPC/EAN: | 4024941944564 |
| Weight: | 0.12 kg |
Product information for BALS 891664:

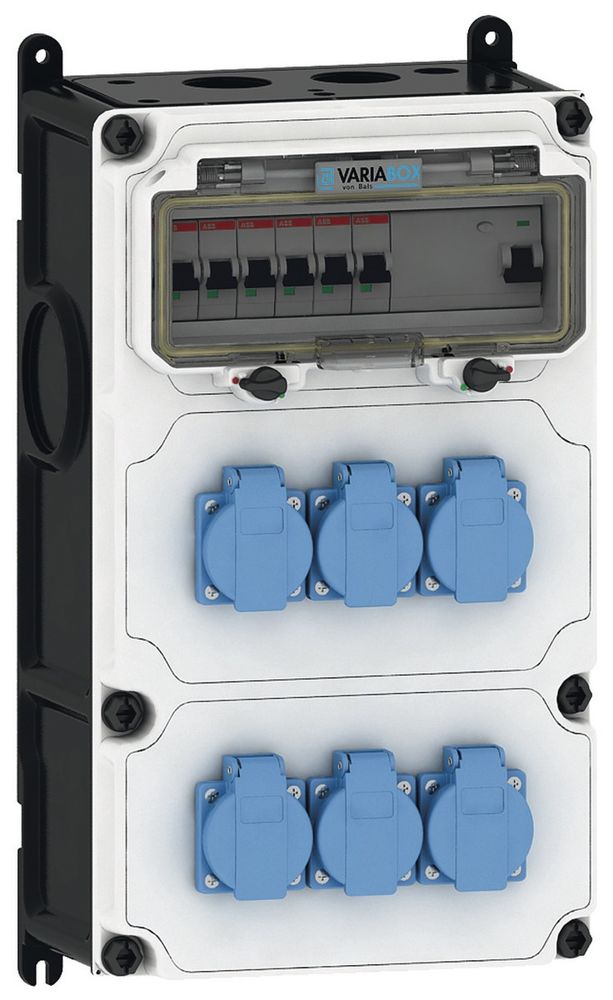

VARIABOX - L
Standard: DIN EN 61439-3
Protection class: IP44
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening
Upper part straight and hinged at the side
Protection mounted on a pull-out mounting rail
Cover screws captive, protection elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower part of the housing black, similar to RAL 9017, upper part of the housing gray RAL 7035
Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 0.7
InA: 32
Equipment:
6 x earthed socket 16A 230V IP44 blue
Protection/protective measure:
6 x C-automat 16A 1p
1 x residual current switch 40/0.03A 4p all-current sensitive type B
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: VARIABOX - L
Standard: DIN EN 61439-3
Protection class: IP44
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening
Upper part straight and hinged at the side
Protection mounted on a pull-out mounting rail
Cover screws captive, protection elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower part of the housing black, similar to RAL 9017, upper part of the housing gray RAL 7035
Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 0.7
InA: 32
Equipment:
6 x earthed socket 16A 230V IP44 blue
Protection/protective measure:
6 x C-automat 16A 1p
1 x residual current switch 40/0.03A 4p all-current sensitive type B
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: VARIABOX - L
Questions & answers
What is the delivery time of Bals VARIABOX - L VARIABOX-L?
The article Bals VARIABOX - L VARIABOX-L is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 891664 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals VARIABOX - L VARIABOX-L always at the best possible price. We can give you a discount of 2% on Bals VARIABOX - L VARIABOX-L if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
