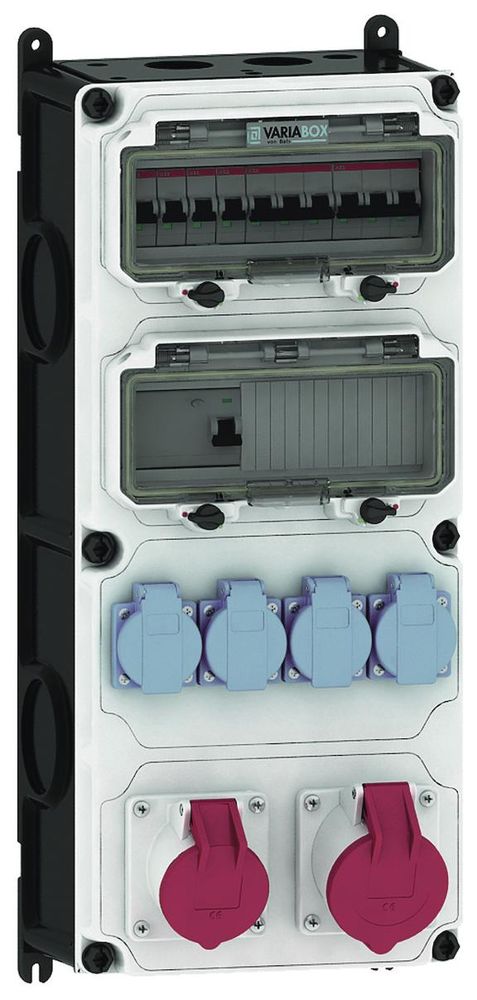

Bals 89101 socket combinations Variabox XL
|
1.129,45 EUR |
|||||||||||
|
( 1.344,05 EUR incl. VAT ) ≈ £945.35 | ≈ $1,263.85 plus delivery charges: 100,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 949294 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 89101 | ||||||||||
| UPC/EAN: | 4024941206815 | ||||||||||
| Weight: | 6.944 kg | ||||||||||
| Type: | 89101 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 89101:
Norm: DIN EN 61439
Schutzart: IP44
Gehäuse:
hochwertiges, schlagfestes Kunststoffgehäuse (PBT)
plombierbar, mit Außen und Innenbefestigung
Oberteil gerade und seitlich anscharniert
Absicherung auf vorziehbarer Tragschiene montiert
Deckelschrauben unverlierbar, Absicherungselemente
angeordnet unter durchsichtiger Betätigungsklappe
mit bedienerfreundlicher OTC Mechanik
(one touch close)
Gerätefarbe: Gehäuseoberteil grau RAL 7035, Gehäuseunterteil schwarz ähnlich RAL 9017
Gerätehöhe: 520 mm, Gerätebreite: 230 mm, Gerätetiefe: 145 mm
RDF-Faktor: 0,62
InA: 40
Bestückung:
4 x Schutzkontaktsteckdose 16A 230V IP44 blau
1 x CEE-Steckdose 16A 400V 5p 6h IP44 geneigt
1 x CEE-Steckdose 32A 400V 5p 6h IP44 geneigt
Absicherung/Schutzmaßnahme:
4 x C-Automat 16A 1p
1 x C-Automat 16A 3p
1 x C-Automat 32A 3p
1 x FI-Schalter 40/0,03A 4p
Leitungseinführung/Anschlussmöglichkeit:
1 x M12, 1 x M20, 2 x M40 oben
1 x M12, 1 x M20, 2 x M40 unten
1 x Zählerklemmstein 5x25 mm² / Typ: C (Schleifleitung)
Zusätzliche Informationen:
Anschlussfertig verdrahtet.
| General | |
| CEE socket outlet 16 A | 1x16A5p400V |
| CEE socket outlet 32 A | 1x32A5p400V |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Number of socket outlets with protective contact | 4 |
| number of socket outlets swiss standard type 13 | 0 |
| number of socket outlets swiss standard type 15 | 0 |
| number of socket outlets swiss standard type 23 | 0 |
| number of socket outlets swiss standard type 25 | 0 |
| Other fixtures and/or empty locations | 0 |
| Protection | Over current switch |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| Number of miniature circuit breakers | 6 |
| Power supply/connection possibility | 2 cables (ring line) |
| Type of mains connection | Other |
| Cable length | 0 |
| Handling | Wall mounting |
| Degree of protection (IP) | IP44 |
| Colour | Grey |
| Height | 520 |
| Width | 230 |
| Depth | 145 |
| Military model | |
