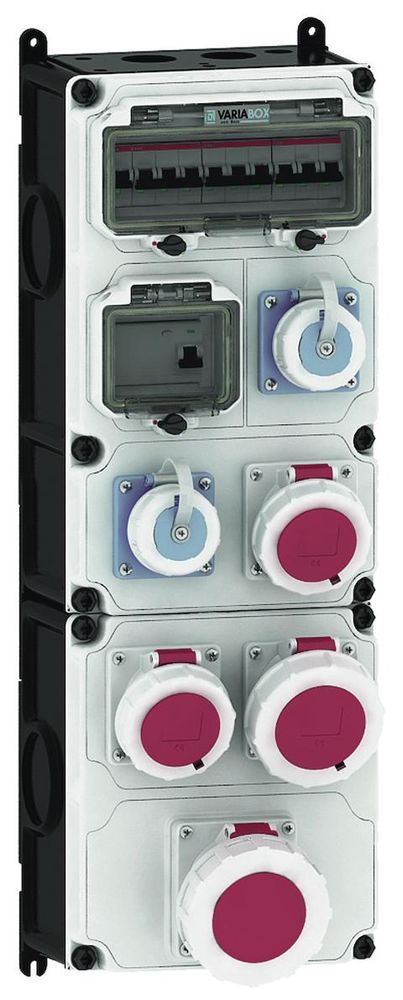

Bals 890939 VARIABOX XXL IP67
|
2.439,16 EUR |
|
|
( 2.902,60 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 468235 |
|---|---|
| Mfg Part No: | 890939 |
| UPC/EAN: | 4024941939317 |
| Weight: | 0.12 kg |
Product information for BALS 890939:
VARIABOX - XXL
Standard: DIN EN 61439
Protection class: IP67
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening,
top section straight and hinged at the side,
fuse mounted on a pull-out mounting rail,
cover screws captive, fuse elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower housing section black, similar to RAL 9017, upper housing section grey RAL 7035
Device height: 650 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 0.74
InA: 63
Equipment:
2 x earthed socket 16A 230V IP67 blue
2 x CEE socket 16A 400V 5p 6h IP67 inclined
1 x CEE socket 32A 400V 5p 6h IP67 inclined
1 x CEE socket 63A 400V 5p 6h IP67 inclined
Fuse protection/protective measure:
1 x C-automatic 16A 1p
2 x C-automatic 16A 3p
1 x C-automatic 32A 3p
1 x FI switch 63/0.03A 4p / total Cable
entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: 890939
Standard: DIN EN 61439
Protection class: IP67
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening,
top section straight and hinged at the side,
fuse mounted on a pull-out mounting rail,
cover screws captive, fuse elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower housing section black, similar to RAL 9017, upper housing section grey RAL 7035
Device height: 650 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 0.74
InA: 63
Equipment:
2 x earthed socket 16A 230V IP67 blue
2 x CEE socket 16A 400V 5p 6h IP67 inclined
1 x CEE socket 32A 400V 5p 6h IP67 inclined
1 x CEE socket 63A 400V 5p 6h IP67 inclined
Fuse protection/protective measure:
1 x C-automatic 16A 1p
2 x C-automatic 16A 3p
1 x C-automatic 32A 3p
1 x FI switch 63/0.03A 4p / total Cable
entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: 890939
