Bals 890864 VARIABOX-L DUO PLUS
|
1.987,43 EUR |
|
|
( 2.365,04 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 468229 |
|---|---|
| Mfg Part No: | 890864 |
| UPC/EAN: | 4024941939096 |
| Weight: | 0.12 kg |
Product information for BALS 890864:

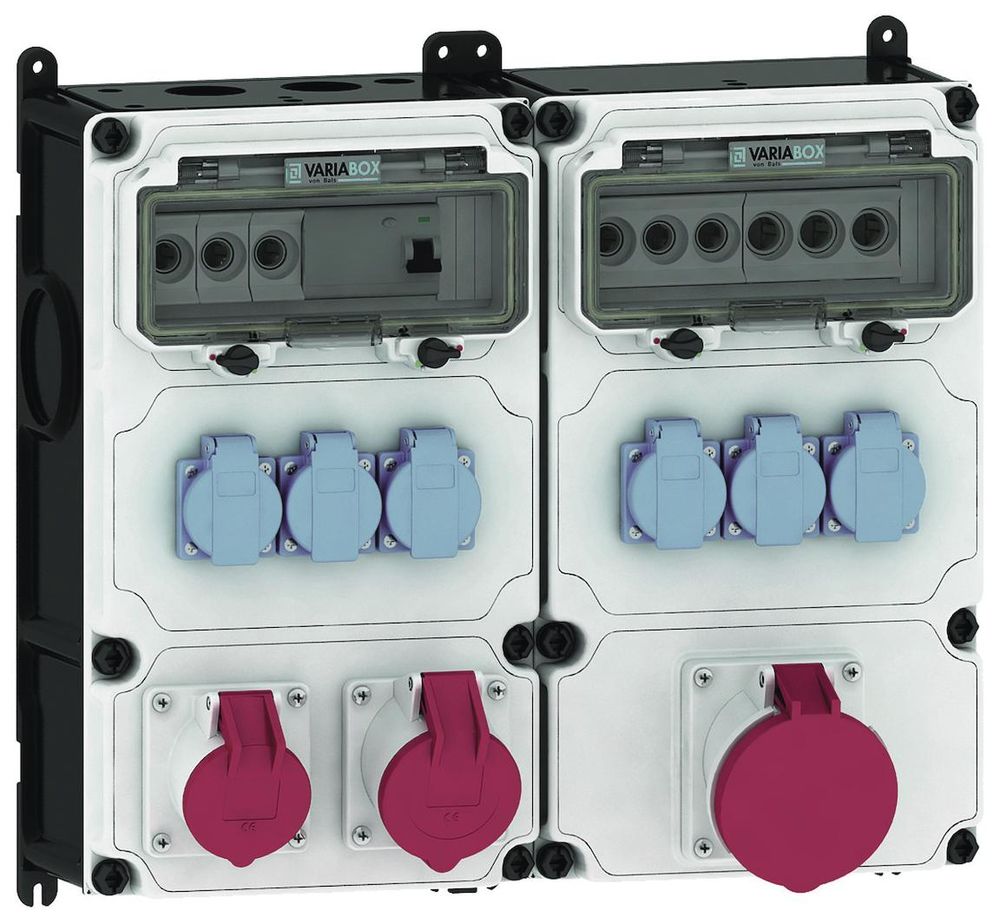

VARIABOX - L Duo Plus
Standard: DIN EN 61439
Protection class: IP54
Housing:
high-quality, impact-resistant plastic housing (PBT)
high chemical resistance
sealable, with external and internal fastening
top section straight and hinged at the side
Protection mounted on a pull-out mounting rail cover
screws cannot be lost, protection elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower housing section black similar to RAL 9017, upper housing section grey RAL 7035
Device height: 390 mm, device width: 460 mm, device depth: 145 mm
RDF factor: 0.95
InA: 63
Equipment:
6 x earthed socket 16A 230V IP54 blue
1 x CEE socket 16A 400V 5p 6h glv/Ni TE IP54 inclined
1 x CEE socket 32A 400V 5p 6h glv/Ni TE IP54 inclined
1 x CEE socket 63A 400V 5p 6h glv/Ni TE IP54 inclined
Fuse protection/protective measure:
3 x fuse base D01 1p
(2 protective circuits each led via 1 circuit breaker)
1 x fuse base D01 3p
1 x fuse base D02 3p
1 x residual current switch 63/0.03A 4p all-current sensitive type B
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: 890864
Standard: DIN EN 61439
Protection class: IP54
Housing:
high-quality, impact-resistant plastic housing (PBT)
high chemical resistance
sealable, with external and internal fastening
top section straight and hinged at the side
Protection mounted on a pull-out mounting rail cover
screws cannot be lost, protection elements
arranged under a transparent operating flap
with user-friendly OTC mechanism
(one touch close)
Device color: lower housing section black similar to RAL 9017, upper housing section grey RAL 7035
Device height: 390 mm, device width: 460 mm, device depth: 145 mm
RDF factor: 0.95
InA: 63
Equipment:
6 x earthed socket 16A 230V IP54 blue
1 x CEE socket 16A 400V 5p 6h glv/Ni TE IP54 inclined
1 x CEE socket 32A 400V 5p 6h glv/Ni TE IP54 inclined
1 x CEE socket 63A 400V 5p 6h glv/Ni TE IP54 inclined
Fuse protection/protective measure:
3 x fuse base D01 1p
(2 protective circuits each led via 1 circuit breaker)
1 x fuse base D01 3p
1 x fuse base D02 3p
1 x residual current switch 63/0.03A 4p all-current sensitive type B
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M40 top
1 x M12, 1 x M20, 2 x M40 bottom
1 x meter terminal block 5x25 mm² / type: C (conductor line)
Additional information:
Wired and ready for connection.
Type: 890864
