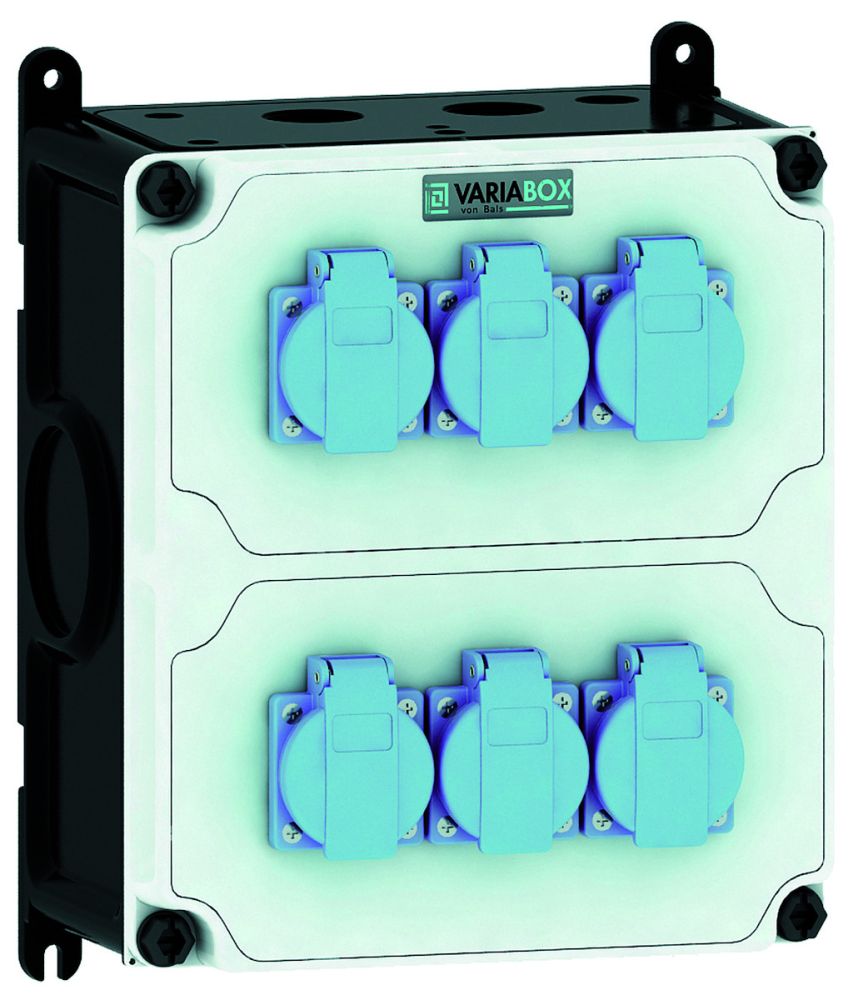

Bals 89036 socket combination Varia-Box size M
|
483,83 EUR |
|||||||||||
|
( 575,76 EUR incl. VAT ) ≈ £404.97 | ≈ $541.41 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 521158 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 89036 | ||||||||||
| UPC/EAN: | 4024941205696 | ||||||||||
| Weight: | 2.696 kg | ||||||||||
| Type: | 89036 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 89036:
Standard: DIN EN 61439-2
Protection class: IP44
Housing:
high-quality, impact-resistant plastic housing (PBT)
, sealable, with external and internal fastening,
upper section straight and hinged on the side,
cover screws captive
Device colour: lower housing section black, similar to RAL 9017, upper housing section grey RAL 7035
Device height: 260 mm, device width: 230 mm, device depth: 145 mm
RDF factor: 1
InA: 16
Equipment:
6 x earthed socket outlet 16A 230V blue IP44
Fuse protection/protective measure:
none
Cable entry/connection option:
1 x M12, 1 x M20, 2 x M25 top
1 x M12, 1 x M20, 2 x M25 bottom
Additional information:
Wired ready for connection on 5x6 mm² terminal blocks
Construction in accordance with Z-No. Z120166
| General | |
| CEE socket outlet 16 A | None |
| CEE socket outlet 32 A | None |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Number of socket outlets with protective contact | 6 |
| number of socket outlets swiss standard type 13 | 0 |
| number of socket outlets swiss standard type 15 | 0 |
| number of socket outlets swiss standard type 23 | 0 |
| number of socket outlets swiss standard type 25 | 0 |
| Other fixtures and/or empty locations | 0 |
| Number of miniature circuit breakers | 0 |
| Power supply/connection possibility | 1 cable (branch line) |
| Type of mains connection | Other |
| Cable length | 0 |
| Handling | Wall mounting |
| Degree of protection (IP) | IP44 |
| Colour | Grey |
| Height | 260 |
| Width | 230 |
| Depth | 145 |
| Military model | |
Questions & answers
What is the delivery time of Bals 89036 socket combination Varia-Box size M?
The article Bals 89036 socket combination Varia-Box size M is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 89036 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 89036 socket combination Varia-Box size M always at the best possible price. We can give you a discount of 2% on Bals 89036 socket combination Varia-Box size M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Bals 89036 socket combination Varia-Box size M we can offer you a price of 451,17 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
