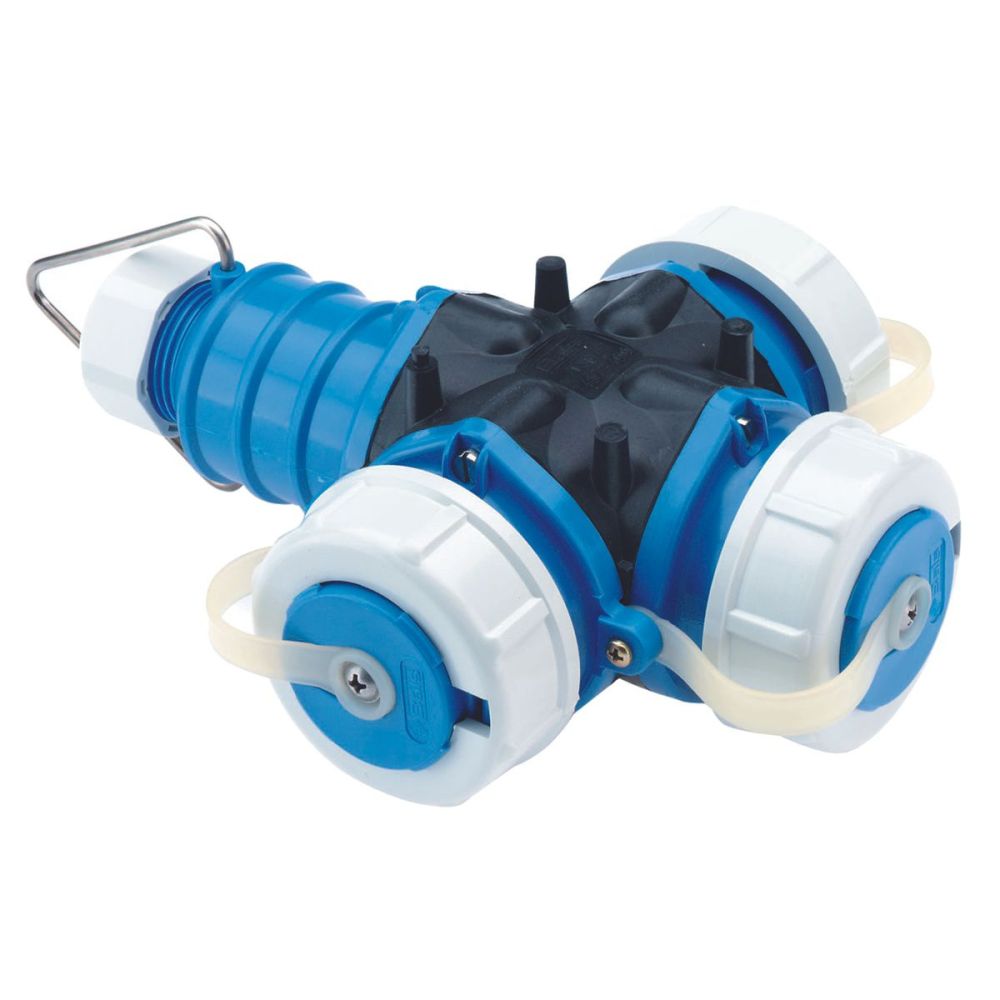

Bals 749 protective earth three-way coupling 16 A 3-pole 230 V IP67
|
541,69 EUR |
|||||||||||
|
( 644,61 EUR incl. VAT ) ≈ £453.39 | ≈ $606.15 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 747929 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 749 | ||||||||||
| UPC/EAN: | 4024941007498 | ||||||||||
| Weight: | 0.62 kg | ||||||||||
| Type: | 749 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 749:
16A 3p (2P+PE) 250V (250V~) IP67
Frequency: AC
Technical identification color: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: head screw terminal
Cable entry: with cable screw connection
Device color: collar blue RAL 5015, hinged cover blue RAL 5015, bayonet ring gray RAL 7035, housing cover blue RAL 5015
Device height: 232 mm, device width: 162 mm, device depth: 73 mm
Halogen-free: yes
Other technical properties: For cables with a maximum diameter of 14 mm, the cable is entered via a cable screw connection, with hammer symbol, the bayonet cover is attached to the housing with a fastening strap
| General | |
| Material | Plastic |
| Material quality | Polyamide (PA) |
| Degree of protection (IP) | IP67 |
| Angle of plug | Straight |
| Connection system | Screwed terminal |
| Colour | Blue |
| RAL-number | 5015 |
| Number of poles | 3 |
| Nominal voltage | 250 |
| Nominal current | 16 |
| Halogen free | |
Questions & answers
What is the delivery time of Bals 749 protective earth three-way coupling 16 A 3-pole 230 V IP67?
The article Bals 749 protective earth three-way coupling 16 A 3-pole 230 V IP67 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 749 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 749 protective earth three-way coupling 16 A 3-pole 230 V IP67 always at the best possible price. We can give you a discount of 2% on Bals 749 protective earth three-way coupling 16 A 3-pole 230 V IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Bals 749 protective earth three-way coupling 16 A 3-pole 230 V IP67 we can offer you a price of 517,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
