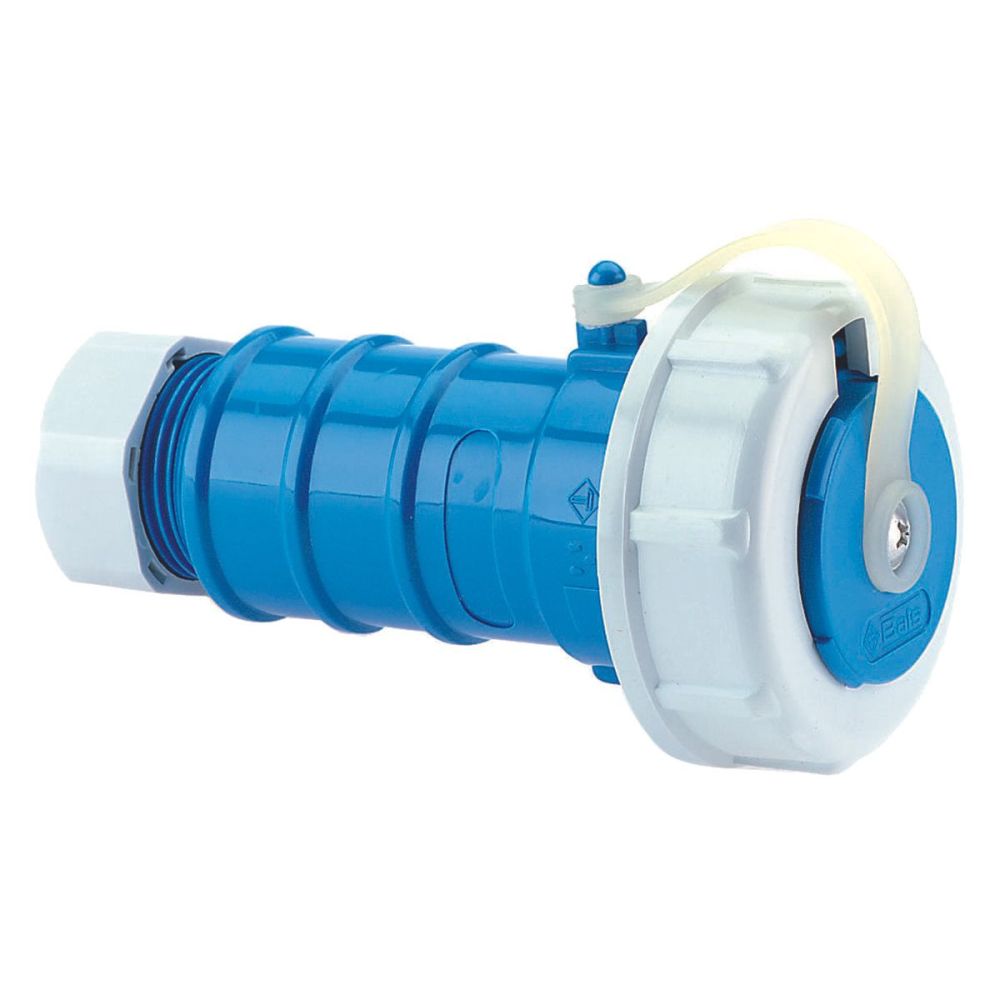

Bals 746 protective earth coupling 16 A 3-pole 230 V IP67
|
184,96 EUR |
|||||||||||
|
( 220,10 EUR incl. VAT ) ≈ £154.81 | ≈ $206.97 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 911885 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 746 | ||||||||||
| UPC/EAN: | 4024941007467 | ||||||||||
| Weight: | 0.156 kg | ||||||||||
| Type: | 746 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 746:
16A 3p (2P+PE) 250V (250V~) IP68
Frequency: AC
Technical identification color: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: head screw terminal
Cable entry: with cable screw connection
Device color: housing blue RAL 5015, hinged cover blue RAL 5015, bayonet ring gray RAL 7035, cable screw connection gray RAL 7035
Device height: 130 mm, device width: 66 mm, device depth: 75 mm
Halogen-free: yes
Other technical properties: with German system, for cables with a maximum diameter of 14 mm, the cable is entered via a cable screw connection, with hammer symbol, the bayonet cover is attached to the housing with a fastening strap
| General | |
| Material | Plastic |
| Material quality | Polyamide (PA) |
| Degree of protection (IP) | IP68 |
| Degree of protection (NEMA) | Other |
| Angle of plug | Straight |
| Connection system | Screwed terminal |
| Colour | Blue |
| RAL-number | 5015 |
| Number of poles | 3 |
| Nominal voltage | 250 |
| Nominal current | 16 |
| Halogen free | |
| Suitable for protective contact pin | |
