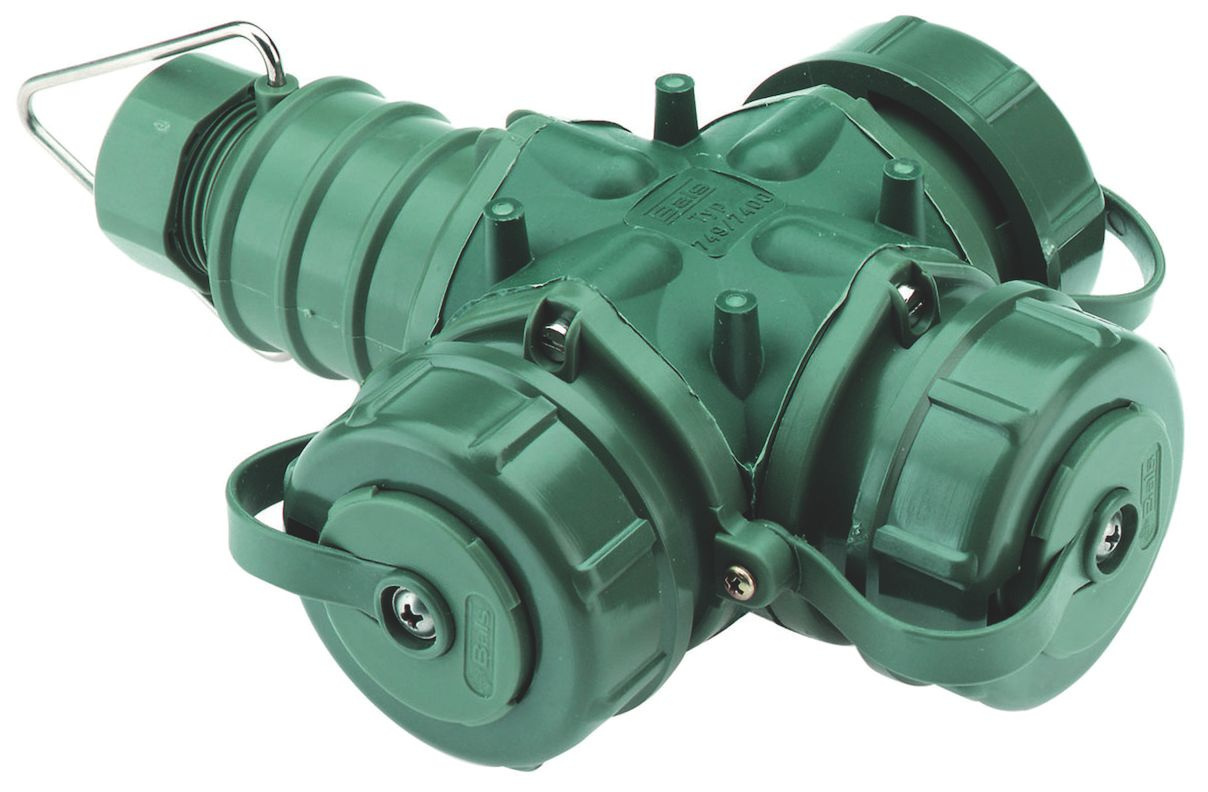

Bals 7400 protective earth three-way coupling TN 16A 3-pole 230V IP67
|
606,95 EUR |
|||||||||||
|
( 722,27 EUR incl. VAT ) ≈ £508.02 | ≈ $679.18 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 173183 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 7400 | ||||||||||
| UPC/EAN: | 4024941074001 | ||||||||||
| Weight: | 0.67 kg | ||||||||||
| Type: | 7400 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 7400:
16A 3p (2P+PE) 250V (250V~) IP67
Frequency: AC
Technical identification color: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: rubber
Connection technology: head screw terminal
Cable entry: with cable screw connection
Device color: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 232 mm, device width: 162 mm, device depth: 73 mm
Halogen-free: yes
Other technical properties: For cables with a maximum diameter of 18 mm, the cable entry is via a cable screw connection, the bayonet cover is attached to the housing with a fastening strap, with locking cover
VG type no.: VG 96926 04 ES, supply no.: 5935-12-123-0129
| General | |
| Material | Rubber |
| Degree of protection (IP) | IP68 |
| Angle of plug | Straight |
| Connection system | Screwed terminal |
| Colour | Green |
| Number of poles | 3 |
| Nominal voltage | 250 |
| Nominal current | 16 |
| Halogen free | |
Questions & answers
What is the delivery time of Bals 7400 protective earth three-way coupling TN 16A 3-pole 230V IP67?
The article Bals 7400 protective earth three-way coupling TN 16A 3-pole 230V IP67 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 7400 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 7400 protective earth three-way coupling TN 16A 3-pole 230V IP67 always at the best possible price. We can give you a discount of 2% on Bals 7400 protective earth three-way coupling TN 16A 3-pole 230V IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Bals 7400 protective earth three-way coupling TN 16A 3-pole 230V IP67 we can offer you a price of 579,64 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
