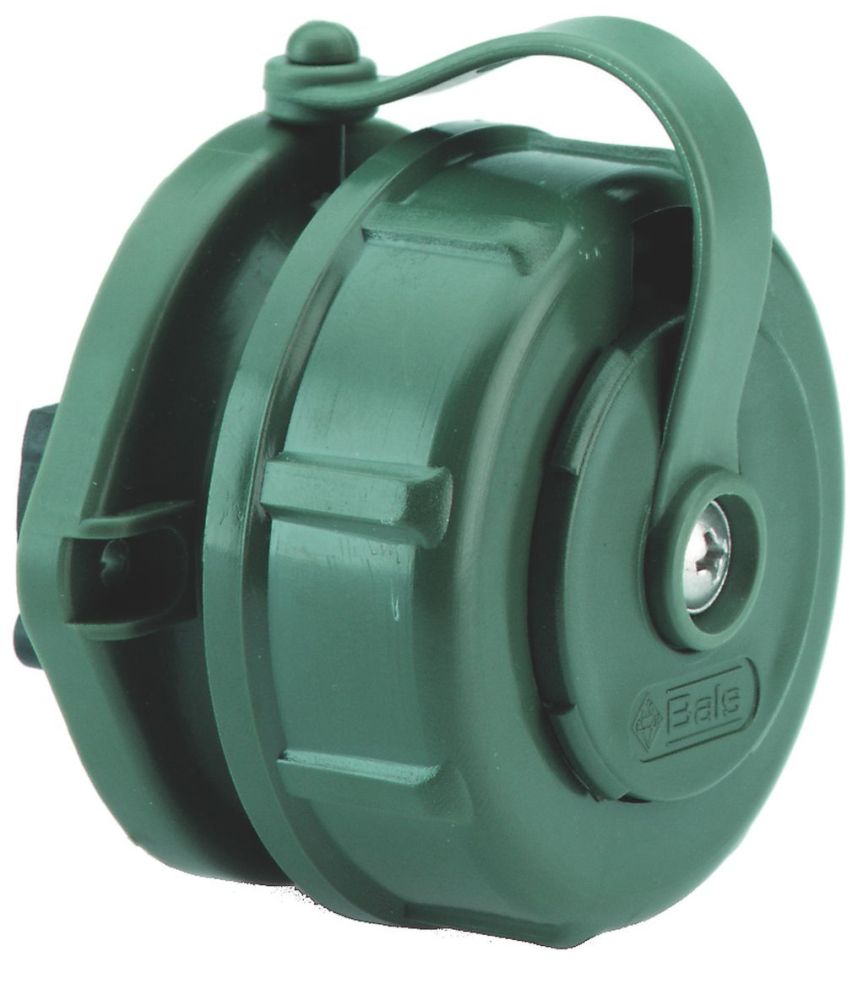

Bals 7115 TN-SCHUKO mounting socket 16 A 3-pole 230 V IP68
|
135,28 EUR |
|||||||||||
|
( 160,98 EUR incl. VAT ) ≈ £113.23 | ≈ $151.38 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 814660 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 7115 | ||||||||||
| UPC/EAN: | 4024941071154 | ||||||||||
| Weight: | 0.11 kg | ||||||||||
| Type: | 7115 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 7115:
16A 3p (2P+PE) 250V (250V~) IP68
Frequency: AC
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: plastic
Connection technology: head screw terminal
Cable entry: other
System: German system - type F
Device colour: bayonet ring bronze green RAL 6031-F9, hinged lid bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 77 mm, device width: 72 mm, device depth: 62 mm
Flange size vertical: 65 mm, flange size horizontal: 72 mm
Hole spacing horizontal: 58 mm
Halogen-free: yes
Other technical properties: The flange is oval and has a two-point fastening of 58 mm, the connection is rear, with German system, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96926 BS 001, supply no.: 5935-12-314-4770
| General | |
| Material | Plastic |
| Material quality | Thermoplastic |
| Degree of protection (IP) | IP68 |
| Angle of plug | Straight |
| Connection system | Screwed terminal |
| Colour | Green |
| Number of poles | 3 |
| Nominal current | 16 |
| Nominal voltage | 250 |
| Halogen free | |
| With hinged lid | |
