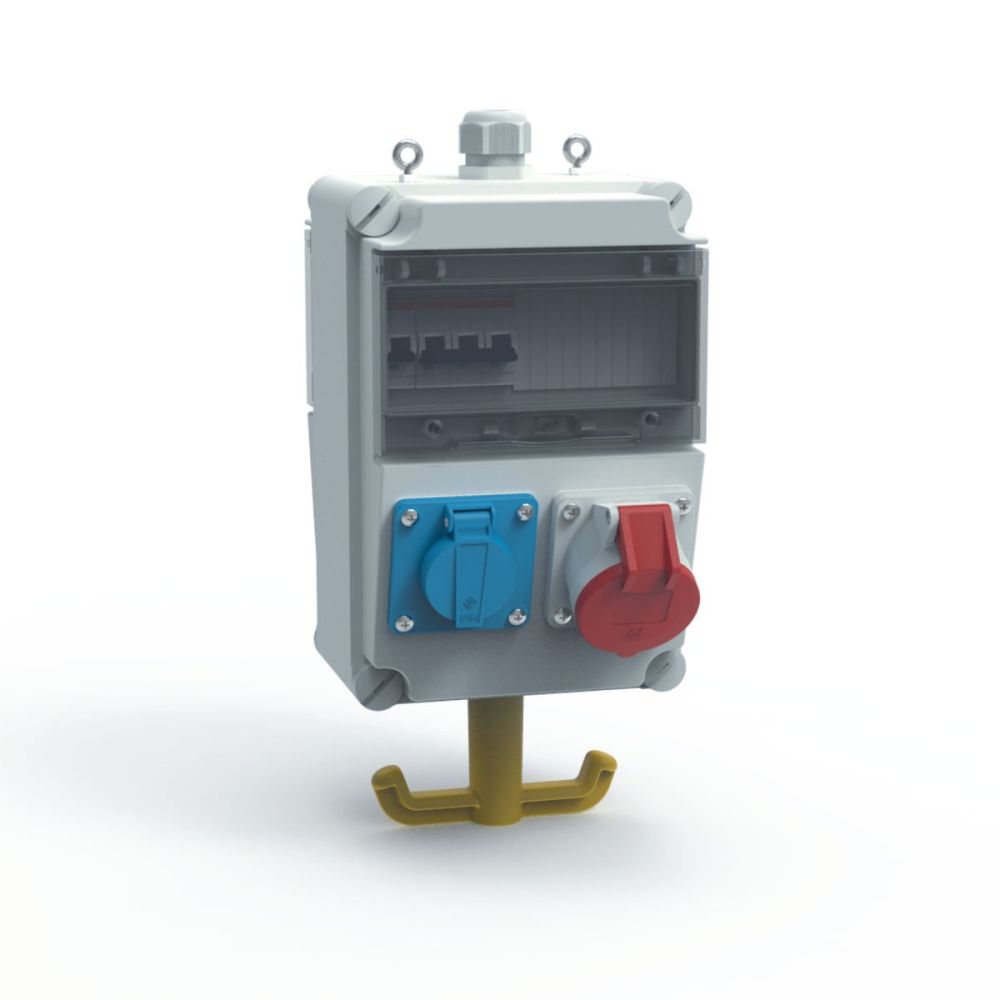

Bals 572185 hanging distributor
|
1.048,99 EUR |
|||||||||||
|
( 1.248,30 EUR incl. VAT ) ≈ £878.00 | ≈ $1,173.82 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 119063 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 572185 | ||||||||||
| UPC/EAN: | 4024941948265 | ||||||||||
| Weight: | 3.892 kg | ||||||||||
| Type: | 572185 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 572185:
Protection class: IP44
Housing:
2 impact-resistant plastic top parts combined
with an intermediate flange (can be fitted on both sides)
with two hanging eyes and a handle hook
Device color: Housing bottom part grey RAL 7035, housing top part grey RAL 7035
Device height: 276 mm, device width: 184 mm, device depth: 206 mm
Equipment:
3 x earthed socket 16A 230V IP44
1 x CEE socket 16A 400V 5p 6h IP44
Fuse/protective measure:
3 x C-automat 16A 1p
1 x C-automat 16A 3p
1 x residual current device 40/0.03A 4p Cable
entry/connection option:
1 x M32 cable gland (sealing range: 15-21mm)
Additional information:
Wired ready for connection on a terminal block 5 x 10 sqmm.
Construction according to Z-No. Z110201
CEE device with screwless, maintenance-free
quick-connect connection technology.
| General | |
| CEE socket outlet 16 A | 1x16A5p400V |
| CEE socket outlet 32 A | None |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Number of socket outlets with protective contact | 3 |
| number of socket outlets swiss standard type 13 | 0 |
| number of socket outlets swiss standard type 15 | 0 |
| number of socket outlets swiss standard type 23 | 0 |
| number of socket outlets swiss standard type 25 | 0 |
| Other fixtures and/or empty locations | 0 |
| Protection | Over current switch |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| Number of miniature circuit breakers | 4 |
| Material housing | Plastic |
| Type of mains connection | CEE 32 A |
| Cable length | 0 |
| Handling | Hangable |
| Degree of protection (IP) | IP44 |
| Colour | Grey |
| Height | 276 |
| Width | 184 |
| Depth | 206 |
| Military model | |
Questions & answers
What is the delivery time of Bals 572185 hanging distributor?
The article Bals 572185 hanging distributor is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 572185 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 572185 hanging distributor always at the best possible price. We can give you a discount of 2% on Bals 572185 hanging distributor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Bals 572185 hanging distributor we can offer you a price of 986,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
