Bals 571121 Uni-Block solid rubber 31000000 Dl
|
716,39 EUR |
|||||||||||
|
( 852,50 EUR incl. VAT ) ≈ £599.62 | ≈ $801.64 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 574177 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 571121 | ||||||||||
| UPC/EAN: | 4024941147804 | ||||||||||
| Weight: | 2.92 kg | ||||||||||
| Type: | 571121 | ||||||||||
|
Graduated prices net
|
|||||||||||

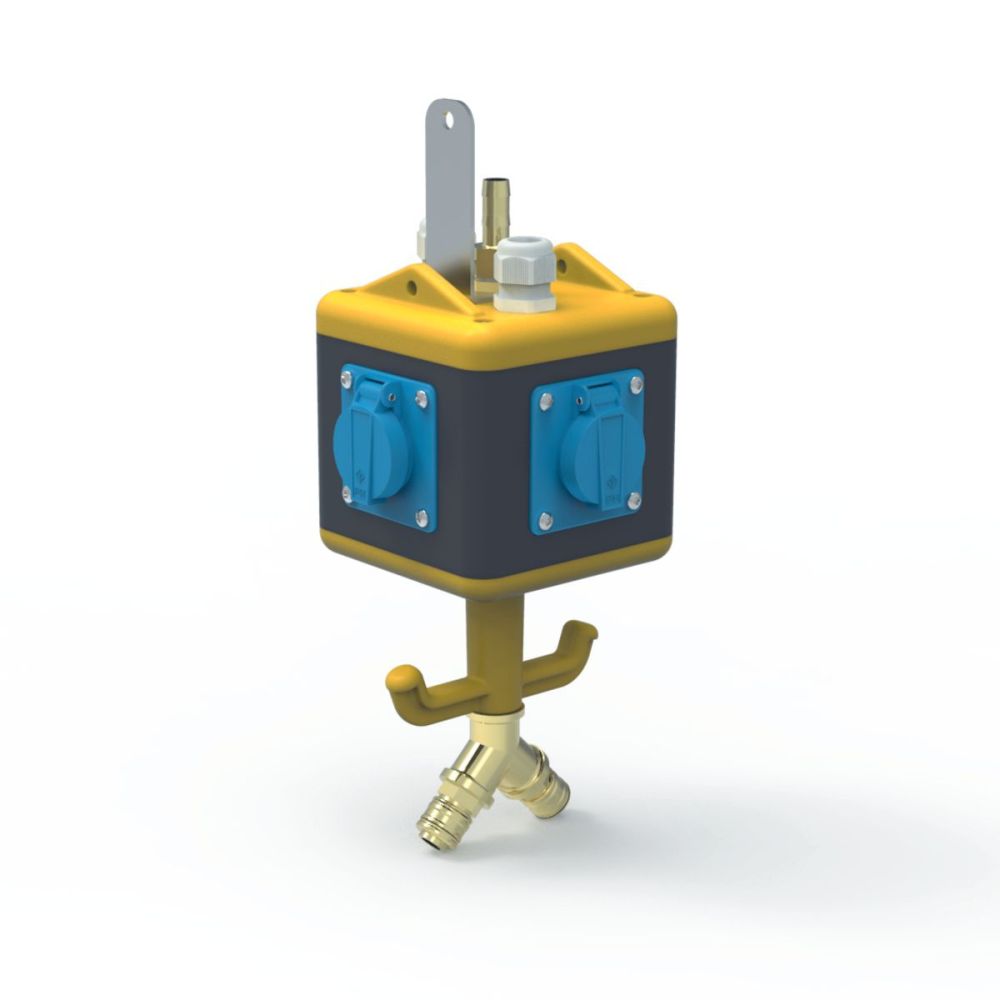

Product information for Bals 571121:
Protection class: IP44
Housing:
impact-resistant solid rubber housing with hanging bracket
and handle hook
Device color: lower housing part black similar to RAL 9017, upper housing part yellow similar to RAL 1023
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
RDF factor: 1
InA: 16
Equipment:
3 x earthed socket 16A 230V IP44
1 x CEE socket 16A 400V 5p 6h IP44
1 x compressed air connection consisting of
Inlet: 1/2' pipe with hose nozzle NW 13mm
Outlet: 1/2' two-way distributor with quick couplings
Protection/protective measure:
without
cable entry/connection option:
2 x M25 cable gland (sealing range: 11-17mm)
Additional information:
Ready to connect, wired to two three-phase circuits.
CEE device with screwless, maintenance-free
Quick-Connect connection technology.
Structure as per drawing: Z080326
| General | |
| CEE socket outlet 16 A | 1x16A5p400V |
| CEE socket outlet 32 A | None |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Number of socket outlets with protective contact | 3 |
| number of socket outlets swiss standard type 13 | 0 |
| number of socket outlets swiss standard type 15 | 0 |
| number of socket outlets swiss standard type 23 | 0 |
| number of socket outlets swiss standard type 25 | 0 |
| Other fixtures and/or empty locations | 1 |
| Power supply/connection possibility | 1 cable (branch line) |
| Type of mains connection | Other |
| Cable length | 0 |
| Handling | Hangable |
| Degree of protection (IP) | IP44 |
| Height | 140 |
| Width | 140 |
| Depth | 140 |
| Military model | |
