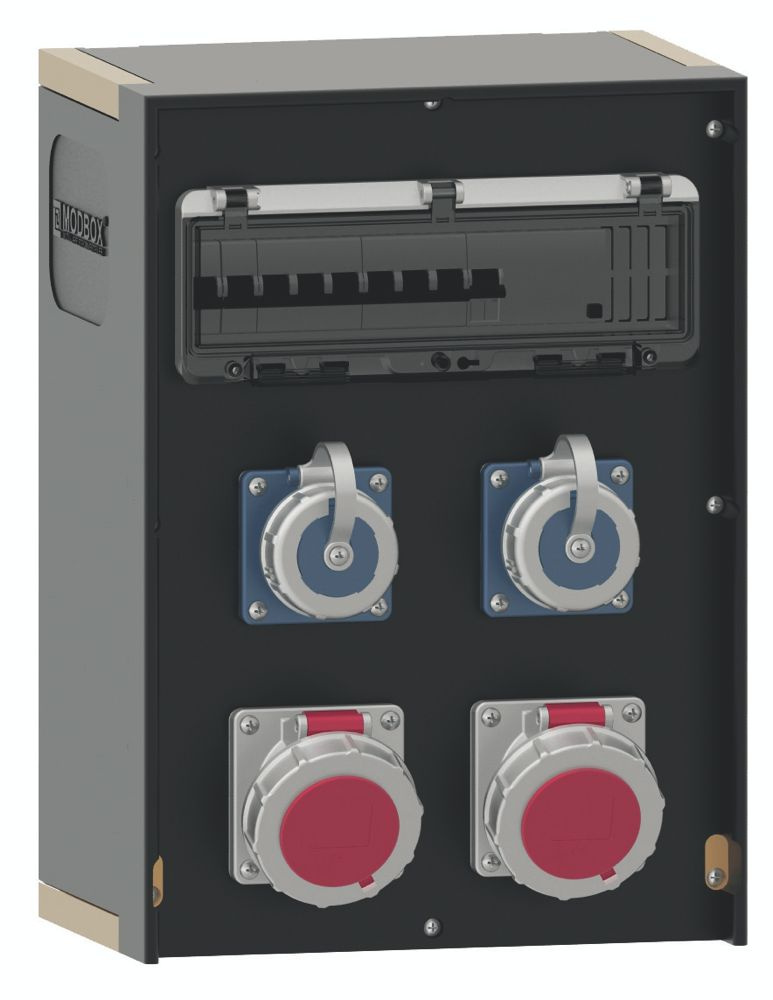

Bals 5402161 wall-mounted distributor full rubber system MODBOX
|
1.163,18 EUR |
|||||||||||
|
( 1.384,18 EUR incl. VAT ) ≈ £973.58 | ≈ $1,301.60 plus delivery charges: 148,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 410222 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 5402161 | ||||||||||
| UPC/EAN: | 4024941935890 | ||||||||||
| Weight: | 14.494 kg | ||||||||||
| Type: | 5402161 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 5402161:
Protection class: IP67
Housing:
impact-resistant, flame-retardant solid rubber housing
UV resistant, halogen-free, ageing, temperature,
oil and acid resistant, good chemical resistance
Fuse elements arranged under transparent
snap-in operating flap
Device color: housing bottom part black similar to RAL 9017, housing top part black similar to RAL 9017
Device height: 420 mm, device width: 300 mm, device depth: 175 mm
RDF factor: 0.76
InA: 40
Equipment:
2 x earthed socket 16A 230V IP67 blue
2 x CEE socket 16A 400V 5p 6h IP67 inclined
Fuse/protective measure:
2 x C-automatic 16A 1p
2 x C-automatic 16A 3p
1 x residual current device 40/0.03A 4p
Cable entry/connection option:
1 x M12, 2 x M40 below
1 x meter terminal block 5x25 mm² / Type: C (conductor line)
Additional information:
Wired ready for connection.
| General | |
| CEE socket outlet 16 A | 2x16A5p400V |
| CEE socket outlet 32 A | None |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Number of socket outlets with protective contact | 2 |
| number of socket outlets swiss standard type 13 | 0 |
| number of socket outlets swiss standard type 15 | 0 |
| number of socket outlets swiss standard type 23 | 0 |
| number of socket outlets swiss standard type 25 | 0 |
| Other fixtures and/or empty locations | 0 |
| Protection | Over current switch |
| Earth leakage switch | Earth leakage switch with IFN 30 mA (standard) |
| Number of miniature circuit breakers | 4 |
| Type of mains connection | Other |
| Cable length | 0 |
| Handling | Wall mounting |
| Degree of protection (IP) | IP67 |
| Height | 420 |
| Width | 300 |
| Depth | 175 |
| Military model | |
Questions & answers
What is the delivery time of Bals 5402161 wall-mounted distributor full rubber system MODBOX?
The article Bals 5402161 wall-mounted distributor full rubber system MODBOX is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 5402161 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 5402161 wall-mounted distributor full rubber system MODBOX always at the best possible price. We can give you a discount of 2% on Bals 5402161 wall-mounted distributor full rubber system MODBOX if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Bals 5402161 wall-mounted distributor full rubber system MODBOX we can offer you a price of 1.145,73 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
