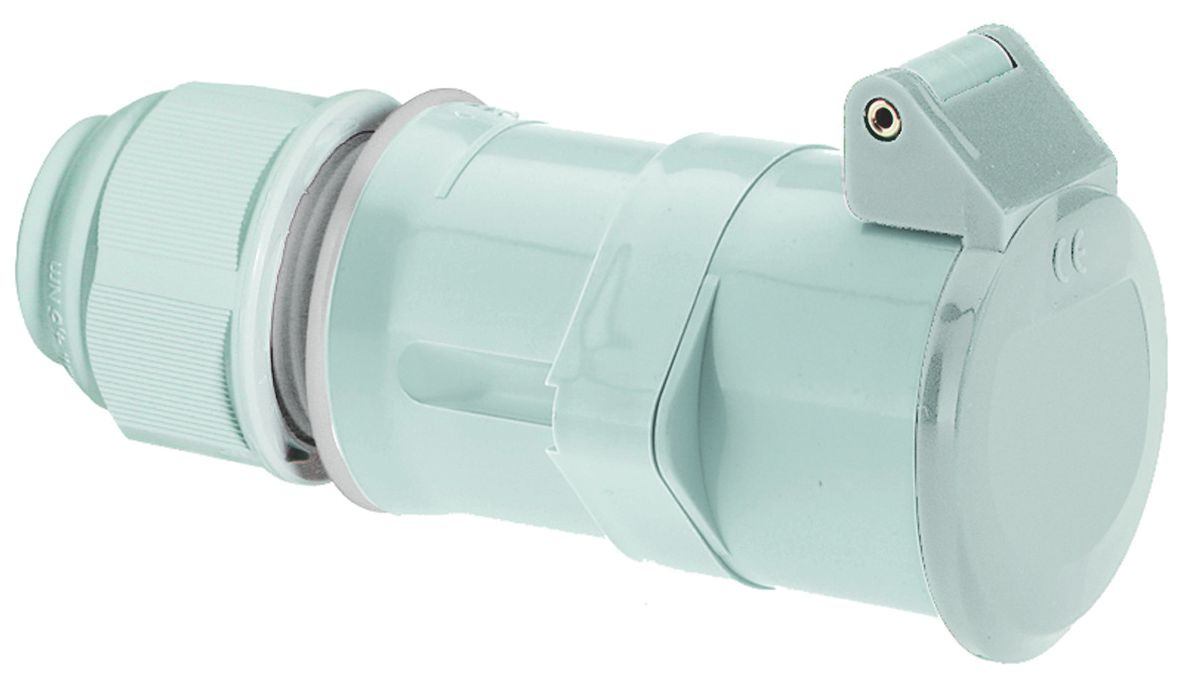

Bals 4529 low-voltage coupling 16 A 3-pole 42 V 12 h IP44
|
119,32 EUR |
|||||||||||
|
( 141,99 EUR incl. VAT ) ≈ £99.87 | ≈ $133.52 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 575832 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 4529 | ||||||||||
| UPC/EAN: | 4024941045292 | ||||||||||
| Weight: | 0.203 kg | ||||||||||
| Type: | 4529 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 4529:
16A 3p (3P) 42V (40 bis 50V) 12h IP44
Frequenz: 50/60Hz
Technische Kennfarbe: grau RAL 7035
Kontaktträger/Kontakte: Der Kontaktträger ist aus Polyamid, Die Kontakte sind Messing vernickelt
Maximaler Leiterquerschnitt: 10,0 qmm
Gehäusematerial: Polyamid
Anschlusstechnik: mit Schraubklemme
Kabeleinführung: mit Kabelverschraubung
Gerätefarbe: Klappdeckel grau RAL 7035, Kragen grau RAL 7035, Gehäusehaube grau RAL 7035, Kabelverschraubung grau RAL 7035
Gerätehöhe: 152 mm, Gerätebreite: 62 mm, Gerätetiefe: 67 mm
Sonstige technische Eigenschaften: Mit MULTI-GRIP Kabelverschraubung und integrierter Zugentlastung, Für Kabel mit einem min. Durchmesser von 11mm bis max. Durchmesser 23mm
| General | |
| IEC-amperage | 16 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 40-50 V (50+60 Hz) white |
| Clock hour position | 12 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Military model | |
Questions & answers
What is the delivery time of Bals 4529 low-voltage coupling 16 A 3-pole 42 V 12 h IP44?
The article Bals 4529 low-voltage coupling 16 A 3-pole 42 V 12 h IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 4529 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 4529 low-voltage coupling 16 A 3-pole 42 V 12 h IP44 always at the best possible price. We can give you a discount of 2% on Bals 4529 low-voltage coupling 16 A 3-pole 42 V 12 h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 4529 low-voltage coupling 16 A 3-pole 42 V 12 h IP44 we can offer you a price of 110,37 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
