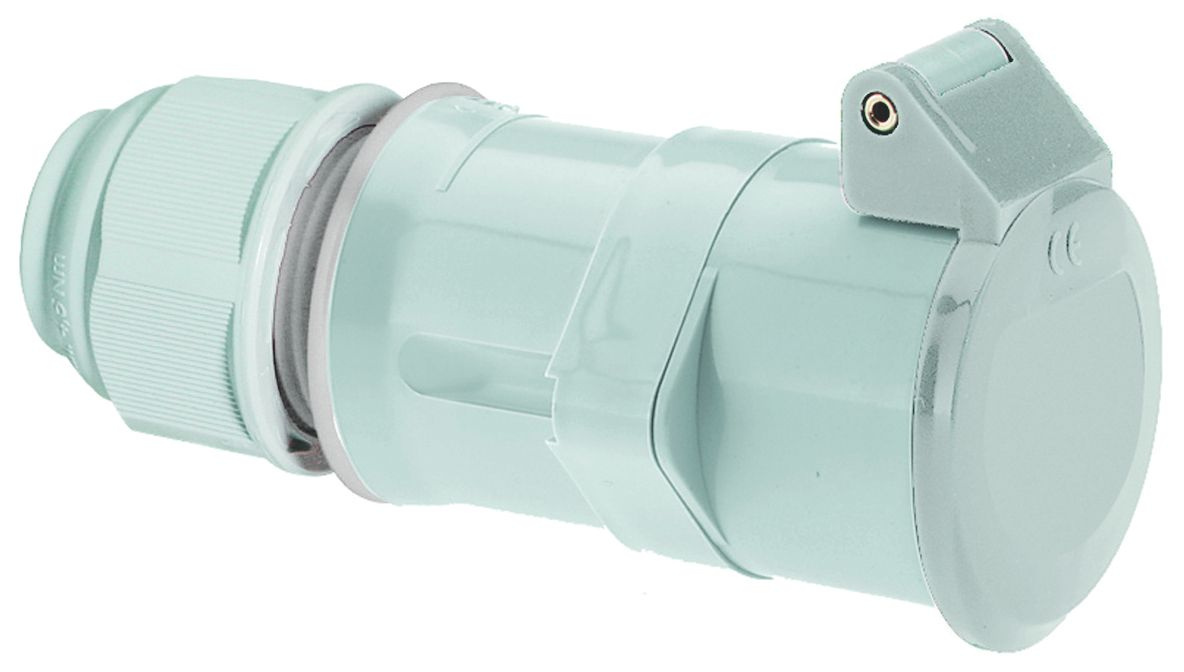

Bals 4527 low-voltage coupling 16 A 2p
|
132,14 EUR |
|||||||||||
|
( 157,25 EUR incl. VAT ) ≈ £110.60 | ≈ $147.86 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 529706 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 4527 | ||||||||||
| UPC/EAN: | 4024941045278 | ||||||||||
| Weight: | 0.185 kg | ||||||||||
| Type: | 4527 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 4527:
16A 2p (2P) <50V DC 10h IP44
Frequency: DC
Technical identification color: gray RAL 7035
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: with cable screw connection
Device color: hinged cover gray RAL 7035, housing cover gray RAL 7035, cable screw connection gray RAL 7035, collar gray RAL 7035
Device height: 152 mm, device width: 62 mm, device depth: 67 mm
Other technical properties: With MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 11 mm to max. diameter of 23 mm
| General | |
| IEC-amperage | 16 |
| Number of poles | 2 |
| Voltage acc. EN 60309-2 | Other |
| Clock hour position | 10 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Military model | |
Questions & answers
What is the delivery time of Bals 4527 low-voltage coupling 16 A 2p?
The article Bals 4527 low-voltage coupling 16 A 2p is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 4527 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 4527 low-voltage coupling 16 A 2p always at the best possible price. We can give you a discount of 2% on Bals 4527 low-voltage coupling 16 A 2p if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 4527 low-voltage coupling 16 A 2p we can offer you a price of 122,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
