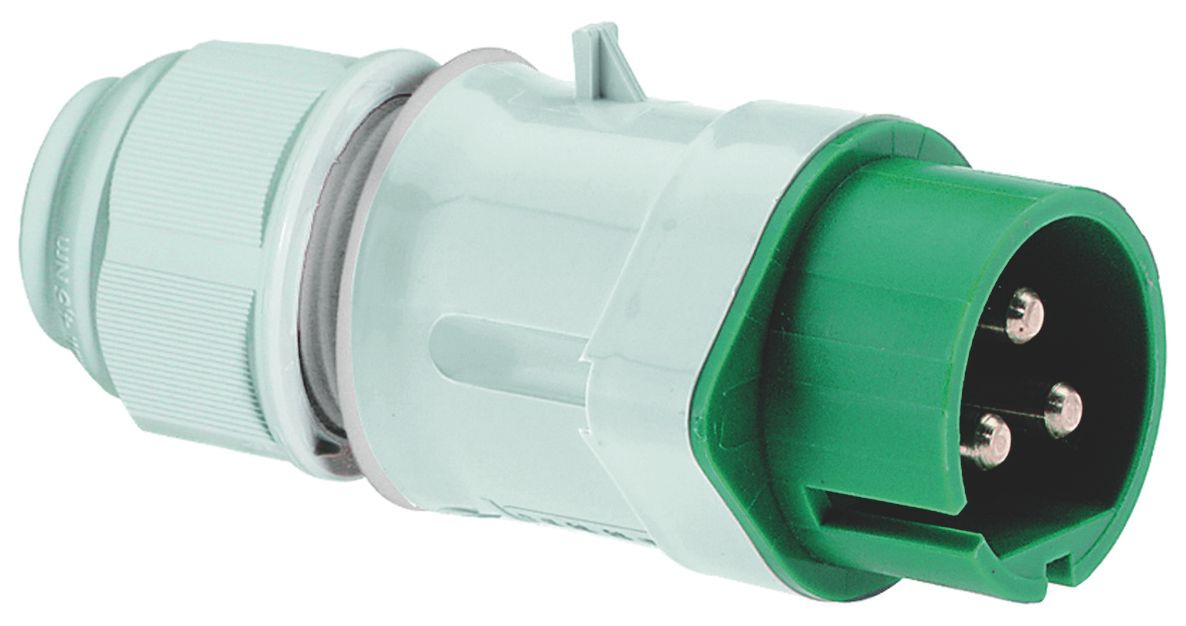

Bals 4441 low-voltage plug 32 A 3-pole
|
141,74 EUR |
|||||||||||
|
( 168,67 EUR incl. VAT ) ≈ £118.64 | ≈ $158.61 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 747829 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 4441 | ||||||||||
| UPC/EAN: | 4024941044417 | ||||||||||
| Weight: | 0.158 kg | ||||||||||
| Type: | 4441 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 4441:
32A 3p (3P) <50V green 100-200Hz (20 to 25 and 40 to 50V) 4h IP44
Frequency: 100 - 200Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: with cable screw connection
Device color: housing cover gray RAL 7035, cable screw connection gray RAL 7035, collar green RAL 6002
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical properties: With MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 11 mm to max. diameter of 23 mm
| General | |
| IEC-amperage | 32 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 20-25 V / 40-50 V (100-200 Hz) green |
| Clock hour position | 4 |
| Identification colour | Green |
| RAL-number | 6002 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Phase inverter | |
| Military model | |
