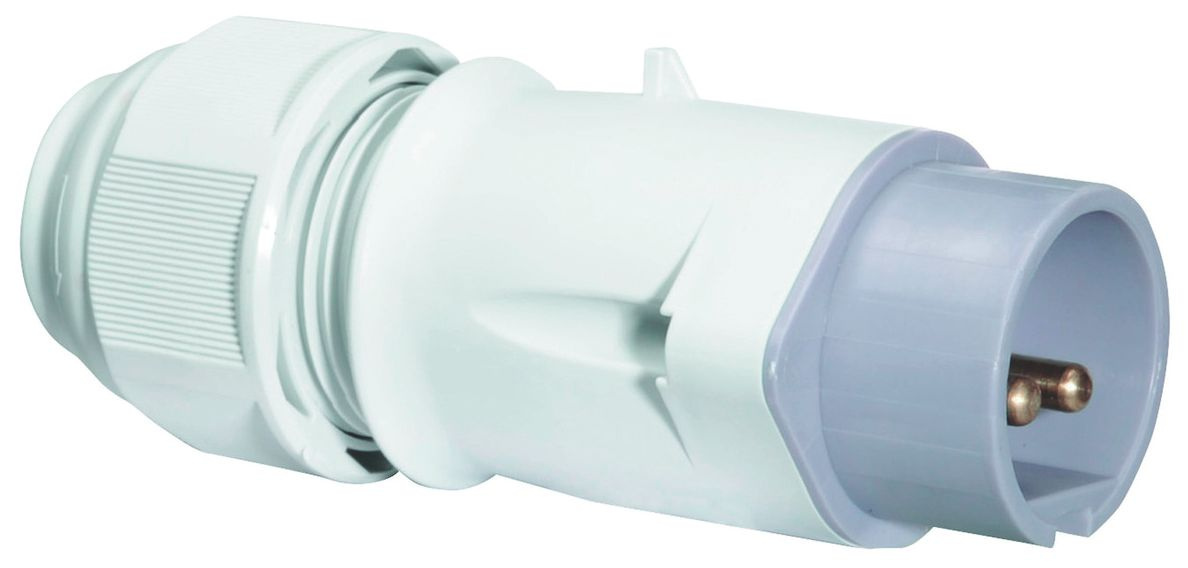

Bals 4433 low-voltage plug 32 A 2p 24 V without auxiliary nose or slot IP44
|
99,18 EUR |
|||||||||||
|
( 118,02 EUR incl. VAT ) ≈ £83.01 | ≈ $110.98 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 285884 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 4433 | ||||||||||
| UPC/EAN: | 4024941044332 | ||||||||||
| Weight: | 0.125 kg | ||||||||||
| Type: | 4433 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 4433:
32A 2p (2P) 24V (20 to 25V) no auxiliary nose or groove IP44
Frequency: 50/60Hz
Technical identification color: violet RAL 4005
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: with cable screw connection
Device color: housing cover gray RAL 7035, cable screw connection gray RAL 7035, collar violet RAL 4005
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical properties: With MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 11 mm to max. diameter of 23 mm
| General | |
| IEC-amperage | 32 |
| Number of poles | 2 |
| Voltage acc. EN 60309-2 | Other |
| Clock hour position | 0 |
| Identification colour | Violet (lilas) |
| RAL-number | 4005 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
