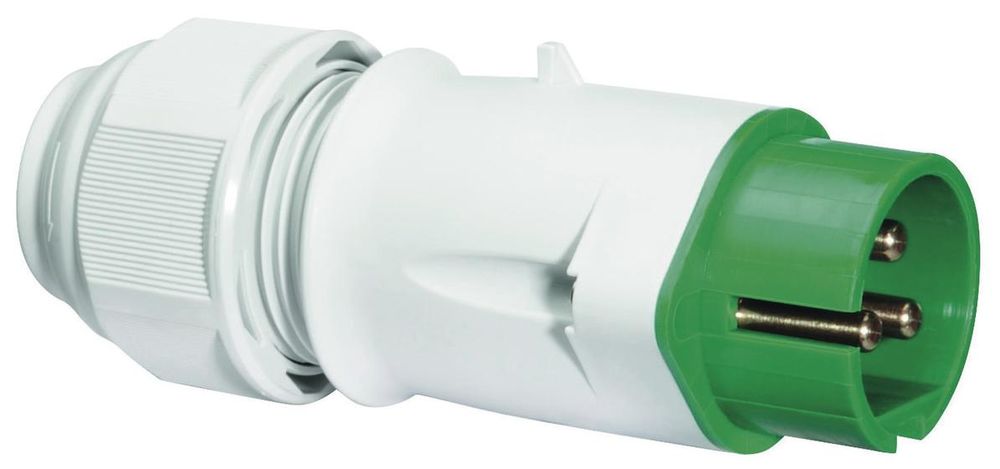

Bals 4432 low voltage plug 16A 3p
|
124,54 EUR |
|
|
( 148,20 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 460888 |
|---|---|
| Mfg Part No: | 4432 |
| UPC/EAN: | 4024941044325 |
| Weight: | 0.12 kg |
Further CEE form connectors / combinations from BALSFurther products in category CEE form connectors / combinations
All products of BALS
Product information for BALS 4432:
Low voltage plug
16A 3p (3P) <50V green 400Hz 3h IP44
Frequency: 400Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: with cable screw connection
Device color: housing cover gray RAL 7035, cable screw connection gray RAL 7035, collar green RAL 6002
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical properties: With MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 11 mm to max. diameter of 23 mm
Type: 4432
16A 3p (3P) <50V green 400Hz 3h IP44
Frequency: 400Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: with cable screw connection
Device color: housing cover gray RAL 7035, cable screw connection gray RAL 7035, collar green RAL 6002
Device height: 141 mm, device width: 62 mm, device depth: 57 mm
Other technical properties: With MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 11 mm to max. diameter of 23 mm
Type: 4432
Questions & answers
What is the delivery time of Bals 4432 low voltage plug 16A 3p?
The article Bals 4432 low voltage plug 16A 3p is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 4432 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 4432 low voltage plug 16A 3p always at the best possible price. We can give you a discount of 2% on Bals 4432 low voltage plug 16A 3p if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
