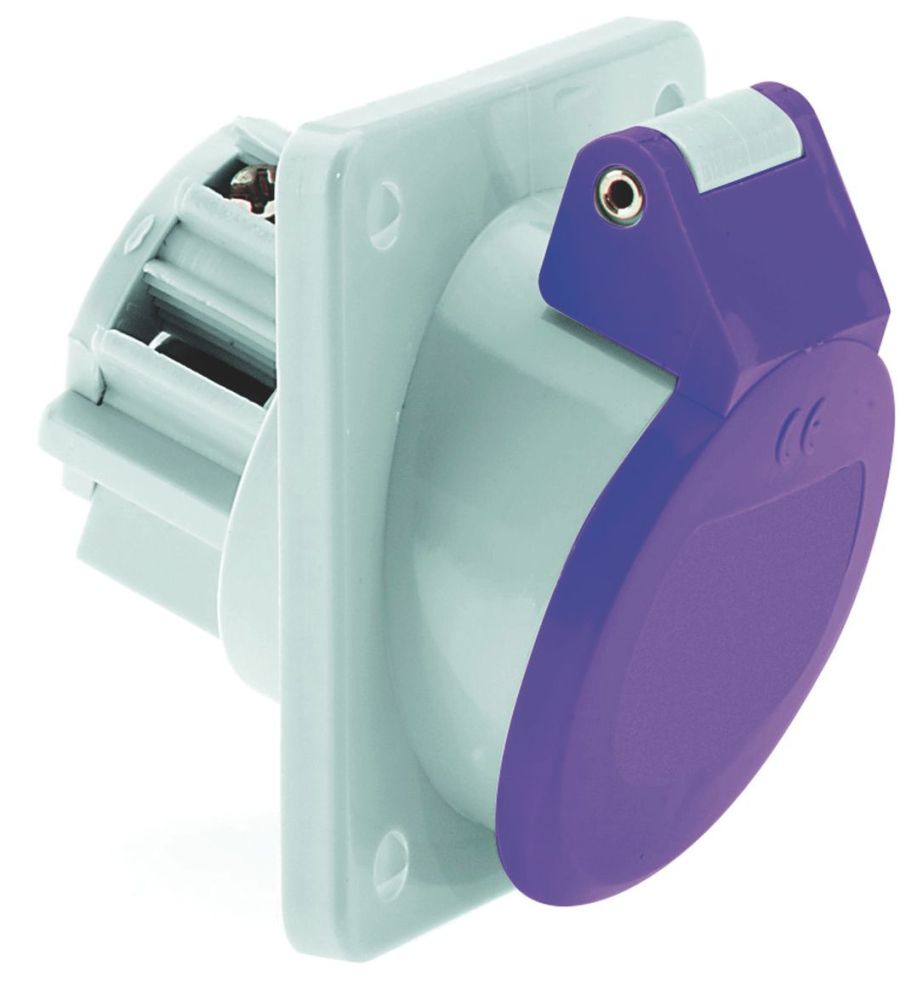

Bals 420 low-voltage mounting socket NG 16 A 2p 24 V without auxiliary nose or slot IP44
|
85,88 EUR |
|||||||||||
|
( 102,20 EUR incl. VAT ) ≈ £71.88 | ≈ $96.10 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 331182 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 420 | ||||||||||
| UPC/EAN: | 4024941004206 | ||||||||||
| Weight: | 0.114 kg | ||||||||||
| Type: | 420 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 420:
16A 2p (2P) 24V (20 to 25V) no auxiliary lug or groove IP44
Frequency: 50/60Hz
Technical identification colour: violet RAL 4005
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: other
Device colour: housing grey RAL 7035, hinged cover violet RAL 4005
Device height: 69 mm, device width: 62 mm, device depth: 70 mm
Flange size vertical: 68 mm, flange size horizontal: 62 mm
Hole spacing vertical: 53 mm, hole spacing horizontal: 47 mm
Other technical properties: The inclination is 20°
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | Other |
| Number of poles | 2 |
| Clock hour position | 0 |
| Identification colour | Violet (lilas) |
| RAL-number | 4005 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Angle of plug | Angled |
| Material | Plastic |
| Flange size vertical | 68 |
| Drill hole distance vertical | 53 |
| Flange size horizontal | 62 |
| Drill hole distance horizontal | 47 |
| Military model | |
