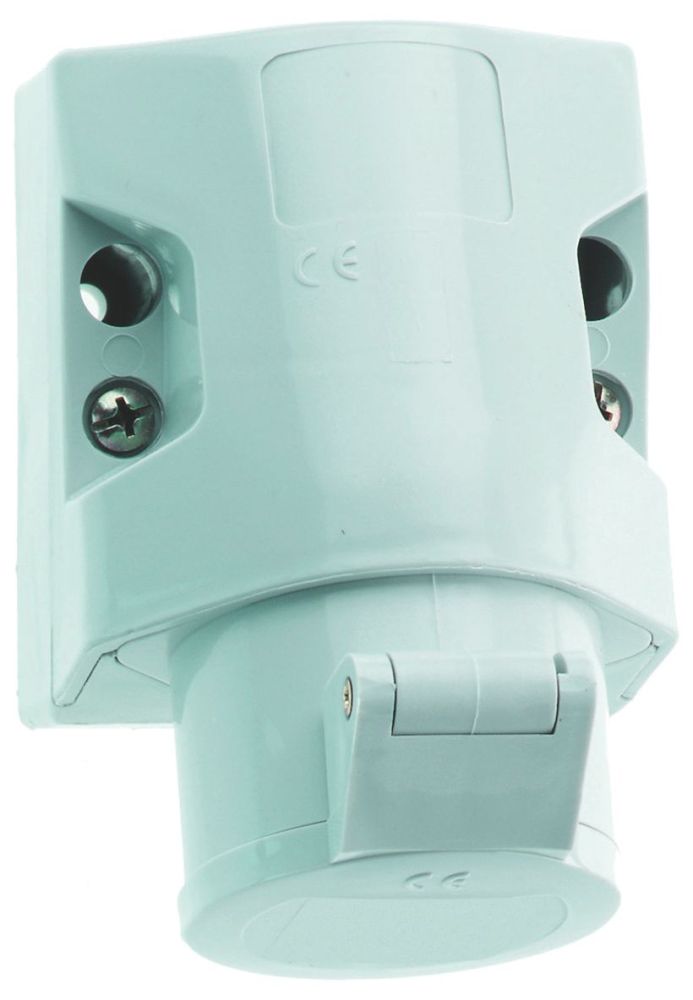

Bals 415 low-voltage wall socket 16 A 2p
|
161,21 EUR |
|||||||||||
|
( 191,84 EUR incl. VAT ) ≈ £134.93 | ≈ $180.39 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 175468 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 415 | ||||||||||
| UPC/EAN: | 4024941004152 | ||||||||||
| Weight: | 0.177 kg | ||||||||||
| Type: | 415 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 415:
16A 2p (2P) <50V DC 10h IP44
Frequency: DC
Technical identification colour: grey RAL 7035
Housing size: 80x70 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 at the top
Device colour: hinged lid grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, collar grey RAL 7035
Device height: 113 mm, device width: 70 mm, device depth: 79 mm
Other technical properties: The cable entry is open once at the top
| General | |
| IEC-amperage | 16 |
| Number of poles | 2 |
| Voltage acc. EN 60309-2 | Other |
| Clock hour position | 10 |
| Identification colour | Grey |
| RAL-number | 7035 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Material | Plastic |
| Type of fastening | External mounting |
| Contact material | CuZn |
| Mounting method | Surface mounted (plaster) |
| Surface finish contacts | Nickel-plated |
| Insulated mounting | |
| Military model | |
| Lockable | |
| Text field | |
Questions & answers
What is the delivery time of Bals 415 low-voltage wall socket 16 A 2p?
The article Bals 415 low-voltage wall socket 16 A 2p is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 415 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 415 low-voltage wall socket 16 A 2p always at the best possible price. We can give you a discount of 2% on Bals 415 low-voltage wall socket 16 A 2p if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 415 low-voltage wall socket 16 A 2p we can offer you a price of 149,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
