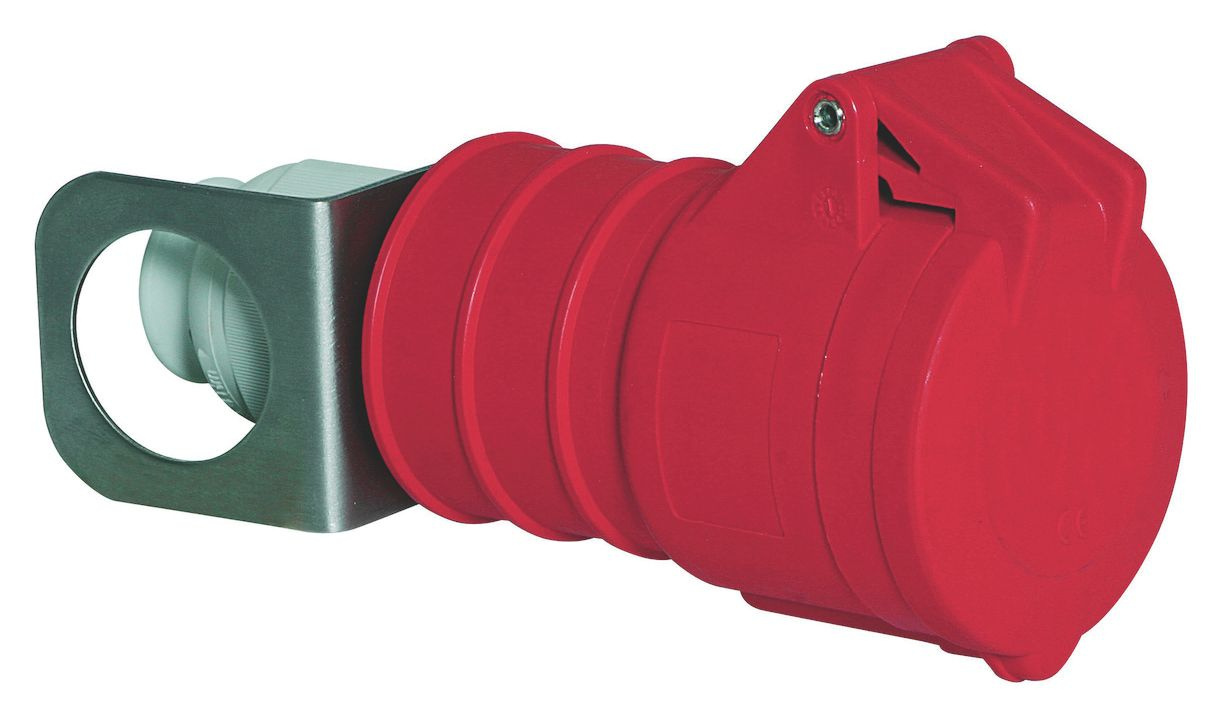

Bals 3221 CEE hanging coupling 32 A 5p 6h IP44 400 V
|
173,38 EUR |
|||||||||||
|
( 206,32 EUR incl. VAT ) ≈ £145.12 | ≈ $194.01 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 210305 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3221 | ||||||||||
| UPC/EAN: | 4024941032216 | ||||||||||
| Weight: | 0.391 kg | ||||||||||
| Type: | 3221 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 3221:
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: with cable gland
Device color: hinged lid red RAL 3000, housing red RAL 3000, cable gland gray RAL 7035
Device height: 212 mm, device width: 72 mm, device depth: 99 mm
Other technical properties: For cables with a min. diameter of 13mm to max. diameter of 27mm, with MULTI-GRIP TE Cable gland, integrated strain relief, additional water drainage openings and locking screw
| General | |
| IEC-amperage | 32 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Military model | |
Questions & answers
What is the delivery time of Bals 3221 CEE hanging coupling 32 A 5p 6h IP44 400 V?
The article Bals 3221 CEE hanging coupling 32 A 5p 6h IP44 400 V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 3221 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 3221 CEE hanging coupling 32 A 5p 6h IP44 400 V always at the best possible price. We can give you a discount of 2% on Bals 3221 CEE hanging coupling 32 A 5p 6h IP44 400 V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 3221 CEE hanging coupling 32 A 5p 6h IP44 400 V we can offer you a price of 164,28 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
