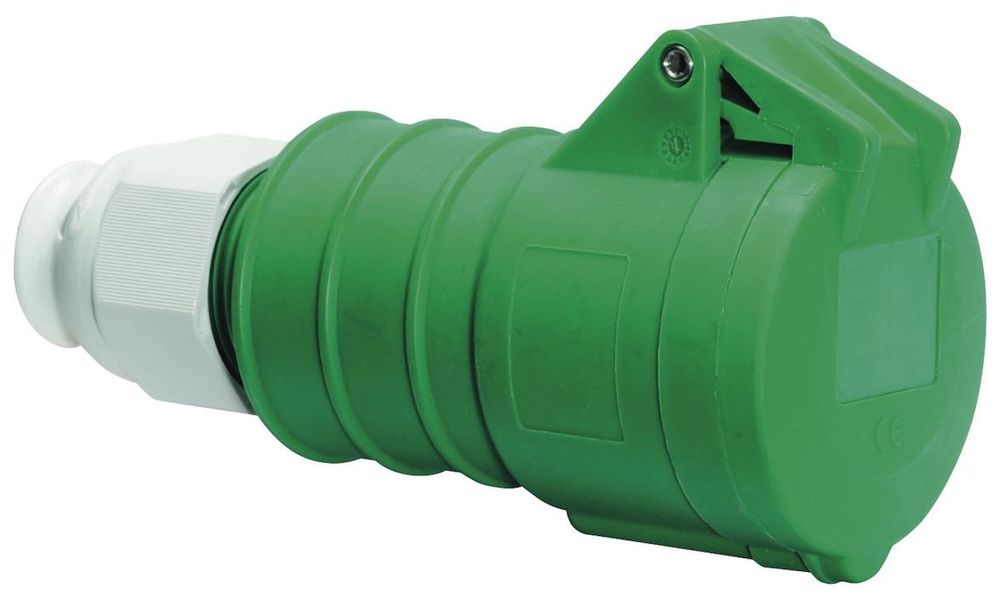

Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm

Your rating:
Average rating
Rating for Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm
( 0 / 5 ) 0 ratings
BALS 31983
This image may differ from the desired article.
173,75 EUR
( 206,76 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm
Lieske Part No.:461069
Mfg Part No: 31983
UPC/EAN: 4024941319836
Weight:0.12 kg

Product information for BALS 31983:

QUICK-CONNECT TE
32A 5p coupling (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 up to and including 300Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: with cable gland
Device color: hinged cover green RAL 6002, housing green RAL 6002, cable gland gray RAL 7035
Device height: 199 mm, device width: 72 mm, device depth: 99 mm
Other technical properties: For cables with a min. diameter of 13mm to max. diameter of 27mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 31983


Questions & answers

What is the delivery time of Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm?

The article Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 31983 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm always at the best possible price. We can give you a discount of 2% on Bals 31983 coupling QC TE 32A 5p >50V 100-300Hz 10h IP44 green 199x72x99mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
