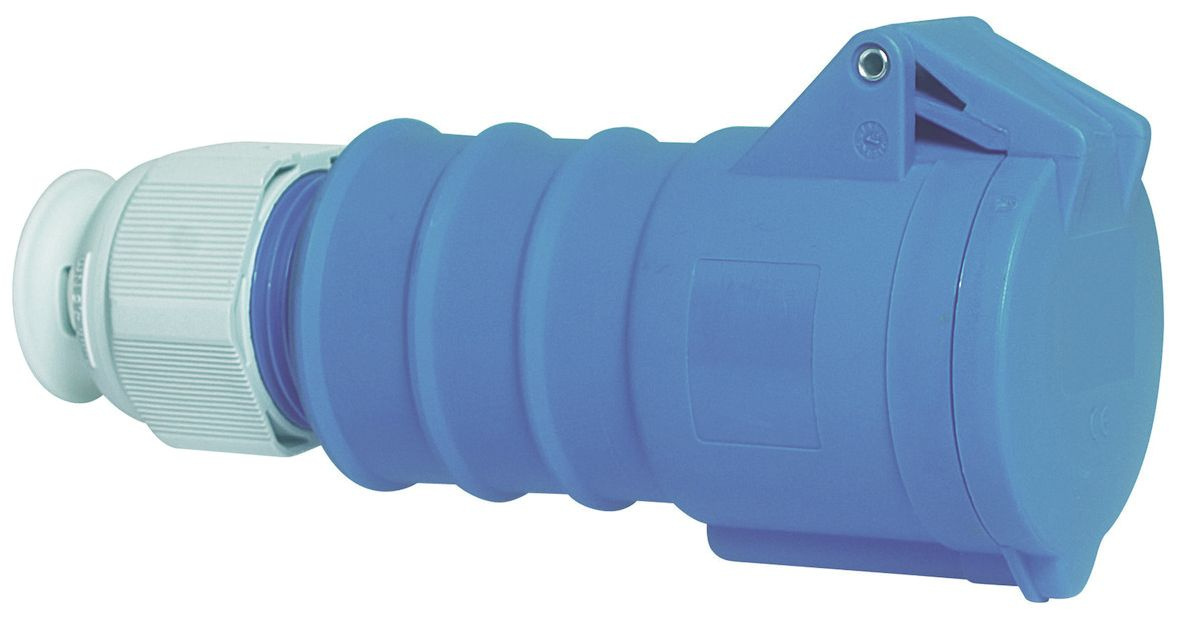

Bals 31968 coupling MULTI-GRIP TE+ 32 A 3-pole 230 V 6h IP44
|
141,36 EUR |
|||||||||||
|
( 168,22 EUR incl. VAT ) ≈ £118.32 | ≈ $158.18 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 166844 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 31968 | ||||||||||
| UPC/EAN: | 4024941319683 | ||||||||||
| Weight: | 0.263 kg | ||||||||||
| Type: | 31968 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 31968:
32A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: with cable gland
Device colour: housing blue RAL 5015, hinged cover blue RAL 5015, cable gland grey RAL 7035
Device height: 198 mm, device width: 66 mm, device depth: 91 mm
Other technical properties: For cables with a min. diameter of 11 mm to max. diameter of 23 mm, with MULTI-GRIP TE cable gland, integrated Strain relief, additional water drainage holes and locking screw
| General | |
| IEC-amperage | 32 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Clock hour position | 6 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Military model | |
Questions & answers
What is the delivery time of Bals 31968 coupling MULTI-GRIP TE+ 32 A 3-pole 230 V 6h IP44?
The article Bals 31968 coupling MULTI-GRIP TE+ 32 A 3-pole 230 V 6h IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 31968 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 31968 coupling MULTI-GRIP TE+ 32 A 3-pole 230 V 6h IP44 always at the best possible price. We can give you a discount of 2% on Bals 31968 coupling MULTI-GRIP TE+ 32 A 3-pole 230 V 6h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 31968 coupling MULTI-GRIP TE+ 32 A 3-pole 230 V 6h IP44 we can offer you a price of 133,94 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
