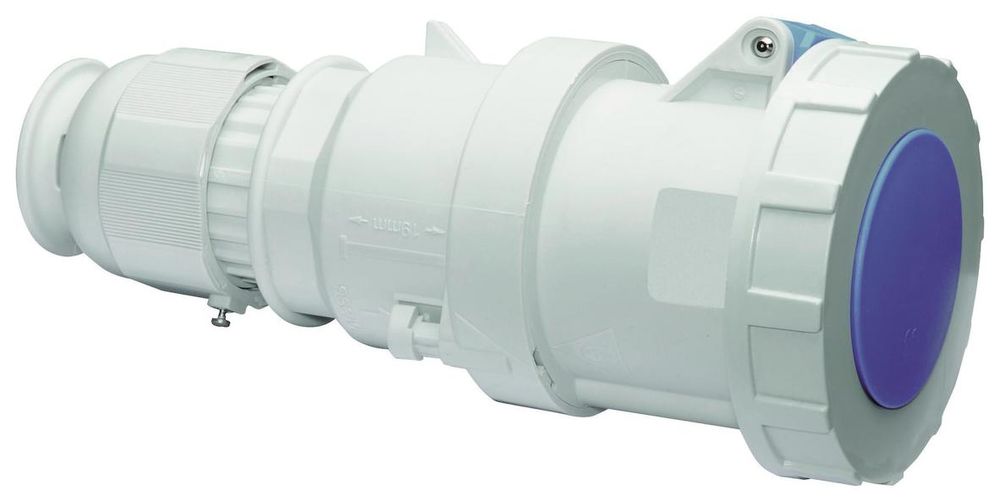

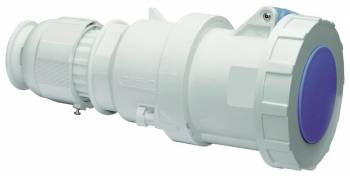

BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67
|
354,52 EUR |
|||||||||||
|
( 421,88 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 305750 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3188 | ||||||||||
| UPC/EAN: | 4024941031882 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 3188:
63A 5p (3P+N+PE) 230V (120/208 - 144/250V~) 9h IP67
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: with cable gland
Device colour: hinged cover blue RAL 5015, bayonet ring grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical properties: For cables with a min. diameter of 16mm to max. Diameter 36mm, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Questions & answers
What is the delivery time of BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67?
The article BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 3188 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67 always at the best possible price. We can give you a discount of 2% on BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67 we can offer you a price of 327,93 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of BALS 3188 TE coupling m.MULTI-GRIP, screw 63A 230V 5p 9h IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
