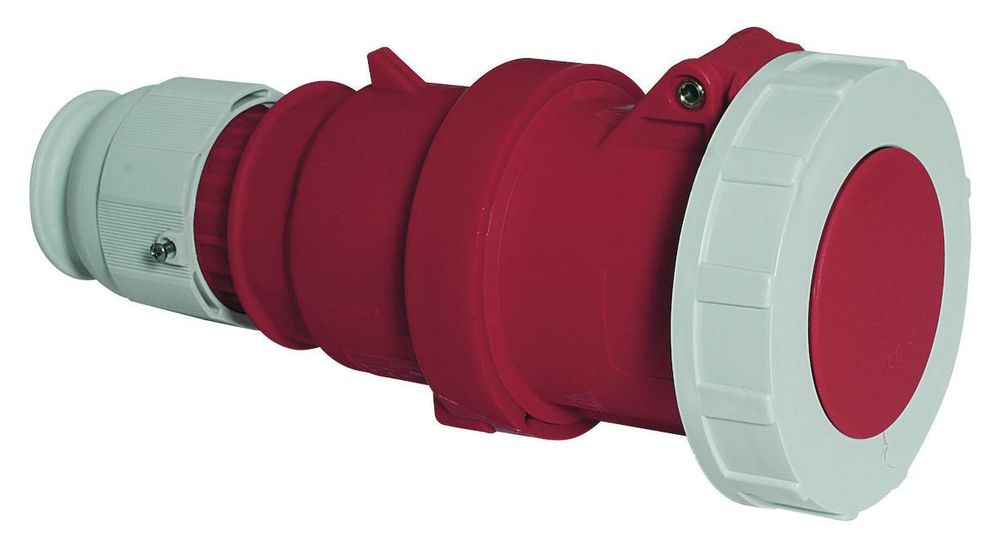

Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67

Your rating:
Average rating
Rating for Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67
( 4.5 / 5 ) 6 ratings
BALS 3185
This image may differ from the desired article.
286,90 EUR
( 341,41 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67
Lieske Part No.:268688
Mfg Part No: 3185
UPC/EAN: 4024941031851
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5265,38 EUR
10243,87 EUR
15222,35 EUR
20200,83 EUR

Product information for BALS 3185:

Coupling TE
63A 4p (3P+PE) 400V (380 - 415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: with cable gland
Device colour: housing cover red RAL 3000, collar red RAL 3000, hinged cover red RAL 3000, bayonet ring grey RAL 7035, cable gland grey RAL 7035
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, the connection of the Housing parts are screwless and are locked by a snap lock. Opening with a screwdriver is possible, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw


Questions & answers

What is the delivery time of Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67?

The article Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 3185 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67 always at the best possible price. We can give you a discount of 2% on Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67 we can offer you a price of 265,38 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals CEE coupling TC 3185, 63A 4p 6h 380-415V 50/60Hz IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
