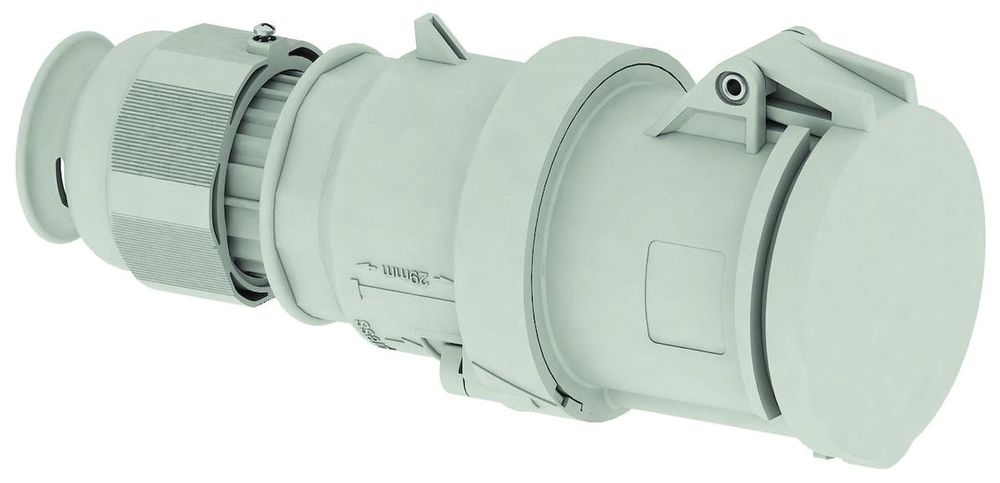

Bals 31627 coupling TE 63A 5p >50V 1h IP44 grey H/W/D:252x97x109mm
|
327,49 EUR |
|
|
( 389,71 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 466731 |
|---|---|
| Mfg Part No: | 31627 |
| UPC/EAN: | 4024941316279 |
| Weight: | 0.12 kg |
Product information for BALS 31627:
63A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: with cable gland
Device colour: hinged cover grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 252 mm, device width: 97 mm, device depth: 109 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 31627
Questions & answers
What is the delivery time of Bals 31627 coupling TE 63A 5p >50V 1h IP44 grey H/W/D:252x97x109mm?
The article Bals 31627 coupling TE 63A 5p >50V 1h IP44 grey H/W/D:252x97x109mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 31627 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 31627 coupling TE 63A 5p >50V 1h IP44 grey H/W/D:252x97x109mm always at the best possible price. We can give you a discount of 2% on Bals 31627 coupling TE 63A 5p >50V 1h IP44 grey H/W/D:252x97x109mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
