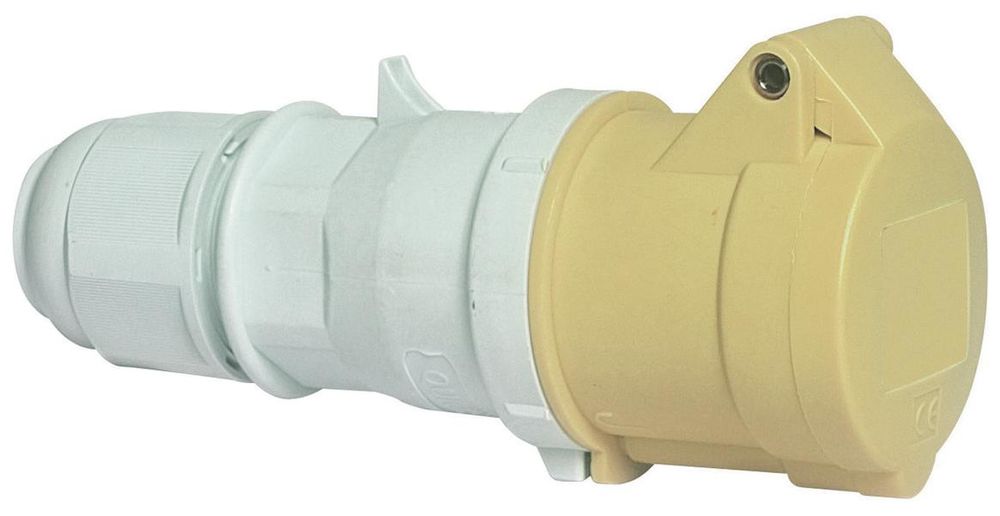

Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44
|
116,33 EUR |
|||||||||||
|
( 138,43 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 772080 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3125 | ||||||||||
| UPC/EAN: | 4024941031257 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 3125:
16A 3p (2P+PE) 110V (100 - 130V~) 4h IP44
Frequency: 50/60Hz
Technical identification colour: yellow RAL 1012
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: with cable gland
Device colour: collar yellow RAL 1012, hinged lid yellow RAL 1012, housing cover grey RAL 7035, cable gland grey RAL 7035
Device height: 149 mm, device width: 53 mm, device depth: 69 mm
Other technical properties: With MULTI-GRIP cable gland and integrated strain relief, the connection of the housing parts is screwless and is made by a snap lock locked. Can be opened using a screwdriver. For cables with a minimum diameter of 8mm to a maximum diameter of 18mm
Questions & answers
What is the delivery time of Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44?
The article Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 3125 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44 always at the best possible price. We can give you a discount of 2% on Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44 we can offer you a price of 107,61 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Bals clutch Quick-Connect 3125, 16A 3p 4h 100-130V 50/60Hz IP44 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
