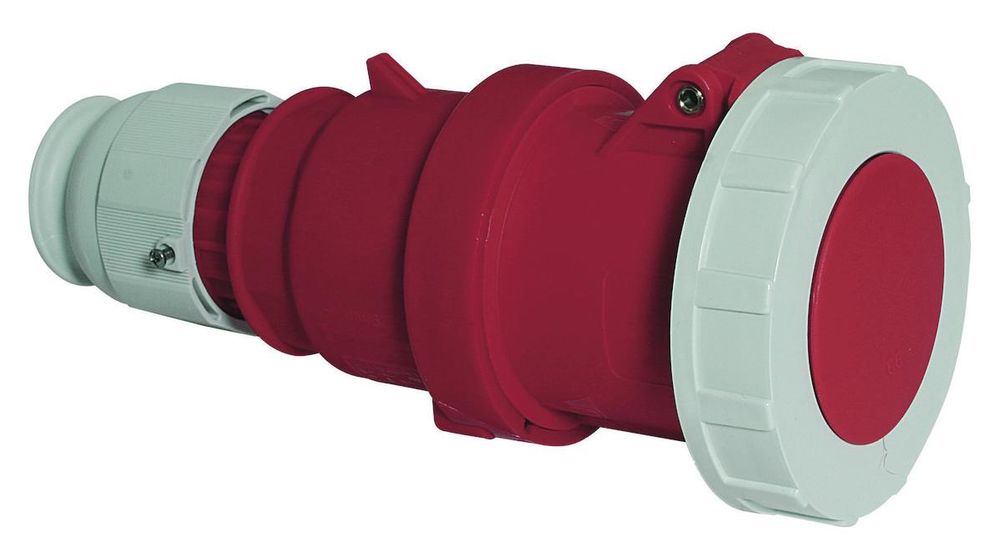

Bals CEE coupling TC 3124, 63A 5p 6h 200/346V-240/415V 50/60Hz IP67
|
308,94 EUR |
|||||||||||
|
( 367,64 EUR incl. VAT ) ≈ £264.76 | ≈ $350.96 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 128561 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3124 | ||||||||||
| UPC/EAN: | 4024941031240 | ||||||||||
| Weight: | 0.72 kg | ||||||||||
| Type: | 3124 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 3124:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: with cable gland
Device colour: operating slide grey RAL 7035, housing cover red RAL 3000, collar red RAL 3000, hinged cover red RAL 3000, bayonet ring grey RAL 7035, cable gland grey RAL 7035
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical properties: For cables with a minimum diameter of 16mm to a maximum diameter of 36mm. The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible. With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw.
Questions & answers
What is the delivery time of Bals CEE coupling TC 3124, 63A 5p 6h 200/346V-240/415V 50/60Hz IP67?
The article Bals CEE coupling TC 3124, 63A 5p 6h 200/346V-240/415V 50/60Hz IP67 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 3124 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals CEE coupling TC 3124, 63A 5p 6h 200/346V-240/415V 50/60Hz IP67 always at the best possible price. We can give you a discount of 2% on Bals CEE coupling TC 3124, 63A 5p 6h 200/346V-240/415V 50/60Hz IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Bals CEE coupling TC 3124, 63A 5p 6h 200/346V-240/415V 50/60Hz IP67 we can offer you a price of 264,92 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
