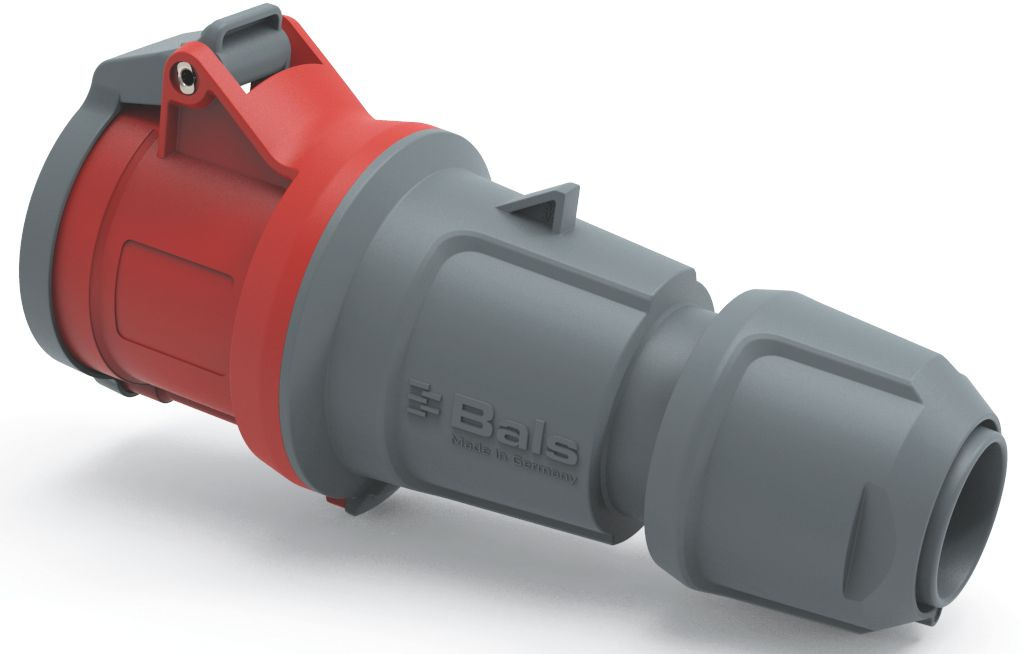

Bals 3118 coupling INNOLINQ QC 32A 4p 400V 6h IP54 red W x H x D: 205x80x99 mm
|
105,92 EUR |
|||||||||||
|
( 126,04 EUR incl. VAT ) ≈ £88.66 | ≈ $118.52 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 669168 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3118 | ||||||||||
| UPC/EAN: | 4024941347297 | ||||||||||
| Weight: | 0.312 kg | ||||||||||
| Type: | 3118 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 3118:
32A 4p (3P+PE) 400V (380 - 415V~) 6h IP54
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with KONTEX-ULTRA contact
Cable entry: with cable gland
Device colour: hinged cover dark grey RAL 7012, collar red RAL 3000, cable gland dark grey RAL 7012, housing cover dark grey RAL 7012
Device height: 205 mm, device width: 80 mm, device depth: 99 mm
Halogen-free: yes
Other technical properties: this product does not contain any lead, with MULTI-GRIP cable gland and integrated Strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, For cables with a min. diameter of 13mm to max. diameter of 29mm
| General | |
| IEC-amperage | 32 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP54 |
| Connection system | Screw less terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Military model | |
Questions & answers
What is the delivery time of Bals 3118 coupling INNOLINQ QC 32A 4p 400V 6h IP54 red W x H x D: 205x80x99 mm?
The article Bals 3118 coupling INNOLINQ QC 32A 4p 400V 6h IP54 red W x H x D: 205x80x99 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 3118 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 3118 coupling INNOLINQ QC 32A 4p 400V 6h IP54 red W x H x D: 205x80x99 mm always at the best possible price. We can give you a discount of 2% on Bals 3118 coupling INNOLINQ QC 32A 4p 400V 6h IP54 red W x H x D: 205x80x99 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 3118 coupling INNOLINQ QC 32A 4p 400V 6h IP54 red W x H x D: 205x80x99 mm we can offer you a price of 100,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
