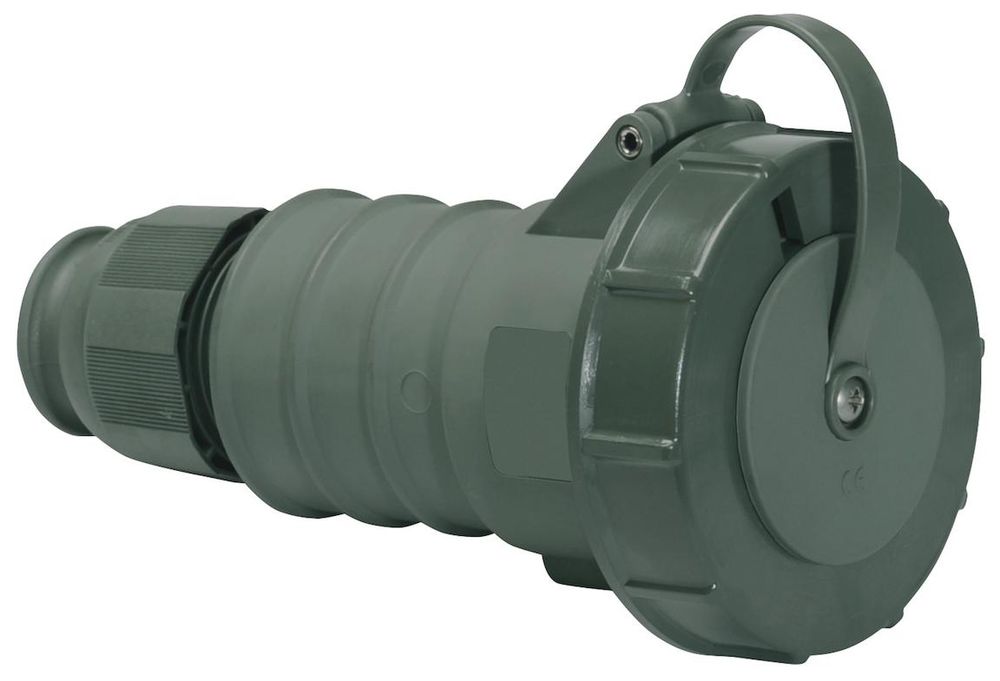

Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67

Your rating:
Average rating
Rating for Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67
( 4.8 / 5 ) 4 ratings
BALS 31162
This image may differ from the desired article.
172,95 EUR
( 205,81 EUR incl. VAT )
2025-10-09Delivery time on requestinfo_outline
1x Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67
Lieske Part No.:679995
Mfg Part No: 31162
UPC/EAN: 4024941311625
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
6162,57 EUR
12152,20 EUR
24141,82 EUR
36131,44 EUR

Product information for BALS 31162:

QUICK-CONNECT TE coupling version
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: with cable gland
Device colour: cable gland bronze green RAL 6031-F9, bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 162 mm, device width: 70.5 mm, device depth: 76 mm
Other technical properties: For cables with a Min. diameter from 8mm to max. diameter 18mm, With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw, The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 DS 017, supply no.: 5935-12-312-5516


Questions & answers

What is the delivery time of Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67?

The article Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 31162 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67 we can offer you a price of 162,57 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals 31162 coupling QUICK-CONNECT TN 16A 3p 230V 6h IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
