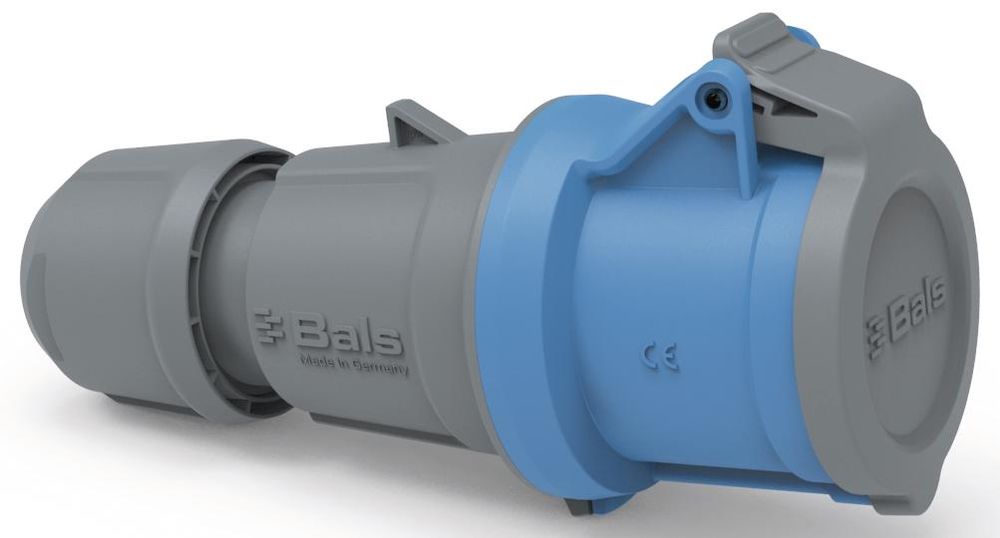

Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm

Your rating:
Average rating
Rating for Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm
( 0 / 5 ) 0 ratings
BALS 3114
This image may differ from the desired article.
101,08 EUR
( 120,29 EUR incl. VAT )
2025-10-10Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >10 pieces
1x Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm
Lieske Part No.:1101230
Mfg Part No: 3114
UPC/EAN: 4024941347129
Weight:0.12 kg

Product information for BALS 3114:

Coupling INNOLINQ QC
32A 3p (2P+PE) 230V (200 - 250V~) 6h IP54
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with KONTEX-ULTRA contact
Cable entry: with cable gland
Device colour: hinged cover dark grey RAL 7012, collar blue RAL 5015, cable gland dark grey RAL 7012, housing cover dark grey RAL 7012
Device height: 205 mm, device width: 80 mm, device depth: 99 mm
Halogen-free: yes
Other technical properties: this product does not contain any lead, with MULTI-GRIP cable gland and integrated Strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, For cables with a min. diameter of 13mm to max. diameter of 29mm
Type: 3114


Questions & answers

What is the delivery time of Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm?

The article Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 3114 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm always at the best possible price. We can give you a discount of 2% on Bals 3114 coupling INNOLINQ QC 32A 3p 230V 6h IP54 blue H/W/D: 205x80x99mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
