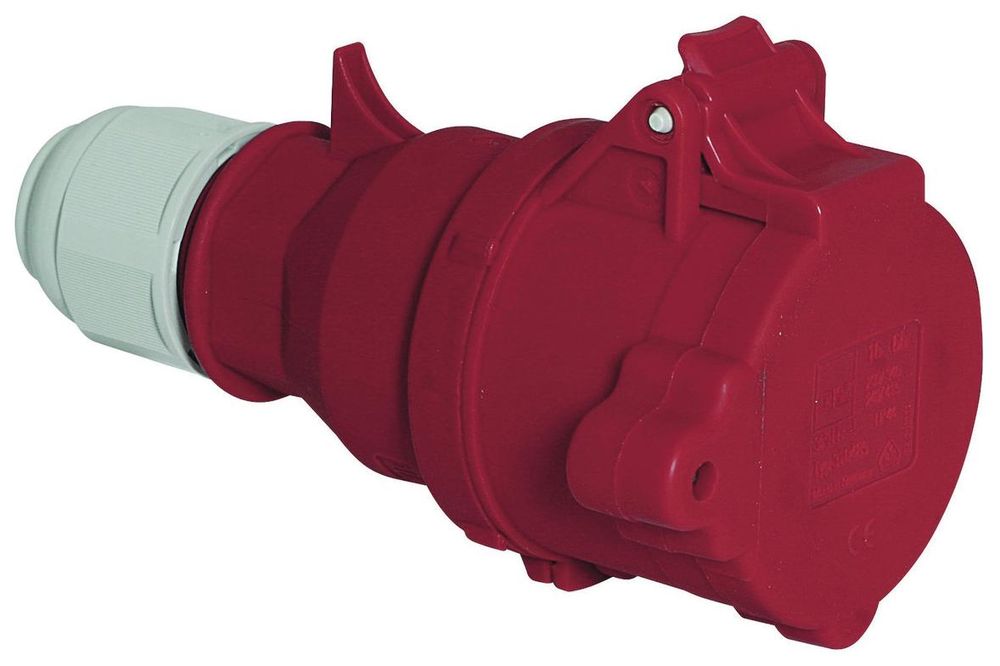

Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable

Your rating:
Average rating
Rating for Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable
( 4 / 5 ) 7 ratings
BALS 310634
This image may differ from the desired article.
114,84 EUR
( 136,66 EUR incl. VAT )
2025-10-09Delivery time on requestinfo_outline
1x Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable
Lieske Part No.:1323434
Mfg Part No: 310634
UPC/EAN: 4024941197533
Weight:0.12 kg

Product information for BALS 310634:

QUICK-CONNECT coupling
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: housing cover red RAL 3000, collar red RAL 3000, hinged cover red RAL 3000, cable gland grey RAL 7035
Device height: 155 mm, device width: 84 mm, device depth: 91 mm
Other technical properties: With MULTI-GRIP cable gland and integrated strain relief, the connection of the housing parts is screwless and is locked in place with a snap lock. It can be opened using a screwdriver. The coupling can be locked with the plug item no. 210950 and the U-lock item no. 580642. For cables with a minimum diameter of 8mm to a maximum diameter of 18mm.
Type: 310634


Questions & answers

What is the delivery time of Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable?

The article Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 310634 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable always at the best possible price. We can give you a discount of 2% on Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable if you choose payment in advance on ordering.

You can also send us a price proposal for your desired quantity of Bals 310634 Coupling 16 5 400 6H IP44 Ni QUICK-CONNECT Multi-Grip Lockable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
