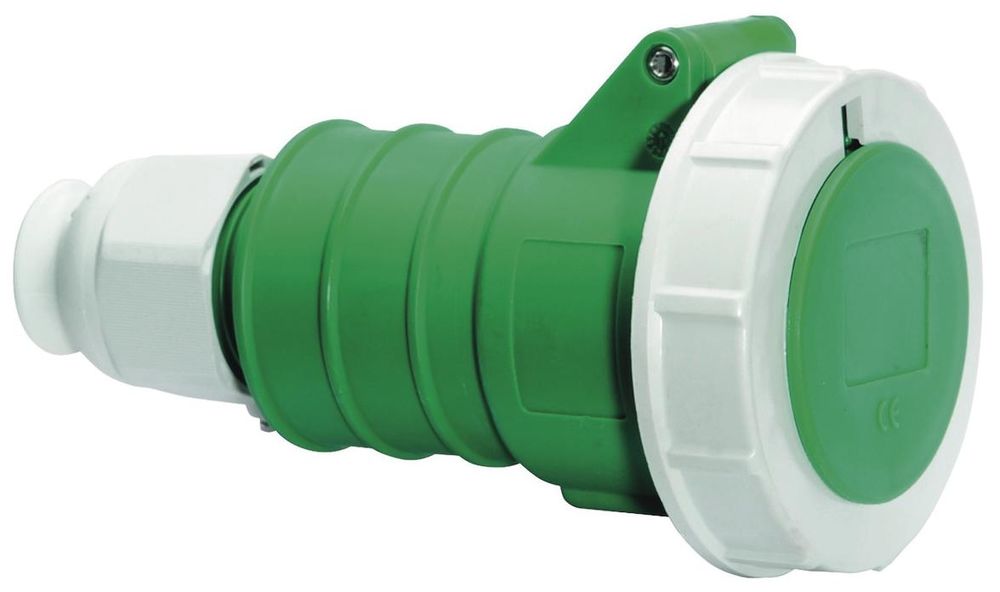

Bals 310415 coupling QC TE 32A 5p >50V >300-500Hz 2h IP67 green 196x101,5x106mm
|
268,39 EUR |
|
|
( 319,38 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 466947 |
|---|---|
| Mfg Part No: | 310415 |
| UPC/EAN: | 4024941197496 |
| Weight: | 0.12 kg |
Product information for BALS 310415:
32A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: over 300 up to and including 500Hz
Technical identification colour: green RAL 6002
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: with cable gland
Device colour: hinged cover green RAL 6002, housing green RAL 6002, bayonet ring grey RAL 7035, cable gland grey RAL 7035
Device height: 196 mm, device width: 101.5 mm, device depth: 106 mm
Other technical properties: For cables with a min. diameter of 13mm to max. diameter 27mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 310415
