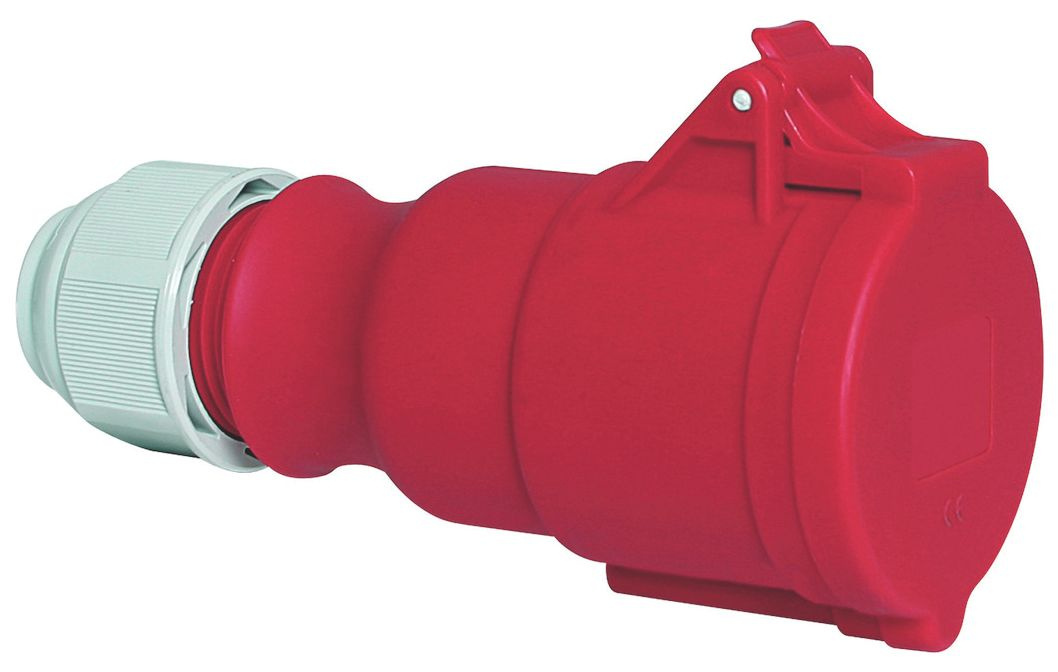

Bals 31005-TLS coupling Tls with Multi-Grip cable gland 16A 4P 400V 6H IP44
|
78,18 EUR |
|||||||||||
|
( 93,03 EUR incl. VAT ) ≈ £65.44 | ≈ $87.48 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 646681 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 31005-TLS | ||||||||||
| UPC/EAN: | 4024941192378 | ||||||||||
| Weight: | 0.174 kg | ||||||||||
| Type: | 31005-TLS | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 31005-TLS:
16A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: with screw
terminal Cable entry: with cable screw connection
Device colour: hinged cover red RAL 3000, housing red RAL 3000, cable screw connection grey RAL 7035
Device height: 149 mm, device width: 52 mm, device depth: 74 mm
Other technical properties: The housing is one-piece, with MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 8 mm to max. diameter of 18 mm
| General | |
| IEC-amperage | 16 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Angle of plug | Straight |
| Cable entry | Swivel |
| Material | Plastic |
| Military model | |
Questions & answers
What is the delivery time of Bals 31005-TLS coupling Tls with Multi-Grip cable gland 16A 4P 400V 6H IP44?
The article Bals 31005-TLS coupling Tls with Multi-Grip cable gland 16A 4P 400V 6H IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 31005-TLS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 31005-TLS coupling Tls with Multi-Grip cable gland 16A 4P 400V 6H IP44 always at the best possible price. We can give you a discount of 2% on Bals 31005-TLS coupling Tls with Multi-Grip cable gland 16A 4P 400V 6H IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bals 31005-TLS coupling Tls with Multi-Grip cable gland 16A 4P 400V 6H IP44 we can offer you a price of 74,08 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
