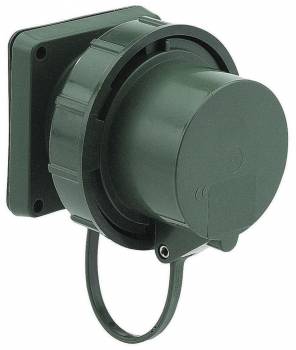

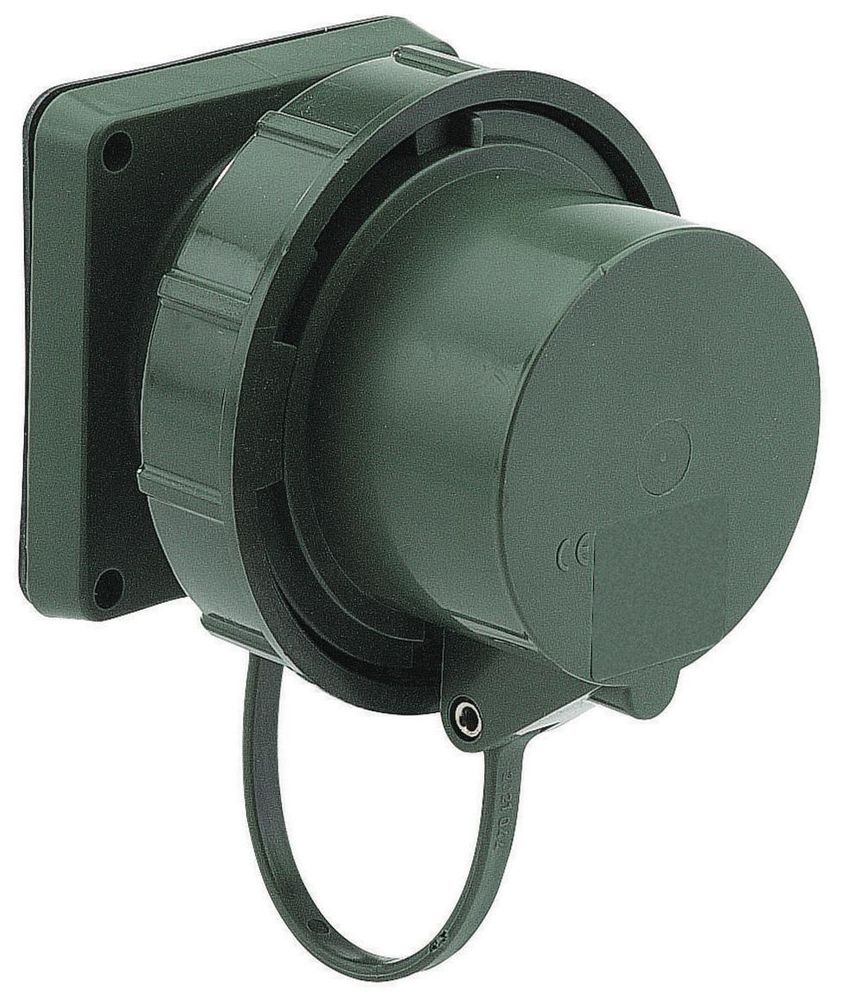

Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67

Your rating:
Average rating
Rating for Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67
( 0 / 5 ) 0 ratings
BALS 2892
This image may differ from the desired article.
248,19 EUR
( 295,35 EUR incl. VAT )
2025-10-09Delivery time on requestinfo_outline
1x Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67
Lieske Part No.:461083
Mfg Part No: 2892
UPC/EAN: 4024941028929
Weight:0.12 kg

Product information for BALS 2892:

Panel-mounted device plug, straight TN version
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, collar bronze green RAL 6031-F9, cover bronze green RAL 6031-F09, housing bronze green RAL 6031-F9
Device height: 85 mm, device width: 85 mm, device depth: 83 mm
Flange dimension vertical: 85 mm, flange dimension horizontal: 85 mm
Hole spacing vertical: 70 mm, hole spacing horizontal: 70 mm
Other technical features: With cover
VG type no.: VG 96919 AP 037
Type: 2892


Questions & answers

What is the delivery time of Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67?

The article Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 2892 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 2892 panel mount plug TN straight 16A 3p 230V 6h IP67 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
