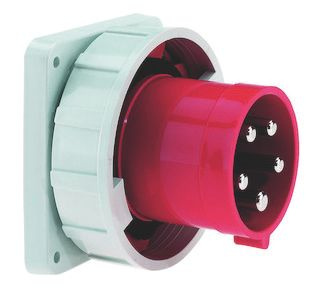

Bals 2876 flange device plug TE straight 125 A 5p 400 V 6h IP67
|
966,53 EUR |
|||||||||||
|
( 1.150,17 EUR incl. VAT ) ≈ £808.99 | ≈ $1,081.55 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 142745 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2876 | ||||||||||
| UPC/EAN: | 4024941028769 | ||||||||||
| Weight: | 1.11 kg | ||||||||||
| Type: | 2876 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 2876:
125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: other
Device colour: collar red RAL 3000, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 125 mm, device width: 125 mm, device depth: 143.5 mm
Flange dimension vertical: 120 mm, flange dimension horizontal: 120 mm
Hole spacing vertical: 100 mm, hole spacing horizontal: 100 mm
Other technical properties: collar in the Flange center
| General | |
| IEC-amperage | 125 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Connection system | Screwed terminal |
| Construction type | Built-up device plug |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 2876 flange device plug TE straight 125 A 5p 400 V 6h IP67?
The article Bals 2876 flange device plug TE straight 125 A 5p 400 V 6h IP67 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 2876 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 2876 flange device plug TE straight 125 A 5p 400 V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 2876 flange device plug TE straight 125 A 5p 400 V 6h IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Bals 2876 flange device plug TE straight 125 A 5p 400 V 6h IP67 we can offer you a price of 923,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
