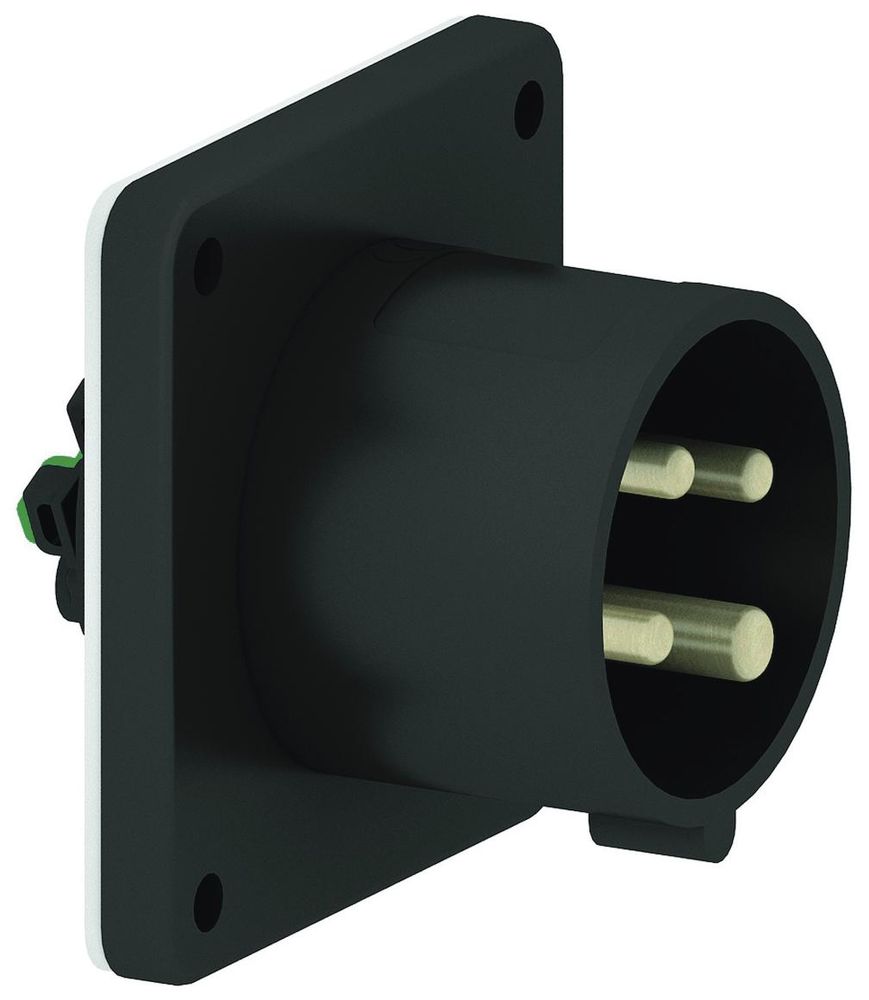

Bals 28004 flange device plug QUICK-CONNECT straight 16A 4p 500V 7h IP44
|
67,42 EUR |
|||||||||||
|
( 80,23 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 460224 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 28004 | ||||||||||
| UPC/EAN: | 4024941280044 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 28004:
16A 4p (3P+PE) 500V (480 - 500V~) 7h IP44
Frequency: 50/60Hz
Technical identification colour: black RAL 9005
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: other
Device colour: housing black RAL 9005
Device height: 75 mm, device width: 75 mm, device depth: 79 mm
Vertical flange size: 75 mm, horizontal flange size: 75 mm
Vertical hole spacing: 60 mm, horizontal hole spacing: 60 mm
Other technical properties: When using this device plug, a retaining lug must be provided, collar in the middle of the flange
Type: 28004
Questions & answers
What is the delivery time of Bals 28004 flange device plug QUICK-CONNECT straight 16A 4p 500V 7h IP44?
The article Bals 28004 flange device plug QUICK-CONNECT straight 16A 4p 500V 7h IP44 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 28004 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 28004 flange device plug QUICK-CONNECT straight 16A 4p 500V 7h IP44 always at the best possible price. We can give you a discount of 2% on Bals 28004 flange device plug QUICK-CONNECT straight 16A 4p 500V 7h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Bals 28004 flange device plug QUICK-CONNECT straight 16A 4p 500V 7h IP44 we can offer you a price of 62,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
