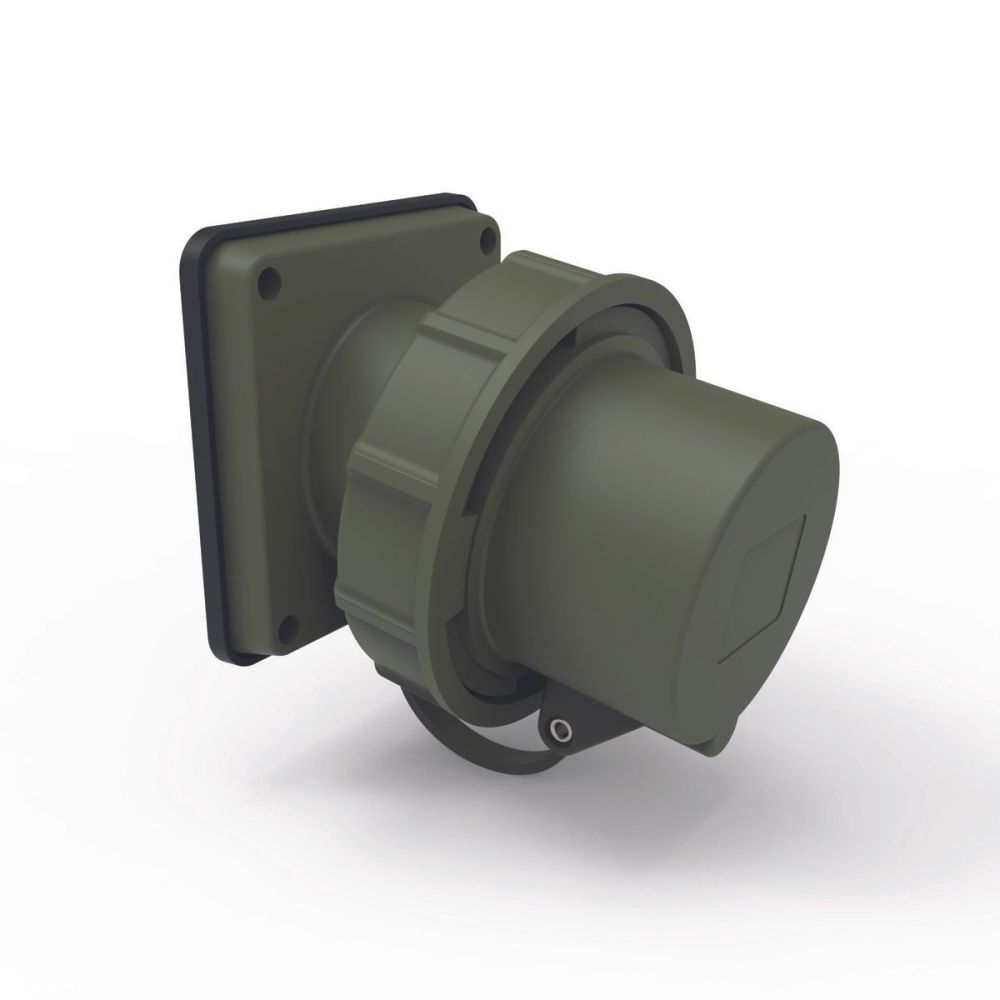

Bals 27201 mounting device plug TN with NG 32 A 4p 400 V 6h IP67
|
297,82 EUR |
|||||||||||
|
( 354,41 EUR incl. VAT ) ≈ £249.28 | ≈ $333.26 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 175580 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 27201 | ||||||||||
| UPC/EAN: | 4024941272018 | ||||||||||
| Weight: | 0.33 kg | ||||||||||
| Type: | 27201 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 27201:
32A 4p (3P+PE) 400V (380 - 415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, collar bronze green RAL 6031-F9, cover bronze green RAL 6031-F09, housing bronze green RAL 6031-F9
Device height: 104 mm, device width: 94 mm, device depth: 104 mm
Flange dimension vertical: 85 mm, flange dimension horizontal: 85 mm
Hole spacing vertical: 70 mm, hole spacing horizontal: 70 mm
Other technical features: The inclination is 10°, With cover
VG-Type-No: VG 96919 BP 023
| General | |
| IEC-amperage | 32 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 4 |
| Clock hour position | 6 |
| Identification colour | Green |
| Connection system | Screwed terminal |
| Construction type | Built-up device plug |
| Angle of plug | Angled |
| Material | Plastic |
| Phase inverter | |
| Military model | |
