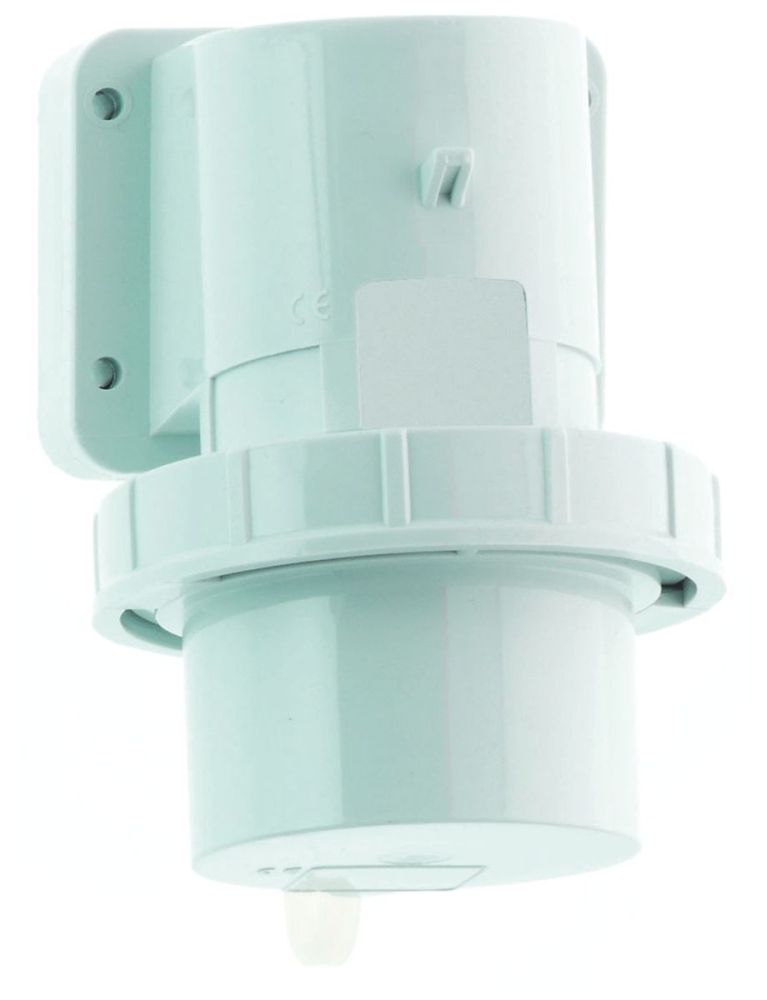

Bals 2648 panel-mount connector GT 16 A 5p 400 V 6h IP67
|
194,37 EUR |
|||||||||||
|
( 231,30 EUR incl. VAT ) ≈ £162.69 | ≈ $217.50 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 187514 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2648 | ||||||||||
| UPC/EAN: | 4024941026482 | ||||||||||
| Weight: | 0.308 kg | ||||||||||
| Type: | 2648 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 2648:
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: with screw terminal Cable entry
: other
Device colour: cover grey RAL 7035, collar red RAL 3000, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 138 mm, device width: 88 mm, device depth: 111 mm
Flange dimension vertical: 84 mm, flange dimension horizontal: 84 mm
Hole spacing vertical: 64 mm, hole spacing horizontal: 64 mm
Other technical properties: With cover
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Connection system | Screwed terminal |
| Construction type | Surface mounted plug |
| Angle of plug | Angled |
| Material | Plastic |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 2648 panel-mount connector GT 16 A 5p 400 V 6h IP67?
The article Bals 2648 panel-mount connector GT 16 A 5p 400 V 6h IP67 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 2648 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 2648 panel-mount connector GT 16 A 5p 400 V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 2648 panel-mount connector GT 16 A 5p 400 V 6h IP67 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 2648 panel-mount connector GT 16 A 5p 400 V 6h IP67 we can offer you a price of 184,17 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
