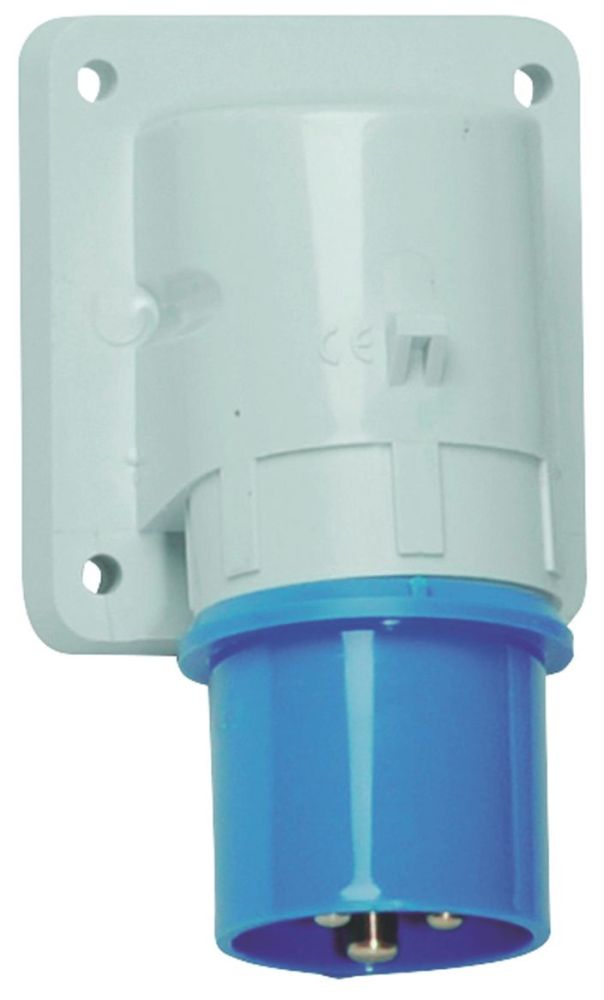

Bals 261 mounting device plug GT 16 A 3-pole 230 V 6h IP44
|
83,79 EUR |
|||||||||||
|
( 99,71 EUR incl. VAT ) ≈ £70.13 | ≈ $93.76 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 152089 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 261 | ||||||||||
| UPC/EAN: | 4024941002615 | ||||||||||
| Weight: | 0.14 kg | ||||||||||
| Type: | 261 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 261:
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: other
Device colour: collar blue RAL 5015, housing grey RAL 7035
Device height: 126 mm, device width: 74 mm, device depth: 71 mm
Flange dimension vertical: 84 mm, flange dimension horizontal: 74 mm
Hole spacing vertical: 64 mm, hole spacing horizontal: 58 mm
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Number of poles | 3 |
| Clock hour position | 6 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Construction type | Surface mounted plug |
| Angle of plug | Angled |
| Material | Plastic |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 261 mounting device plug GT 16 A 3-pole 230 V 6h IP44?
The article Bals 261 mounting device plug GT 16 A 3-pole 230 V 6h IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 261 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 261 mounting device plug GT 16 A 3-pole 230 V 6h IP44 always at the best possible price. We can give you a discount of 2% on Bals 261 mounting device plug GT 16 A 3-pole 230 V 6h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bals 261 mounting device plug GT 16 A 3-pole 230 V 6h IP44 we can offer you a price of 79,39 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
