Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz

Your rating:
Average rating
Rating for Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz
( 4.8 / 5 ) 4 ratings
BALS 26057

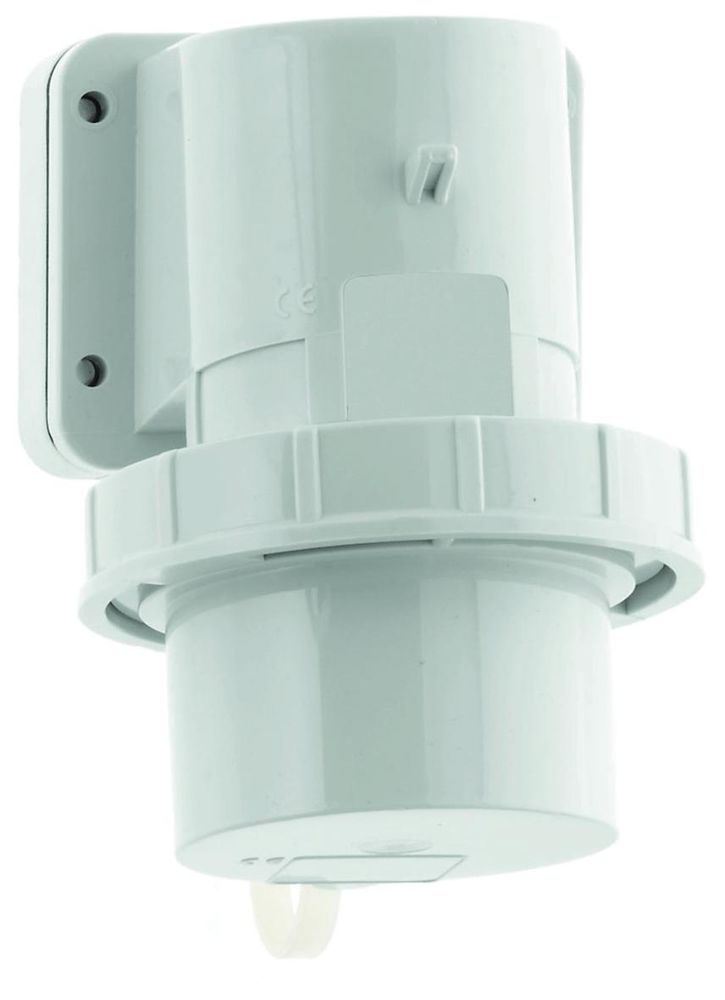

This image may differ from the desired article.
291,95 EUR
( 347,42 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz
Lieske Part No.:939127
Mfg Part No: 26057
UPC/EAN: 4024941260572
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5270,05 EUR
10248,16 EUR
15226,26 EUR
20204,37 EUR

Product information for BALS 26057:

Surface-mounted device plug QUICK-CONNECT TE
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: other
Device colour: cover grey RAL 7035, collar red RAL 3000, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 148 mm, device width: 100 mm, device depth: 123 mm
Flange dimension vertical: 75 mm, flange dimension horizontal: 90 mm
Drill hole spacing vertical: 45 mm, Horizontal hole spacing: 78 mm
Other technical features: With cover


Questions & answers

What is the delivery time of Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz?

The article Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 26057 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz always at the best possible price. We can give you a discount of 2% on Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz we can offer you a price of 270,05 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals mounted inlet red 26057 IP67, Quick-Connect TE 32A 5p 6h 50/60Hz via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
