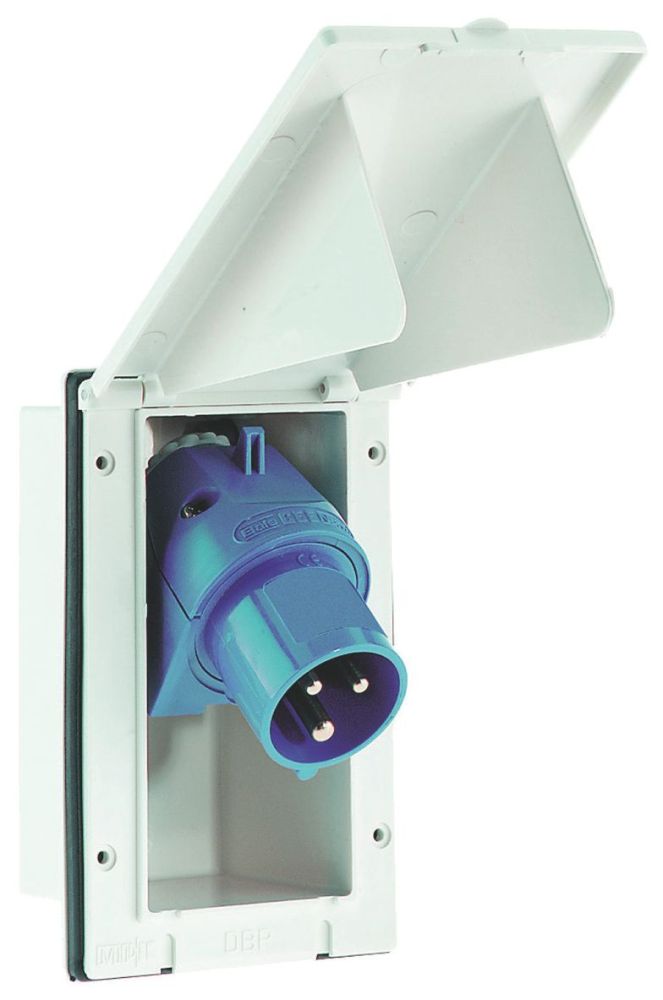

Bals 254 Caravaneinbaugerätestecker 16 A 3-pole 230 V 6h IP44 housing size: 163x102
|
139,27 EUR |
|||||||||||
|
( 165,73 EUR incl. VAT ) ≈ £116.57 | ≈ $155.84 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 639236 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 254 | ||||||||||
| UPC/EAN: | 4024941002547 | ||||||||||
| Weight: | 0.332 kg | ||||||||||
| Type: | 254 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 254:
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: white RAL 5015
Housing size: 163x102 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 2.5 mm²
Housing material: ABS
Connection technology: with screw terminal
Cable entry: up to diameter 13.5
Device colour: housing base blue RAL 5015, collar blue RAL 5015, housing cover blue RAL 5015
Device height: 170 mm, device width: 102 mm, device depth: 75 mm
Other technical properties: The fastening is 103x88 and the installation opening 135x70, the cable entry is open at the back, the housing is equipped with a rubber seal and a counter frame and thus suitable for intermediate installation, the device plug in the housing can be swivelled out
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Number of poles | 3 |
| Clock hour position | 6 |
| Identification colour | White |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Construction type | Recessed mount device plug |
| Angle of plug | Angled |
| Material | Plastic |
| Phase inverter | |
| Military model | |
