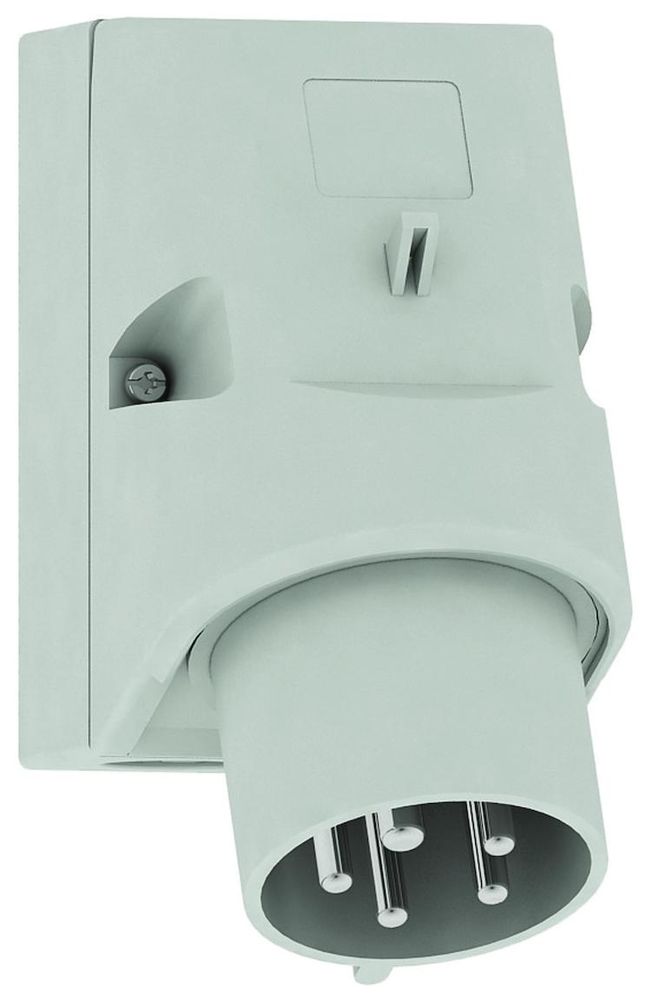

Bals 24627 Wall device plug 32A 5p 1h >50V IP44

Your rating:
Average rating
Rating for Bals 24627 Wall device plug 32A 5p 1h >50V IP44
( 0 / 5 ) 0 ratings
BALS 24627
This image may differ from the desired article.
210,38 EUR
( 250,35 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 24627 Wall device plug 32A 5p 1h >50V IP44
Lieske Part No.:468299
Mfg Part No: 24627
UPC/EAN: 4024941947572
Weight:0.12 kg

Product information for BALS 24627:

Wall device plug QUICK-CONNECT TE
32A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: lower housing part grey RAL 7035, upper housing part grey RAL 7035, collar grey RAL 7035
Device height: 166 mm, device width: 83 mm, Device depth: 130 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
Type: 24627


Questions & answers

What is the delivery time of Bals 24627 Wall device plug 32A 5p 1h >50V IP44?

The article Bals 24627 Wall device plug 32A 5p 1h >50V IP44 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 24627 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 24627 Wall device plug 32A 5p 1h >50V IP44 always at the best possible price. We can give you a discount of 2% on Bals 24627 Wall device plug 32A 5p 1h >50V IP44 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
