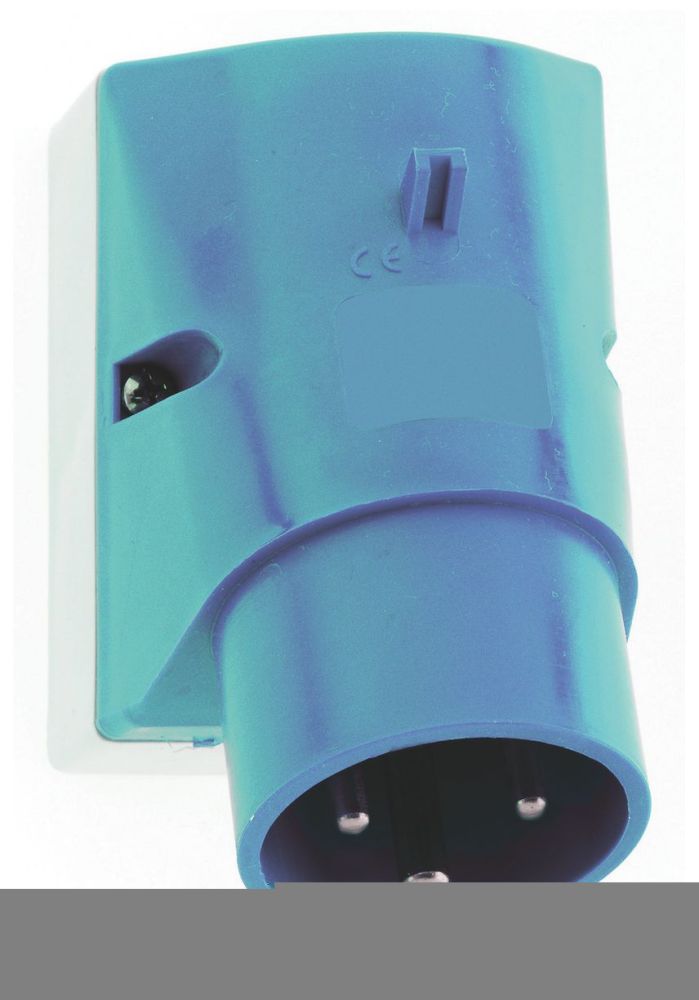

Bals 245 wall-mounted device plug GT 16 A 3-pole 230 V 6h IP44 housing size:87x64 content_copy

The Bals wall-mounted device plug type 245 is an industrial connector for use in electrical installations with a rated current of 16 A and a voltage of 230 V (50/60 Hz). It features a 3-pole configuration (2P+PE) and is designed according to standard EN 60309-2 as a CEE-form connector. The identification colour blue (RAL 5015) indicates the voltage class and ensures clear identification during operation. The protection rating IP44 provides protection against solid foreign objects and splashing water, making the plug suitable for use in indoor environments and slightly damp conditions.

Applications
This plug is designed for use in industrial and commercial installations, particularly in areas where a safe and reliable power supply for devices and machines is required. The wall-mounted device plug design allows for fixed mounting on walls or device enclosures, with the angled plug orientation ensuring compact placement and better strain relief for connected cables. The 6 o'clock position (6h) defines the contact positioning within the connector and is necessary for correct connection with compatible sockets.

Functions and Equipment in Detail
The plug features a screw clamp as the connection technology, enabling a secure and durable connection with electrical conductors. The maximum conductor cross-section is 2.5 mm², which is sufficient for most industrial applications. The contacts are made of bare brass, ensuring high electrical conductivity and corrosion resistance. The contact carrier is made of polyamide, a thermoplastic material with high thermal and mechanical load capacity.

Technology Explained Simply
The housing is made of polyamide and consists of two colour parts: the lower housing part is grey (RAL 7035), and the upper part is blue (RAL 5015). The overall dimensions of the device are a height of 122 mm, a width of 64 mm, and a depth of 93 mm. Cable entry is via an M20 socket connection at the top of the device. The cable entry options include one open at the top, one at the bottom, and one sealed at the rear, allowing for flexible mounting and wiring. The IP44 protection rating safeguards against contact with solid foreign objects larger than 1 mm and against splashing water from any direction, making the plug suitable for use in production halls, workshops, or other industrial environments.

Compatibility and Accessories
The plug is compatible with CEE-form sockets and plugs of the same current and voltage class. Suitable accessories include, for example, the wall-mounted device plug QC 16 A 3p 230 V 6h IP44 with housing size 90x72 mm, also intended for use in industrial installations. Using compatible sockets and accessories ensures a safe and standard-compliant connection.

Mounting and Installation
Mounting is done on a solid wall or device surface. The angled plug orientation facilitates placement and reduces mechanical stress on connected cables. The screw clamps allow for easy and secure fastening of the conductors. The cable entry at the top via M20 ensures a neat and impact-resistant connection. Mounting does not require special tools, but compliance with electrical safety regulations and correct wiring according to VDE standards is essential.

Advantages in Operation
The plug provides a robust and reliable power supply for industrial devices. The use of polyamide and bare brass ensures long service life and high operational safety. The IP44 protection rating safeguards against environmental influences, and the clear identification colour simplifies identification during operation. The angled plug orientation and flexible cable entry support compact and orderly installation in limited space.

General
IEC-amperage	16
Voltage acc. EN 60309-2	230 V (50+60 Hz) blue
Number of poles	3
Clock hour position	6
Identification colour	Blue
RAL-number	5015
Degree of protection (IP)	IP44
Connection system	Screwed terminal
Construction type	Other
Angle of plug	Angled
Material	Plastic
