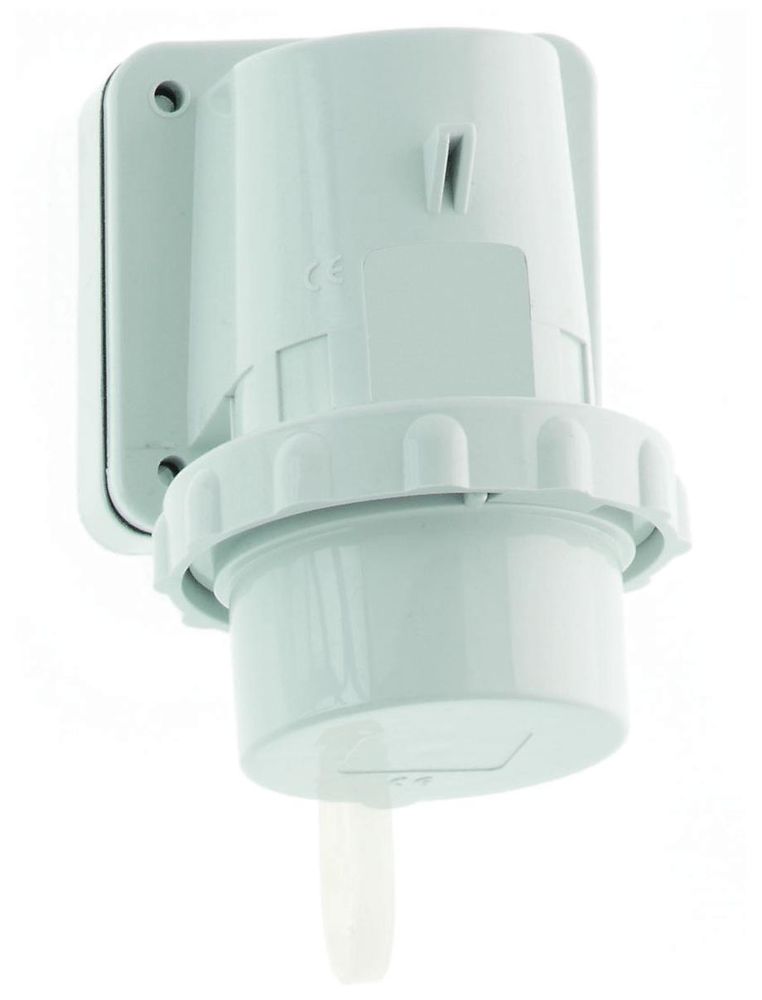

Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm

Your rating:
Average rating
Rating for Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm
( 0 / 5 ) 0 ratings
BALS 24258
This image may differ from the desired article.
253,84 EUR
( 302,07 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm
Lieske Part No.:460293
Mfg Part No: 24258
UPC/EAN: 4024941242585
Weight:0.12 kg

Product information for BALS 24258:

Wall device plug QUICK-CONNECT TE
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 84x84 mm
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: 1xM20 at the top
Device colour: Cover grey RAL 7035, collar red RAL 3000, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 138 mm, device width: 88 mm, device depth: 111 mm
Other technical features: The cable entry is open at the top and closed at the back, with cover
Type: 24258


Questions & answers

What is the delivery time of Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm?

The article Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 24258 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm always at the best possible price. We can give you a discount of 2% on Bals 24258 wall device plug QC TE 16A 5p 400V 6h IP67 red H/W/D:138x88x111mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
